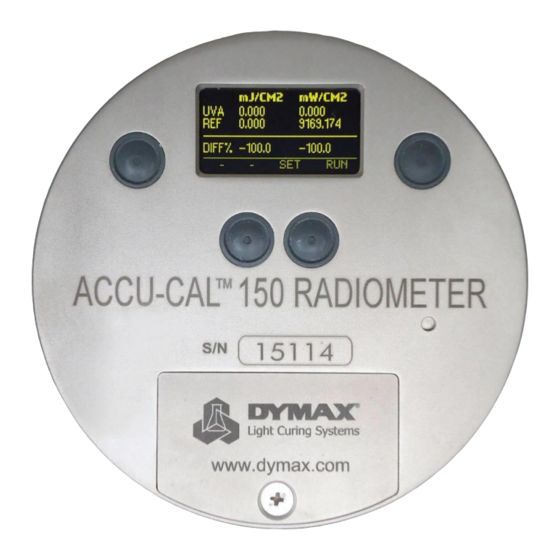

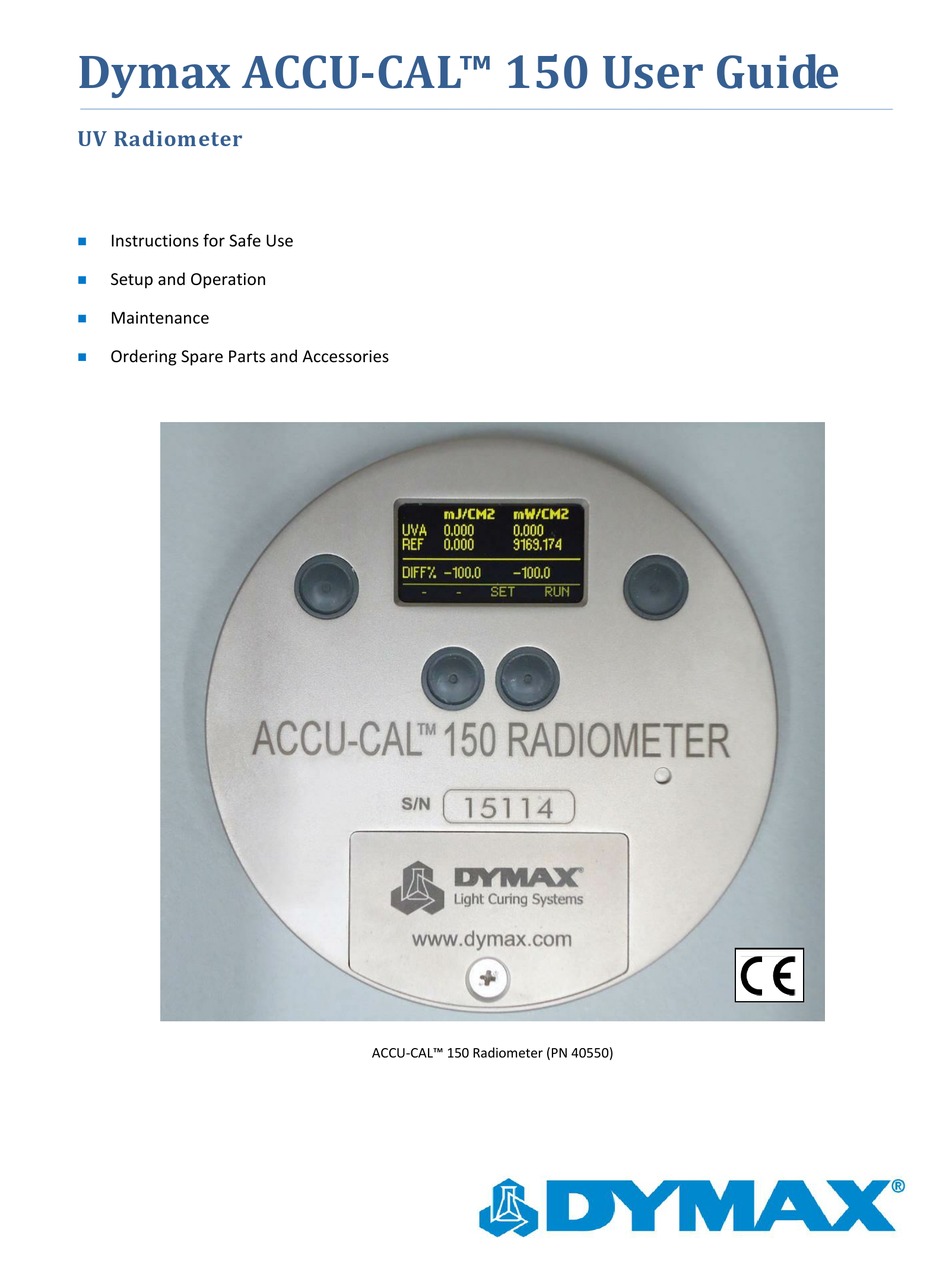

- Page 1 Dymax ACCU-CAL™ 150 User Guide UV Radiometer Instructions for Safe Use Setup and Operation Maintenance Ordering Spare Parts and Accessories ACCU-CAL™ 150 Radiometer (PN 40550)
- Page 2 System designs enable stand-alone configuration or integration into your existing assembly line. Please note that most dispensing and curing system applications are unique. Dymax does not warrant the fitness of the product for the intended application. Any warranty applicable to the product, its application and use is strictly limited to that contained in the Dymax standard Conditions of Sale.
-
Page 3: Table Of Contents
Dymax ACCU-CAL™ 150 Radiometer User Guide Contents Introduction ..............................4 General Safety ................................. 4 Safety ....................................5 Sécurité ................................... 5 Sicherheitshinweise ................................. 5 Product Overview ............................6 Description of the ACCU-CAL™ 150 Radiometer ......................6 Installation ..............................7 Unpacking and Inspecting Your Shipment ........................7 Parts Included in the ACCU-CAL™... -
Page 4: Introduction
Dymax ACCU-CAL™ 150 Radiometer User Guide Introduction The enclosed ACCU-CAL™ 150 Radiometer was developed and manufactured by the Dymax team, driven by a desire to best serve your needs. Before shipping, your ACCU-CAL™ 150 radiometer was calibrated and tested against standard UV light sources to ensure accurate performance. -
Page 5: Safety
Dymax ACCU-CAL™ 150 Radiometer User Guide Safety The ACCU-CAL™ 150 radiometer is designed to be used in conjunction with Dymax UV light-curing equipment that is properly set up, with components correctly connected, and operated in accordance with relevant instructions. Safety Recommendations When working with UV light sources, use the goggles provided or a face shield approved for UV protection ... -
Page 6: Product Overview
Product Overview Description of the ACCU-CAL™ 150 Radiometer The Dymax ACCU-CAL™ 150 UV Radiometer measures and displays the total UV energy and UV irradiance of a UV light-curing system. Its compact size and robust design withstands the extremes of UV light-curing environments while providing accurate measurement. -
Page 7: Installation
Open the box and check for equipment damage. If parts are damaged, notify the shipper and submit a claim for the damaged parts. Contact Dymax so that new parts can be shipped to you immediately. Check that the parts included in your order match those listed below. If parts are missing, contact your local Dymax representative or Dymax Customer Support to resolve the problem. -
Page 8: Operation
Dymax ACCU-CAL™ 150 Radiometer User Guide Operation Figure 2. ACCU-CAL™ 150 Radiometer Face Plate Display Window ON/OFF Button Depress and Hold until SETUP Mode Button screen is illuminated. RUN/EXIT Button Press to enter RUN Mode. Soft Button Operation Buttons perform the... -
Page 9: Setup And Default Modes
Dymax ACCU-CAL™ 150 Radiometer User Guide 5. Exiting RUN mode: A short press of the STOP button (Soft Button display bar indicates STOP next to the ON/OFF Button) will exit RUN mode and will return to the same default mode prior to making the exposure run, but will show the new value. -
Page 10: Explanation Of Settings
The ACCU-CAL™ 150 was designed to operate with minimal maintenance. Follow the schedule below to ensure top unit performance. Calibrate the instrument at least every six months. Calibration service is available through Dymax Customer Service or Dymax Product Repair. - Page 11 Customers are advised to obtain and read the MSDS for any chemical used for cleaning optics and for taking necessary precautions. Dymax makes no claim for the safety of any of these chemicals.
-
Page 12: Battery Replacement
Kimberly Clark, Inc.'s Kimwipes Dymax does not recommend wiping the optical surface with a dry wipe or swab of any kind. The absence of solvent greatly increases the chance for the optical surface to be abraded. -
Page 13: Diagnostics And Error Messages
*OR error are valid. Other Error Codes For all other error codes, please contact Dymax for assistance. Spare Parts and Accessories Radiometer Communications Software Kit (PN 40629) Installation and operating Instructions for ACCU-CAL™ 150 Radiometer Communication Software (USB PP2 V.2.00 ) - Page 14 Dymax ACCU-CAL™ 150 Radiometer User Guide Installing the Software Auto Run 1. Insert the Communication Software CD into your CD-Rom drive. 2. If AUTO RUN is set to ON for your CD drive, the program will begin loading automatically. Click on the FINISH and/or NEXT buttons until installation in complete.
- Page 15 Dymax ACCU-CAL™ 150 Radiometer User Guide New File - Data will be saved in a new file. The dialog box will start at the last folder where ACCU-CAL™ 150 data file was saved. The default is the current user’s My Documents folder.
-
Page 16: Specifications
Dymax ACCU-CAL™ 150 Radiometer User Guide Specifications Property Specification Display Easy-to-read yellow text on black background Range 10 Watt: UVA (320 – 390 nm) Accuracy +/- 10%; +/- 5% typical Spectral Response Approximately cosine Spectral Ranges 1-channel continuous monitoring; 320-390 nm (UVA) Operating Temperature 0-75°C internal temperature;... -
Page 17: Warranty
The manufacturers' liability under this warranty is limited to replacing or repairing the defective goods at our option. The manufacturer shall provide all materials and labor required to adjust, repair, and/or replace the defective goods at no cost to the buyer only if the defective goods are returned, freight prepaid, to Dymax during the warranty period. -
Page 18: Calibration And Repair Warranty
Dymax ACCU-CAL™ 150 Radiometer User Guide Calibration and Repair Warranty Dymax will warranty calibration and/or repair services just performed for 90 days. This Calibration and Repair Warranty does not apply to nor cover repairs that may otherwise occur to the instrument. Such repairs may... - Page 19 Dymax ACCU-CAL™ 150 Radiometer User Guide...
- Page 20 Please note that most dispensing and curing system applications are unique. Dymax does not warrant the fitness of the product for the intended application.
