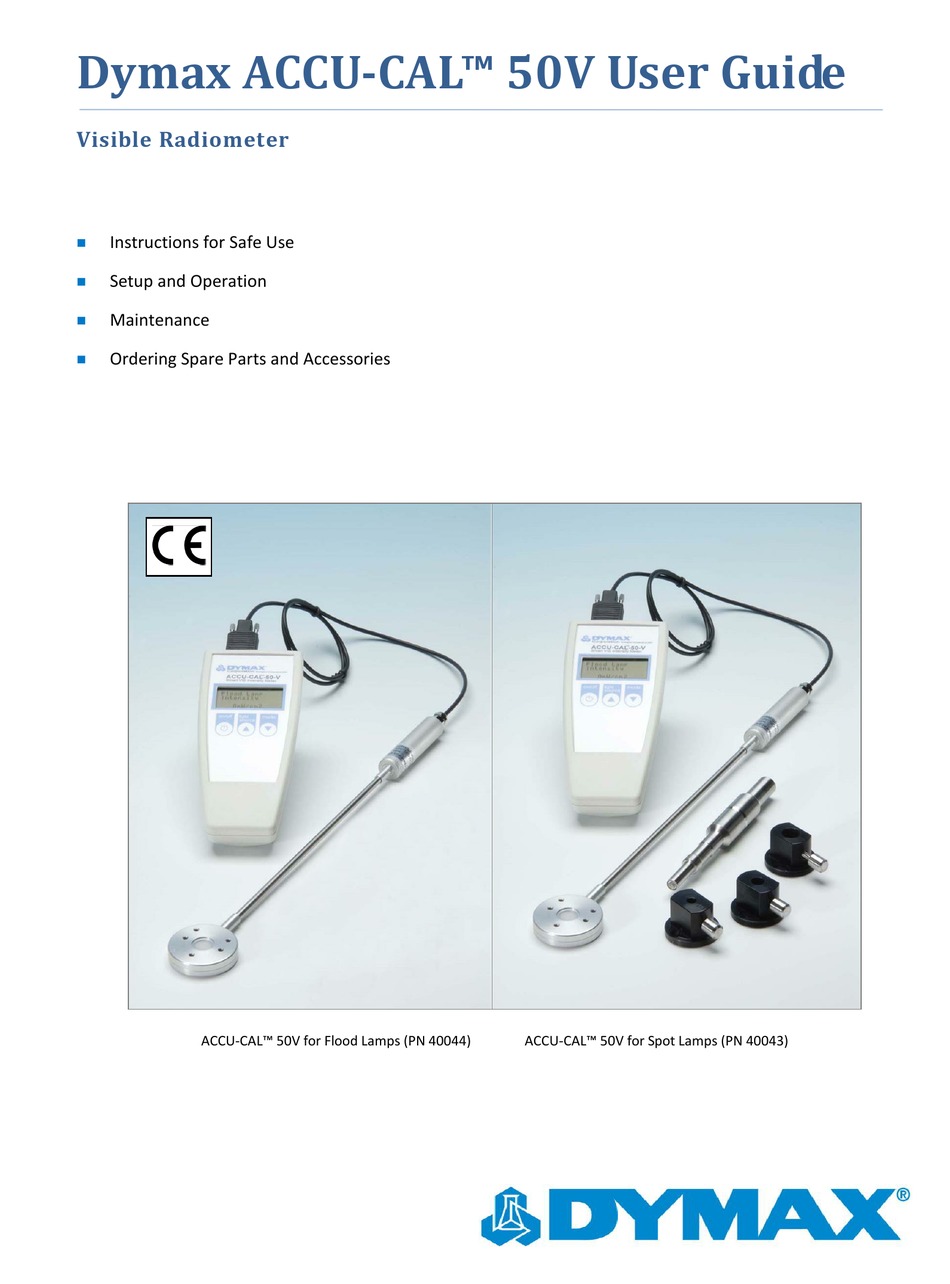

- Page 1 Dymax ACCU-CAL™ 50V User Guide Visible Radiometer Instructions for Safe Use Setup and Operation Maintenance Ordering Spare Parts and Accessories ACCU-CAL™ 50V for Flood Lamps (PN 40044) ACCU-CAL™ 50V for Spot Lamps (PN 40043)
- Page 2 System designs enable stand-alone configuration or integration into your existing assembly line. Please note that most dispensing and curing system applications are unique. Dymax does not warrant the fitness of the product for the intended application. Any warranty applicable to the product, its application and use is strictly limited to that contained in the Dymax standard Conditions of Sale.
-
Page 3: Table Of Contents
Dymax ACCU-CAL™ 50V Radiometer User Guide Contents Introduction ..............................4 General Safety ................................. 4 Safety ....................................5 Sécurité ................................... 5 Sicherheitshinweise ................................. 5 Product Overview ............................6 Description of the ACCU-CAL™ 50V Radiometer ......................6 Installation ..............................6 Unpacking and Inspecting Your Shipment ........................6 Parts Included for Spot Configuration .......................... -
Page 4: Introduction
Dymax ACCU-CAL™ 50V Radiometer User Guide Introduction The enclosed ACCU-CAL™ 50V visible radiometer was developed and manufactured by the Dymax team, driven by a desire to best serve your needs. Before shipping, your ACCU-CAL™ 50V visible radiometer was calibrated and tested against standard visible light sources to ensure accurate performance. -
Page 5: Safety
Bitte beachten Sie immer die Sicherheitshinweise! Safety The ACCU-CAL™ 50V visible radiometer is designed to be used in conjunction with Dymax UV/Visible light- curing equipment that is properly set up, with components correctly connected, and operated in accordance with relevant instructions. -
Page 6: Product Overview
Open the box and check for equipment damage. If parts are damaged, notify the shipper and submit a claim for the damaged parts. Contact Dymax so that new parts can be shipped to you immediately. Check that the parts included in your order match those listed below. If parts are missing, contact your local... -
Page 7: Parts Included For Spot Configuration
Dymax ACCU-CAL™ 50V Radiometer User Guide Figure 1. Model 40043 Visible Spot Figure 2. Model 40044 Visible Flood Radiometer Radiometer Parts Included for Spot Parts Included for Flood Configuration Configuration ACCU-CAL 50V Radiometer ACCU-CAL 50V Radiometer ACCU-CAL 50V Radiometer User Guide ACCU-CAL 50V Radiometer User Guide ... - Page 8 Dymax ACCU-CAL™ 50V Radiometer User Guide Figure 3. Radiometer with Detector Figure 4. Lightguide Adapters 3. Install the Lightguide Adapter on the end of the Detector using the two, 2 mm screws provided. Figure 5. Adapter Installation 4. Attach the Lightguide Adapter to the Spot Lamp Lightguide by inserting the Lightguide into the Lightguide Adapter until it bottoms out.
-
Page 9: Maintenance
The ACCU-CAL™ 50V was designed to operate with minimum maintenance. Follow the schedule below to assure top unit performance. • Calibrate the instrument at least annually. Calibration service is available through Dymax Customer Service or Dymax Product Repair. • Change the batteries when a low battery warning is received. The ACCU-CAL™ 50V uses two AA-type batteries. -
Page 10: Spare Parts And Accessories
Dymax ACCU-CAL™ 50V Radiometer User Guide Spare Parts and Accessories Spare Parts Item Part Number Adapter Kit – Flood to Spot Model (includes parts listed below) 39554 Lightguide Simulator 38408 8-mm Lightguide Adapter 39558 5-mm Lightguide Adapter 39557 3-mm Lightguide Adapter... -
Page 11: Warranty
ACCU-CAL™ 50V, except the batteries, with proof of purchase date. Unauthorized repair, modification, or improper use of equipment may void your warranty benefits. The use of aftermarket replacement parts not supplied or approved by Dymax Corporation will void any effective warranties and may result in damage to the equipment. - Page 12 Dymax’s standard Conditions of Sale. Dymax recommends that any intended application be evaluated and tested by the user to insure that desired performance criteria are satisfied. Dymax is willing to assist users in their performance testing and evaluation by offering equipment trial rental and leasing programs to assist in such testing and evaluations. Data sheets are available for valve controllers or pressure pots upon request.
