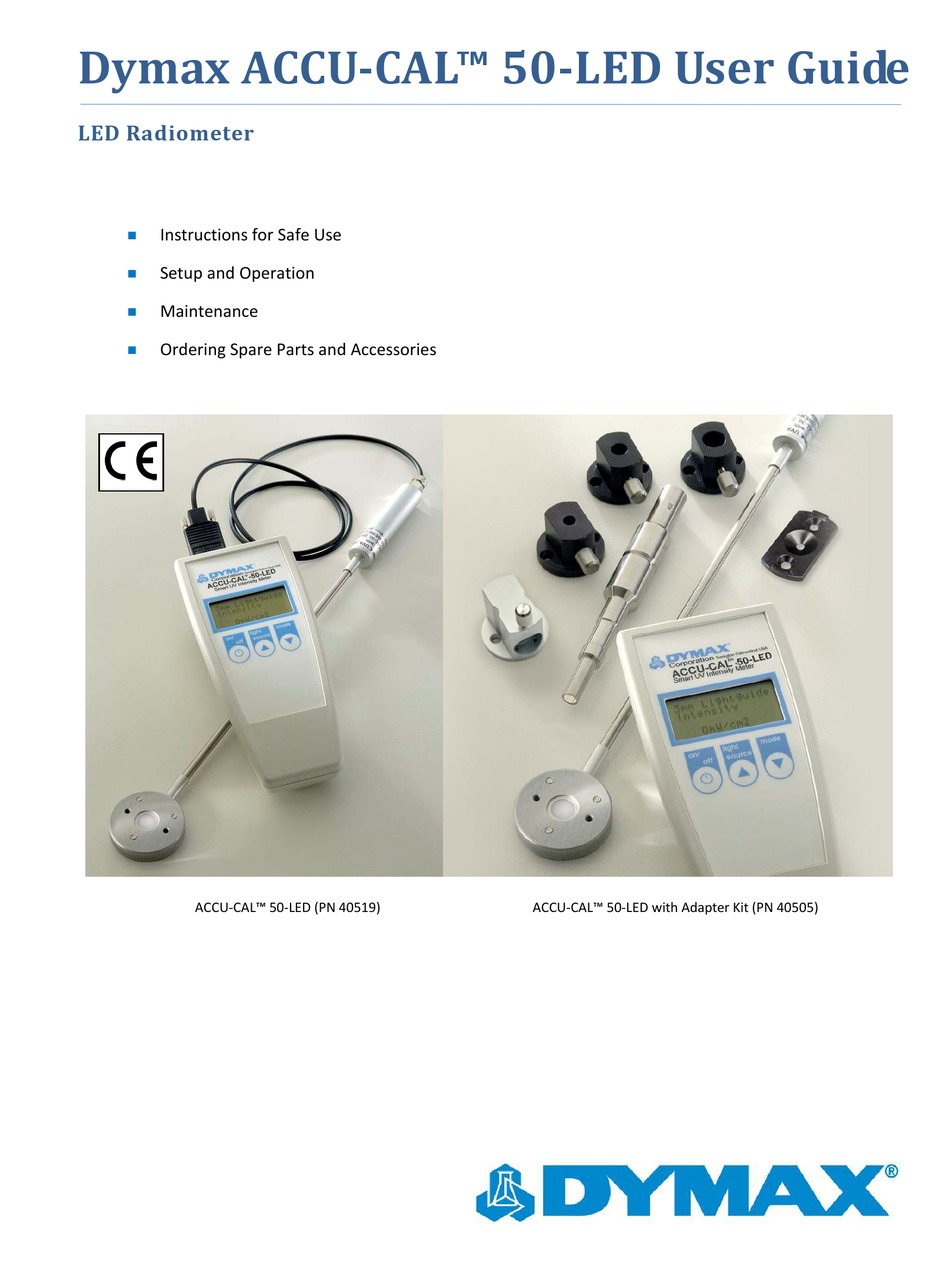

- Page 1 Dymax ACCU-CAL™ 50-LED User Guide LED Radiometer Instructions for Safe Use Setup and Operation Maintenance Ordering Spare Parts and Accessories ACCU-CAL™ 50-LED (PN 40519) ACCU-CAL™ 50-LED with Adapter Kit (PN 40505)
- Page 2 System designs enable stand-alone configuration or integration into your existing assembly line. Please note that most dispensing and curing system applications are unique. Dymax does not warrant the fitness of the product for the intended application. Any warranty applicable to the product, its application and use is strictly limited to that contained in the Dymax standard Conditions of Sale.
-
Page 3: Table Of Contents
Dymax ACCU-CAL™ 50-LED Radiometer User Guide Contents Introduction ..............................4 General Safety ................................. 5 Safety ....................................5 Sécurité ................................... 5 Sicherheitshinweise ................................. 6 Product Overview ............................6 Description of the ACCU-CAL™ 50-LED Radiometer ......................6 Installation ..............................7 Unpacking and Inspecting Your Shipment ........................7 Parts Included for Spot &... -
Page 4: Introduction
Dymax ACCU-CAL™ 50-LED Radiometer User Guide Introduction The enclosed ACCU-CAL™ 50-LED Radiometer was developed and manufactured by the Dymax team, driven by a desire to best serve your needs. Before shipping, your ACCU-CAL™ 50-LED Radiometer was calibrated and tested against standard LED light sources to ensure accurate performance. -
Page 5: General Safety
WARNHINWEIS! Bitte beachten Sie immer die Sicherheitshinweise! Safety The ACCU-CAL™ 50-LED Radiometer is designed to be used in conjunction with Dymax LED curing equipment that is properly set up, with components correctly connected, and operated in accordance with relevant instructions. -
Page 6: Sicherheitshinweise
Dymax ACCU-CAL™ 50-LED Radiometer User Guide Sicherheitshinweise Dieses Gerät wurde so entwickelt, dass es nur vollständig, alle Komponenten korrekt miteinander verbunden, in Übereinstimmung mit relevanten Instruktionen betrieben wird. Bei der Entwicklung wurde weiterhin großen Wert auf die Benutzersicherheit und minimale UV Belastung gelegt. -
Page 7: Installation
Open the box and check for equipment damage. If parts are damaged, notify the shipper and submit a claim for the damaged parts. Contact Dymax so that new parts can be shipped to you immediately. Check that the parts included in your order match those listed below. If parts are missing, contact your local... -
Page 8: Parts Included For Spot & Line Array Configuration
Dymax ACCU-CAL™ 50-LED Radiometer User Guide Figure 2. ACCU-CAL™ 50-LED Radiometer Figure 3. ACCU-CAL™ 50-LED Radiometer (PN 40505) for Spot, Line, & Flood Lamps (PN 40519) for Flood Lamps Only Parts Included for Spot & Line Array Parts Included for Flood... -
Page 9: Operation
Dymax ACCU-CAL™ 50-LED Radiometer User Guide Operation The ACCU-CAL™ 50-LED Radiometer may be used to measure intensity from LED-type flood, line array, or spot sources. Instructions for use with each system type are below. Testing a Flood Lamp System 1. Attach the detector to the radiometer (Figure 4). Do not attach any lightguide adapters to the detector. -
Page 10: Testing Spot Lamp Systems
Dymax ACCU-CAL™ 50-LED Radiometer User Guide Testing Spot Lamp Systems 1. Attach the detector to the radiometer (Figure 6). 2. Select the lightguide adapter that matches the size of the spot lamp’s lightguide. 3, 5, and 8-mm lightguide adapters are supplied with the radiometer. - Page 11 Dymax ACCU-CAL™ 50-LED Radiometer User Guide 3-mm Lightguide - For use when measuring energy at the end of a 3-mm lightguide. 5-mm Lightguide - For use when measuring energy at the end of a 5-mm lightguide. 8-mm Lightguide - For use when measuring energy at the end of an 8-mm lightguide.
-
Page 12: Testing A Line Array System
Dymax ACCU-CAL™ 50-LED Radiometer User Guide Testing a Line Array System 1. Attach the detector to the radiometer (Figure 11). 2. Select the line array adapter. Figure 10. Line Array Adapter 3. Install the line array adapter onto the detector face using the two 2-mm screws provided (Figure 12). - Page 13 Dymax ACCU-CAL™ 50-LED Radiometer User Guide 4. Press and release the On/Off button on the radiometer’s face plate to turn the unit on. 5. On the radiometer’s display, the top line displays the light source and the second line displays the mode.
- Page 14 Dymax ACCU-CAL™ 50-LED Radiometer User Guide Direct readings at 0 mm working distance for repeatable measurements: 1. With the adapter installed, align the radiometer sensor by nesting the emitter faceplate onto the adapter tabs to ensure precise engagement. Figure 14. Adapter Alignment 2.
-
Page 15: Testing The Bluewave ® Qx4
Dymax ACCU-CAL™ 50-LED Radiometer User Guide Testing the BlueWave ® ™ 1. Attach the detector to the radiometer (Figure 15). 2. Attach the BlueWave® QX4™ Optic Adapter to the detector (Figure 16) using the two 2-mm screws provided. Note: The Optical Adapter and Optometer are calibrated as a set, so they are not interchangeable among other similar type radiometers. - Page 16 Dymax ACCU-CAL™ 50-LED Radiometer User Guide 6. Press and release the Light Source button to select the light source being measured. For the BlueWave® QX4™, use the “spot” setting. Repeatedly press the Light Source button until the correct focus lens size appears on the top line.
-
Page 17: Maintenance
Maintenance The ACCU-CAL™ 50-LED was designed to operate with minimum maintenance. Follow the schedule below to assure top unit performance. Calibrate the instrument at least annually. Calibration service is available through Dymax Customer Service or Dymax Product Repair. Change the batteries when a low battery warning is received. The ACCU-CAL™ 50-LED uses two AA-type ... -
Page 18: Specifications
Dymax ACCU-CAL™ 50-LED Radiometer User Guide Specifications Property Specification Power Two AA size batteries LCD Graphic Display 97x 32 Pixel Display Display area: 0.56 in x 1.41 in (14.3 mm x 35.8 mm) Spectral Range 350-450 nm Detector Interface 9-Pin MDSM9 socket, 4 inputs... - Page 19 Unauthorized repair, modification, or improper use of equipment may void your warranty benefits. The use of aftermarket replacement parts not supplied or approved by Dymax Corporation will void any effective warranties and may result in damage to the equipment.
- Page 20 Please note that most dispensing and curing system applications are unique. Dymax does not warrant the fitness of the product for the intended application. Any warranty applicable to the product, its application and use is strictly limited to that contained in Dymax’s standard Conditions of Sale published on our website. Dymax recommends that any intended application be evaluated and tested by the user to insure that desired performance criteria are satisfied.
