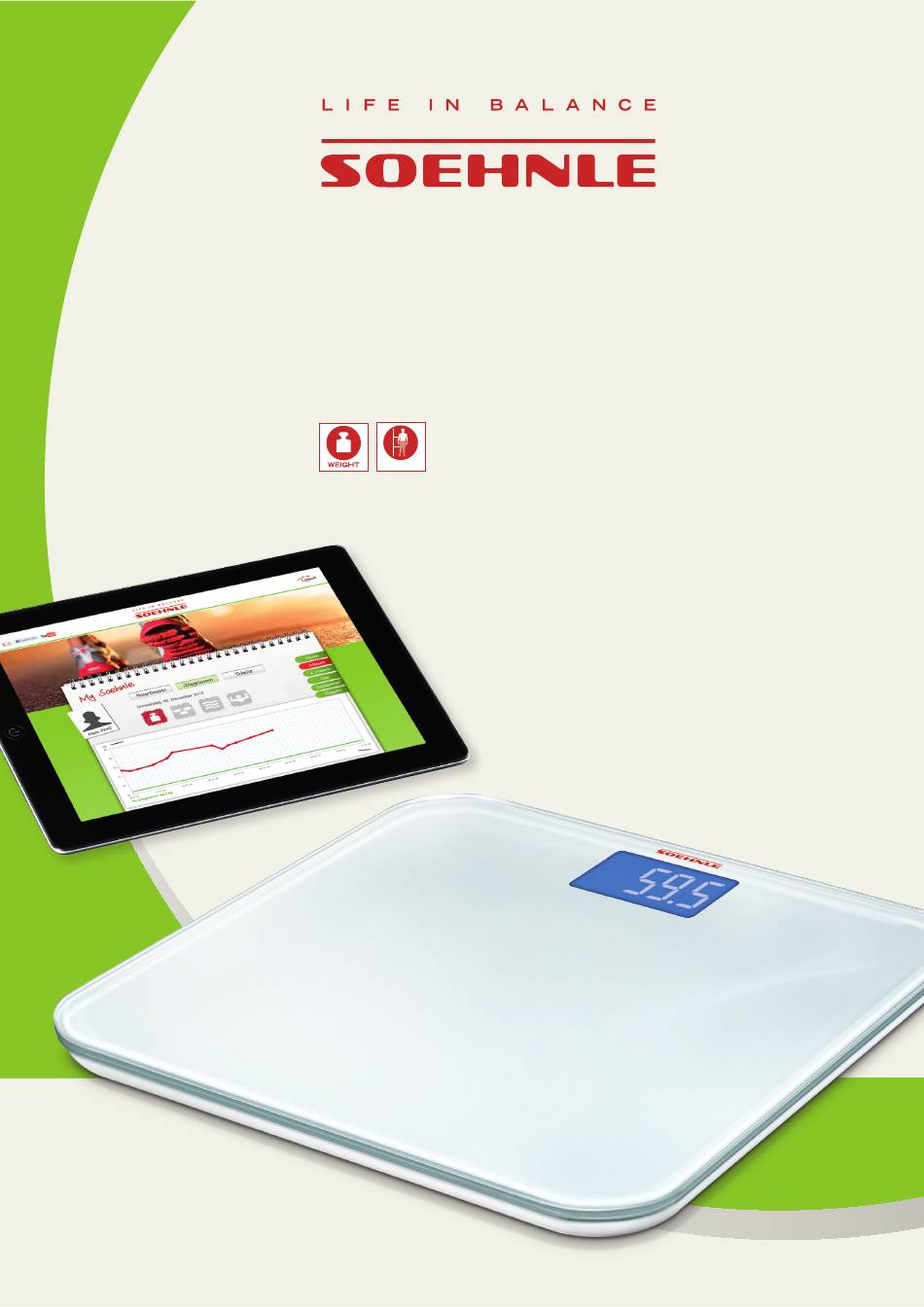

- Page 1 WEB CONNECT Manual...
-
Page 2: Table Of Contents
Content Introduction Proper use Safety information The body mass index (BMI) Rules for weighing Start-up operation Description of the device System requirements Installation Insert or replace batteries Activate connection between web box and scale Messages 2.7 Configure IP setting manually Setting up the user account 2.9 Entering personal data I Unit of measurement (kg-lb-st) I Target weight Weighing... -
Page 3: Introduction
1.1 Proper use With Soehnle Web Connect you will always have your body weight and BMI at a glance. Whether at home on the PC or while on the go using your pad or smartphone - with the personal account on the web you are always up to date. - Page 4 Warning • Consult a physician or a dietician before reducing your weight. • Keep the device away from small children. • Support physically handicapped persons in the use of this device. • Always step onto the intended location of the device and never on the edges and corners; always stand still during the analysis.
-
Page 5: The Body Mass Index (Bmi)
1.3 The body mass index (BMI) The foundation of this calculation is the body mass index - an index number that can be used to interpret body weight in terms of the risk it poses to your health. The index number is calculated based on the body weight in kilogram, divided by the body height squared 75 kg (example: BMI = = 24,5) 1,75 m x 1,75 m Classification of the body weight based on BMI (Source: World health organization, 2000) BMI (kg/m²) -
Page 6: Start-Up Operation

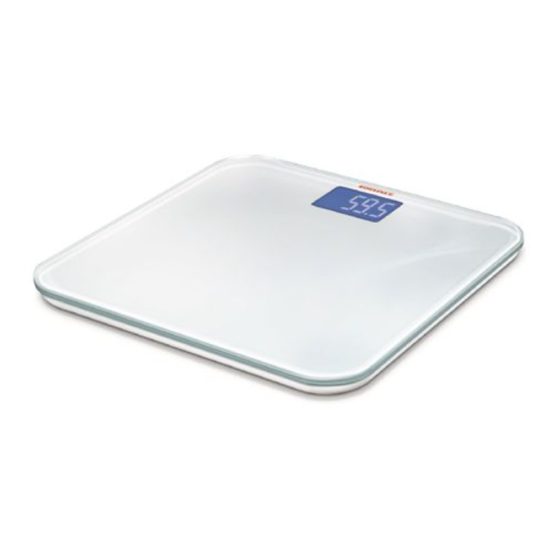

2. Start-up operation 2.1 Description of the device Scale À Â Ã Ä Á Å Web Box Æ Ç È 1. Display 14. Power supply socket 2. Weighing platform 15. Reset key 16. Broadband interface 3. Activation key 17. Internet connection indicator 4. Battery cover 18. Network connection indicator 5. -
Page 7: System Requirements
2.2 System requirements 1. Broadband router with one free LAN port (10 Mbit/s) and internet access 2. Internet-capable device (e.g. smartphone, tablet or PC/MAC) with web browser of the newest generation. No software or app installation required. 3. Valid email address for registration on the portal. 2.3 Installation 1. -
Page 8: Activate Connection Between Web Box And Scale
2.5 Activate connection between web box and scale The distance between the web box and the scale should not exceed 20 cm during activation. Push the button on the back of the scale to start activation. Activation was successful if [ ] is displayed. However, if the scale displays E8, activation failed. 2.6 Messages Problem Cause... -
Page 9: Configure Ip Setting Manually
2.7 Configure IP setting manually In rare cases it might be necessary to configure IP addresses manually. This might be the case if the DHCP* function is deactivated on the router. If this is the case, please continue as follows: 1. T he web box must be switched on (both LEDs are flashing). 2. Push the reset key and hold it for approx. 5 seconds. Both LEDs will light up simultaneously. When both LEDs begin to flash, release the key. 3. Then connect web box and PC using the network cable. 4. A ccess the network connections via Start => Control panel => Network connections. -
Page 10: Setting Up The User Account
2.8 Setting up the user account 1. Visit the website “my.soehnle.com/new” 2. Select the desired language. 3. Go to ”Registration” and enter your user name and your personal email address. Note: The scale can be used by up to 8 persons. Each user must have its own email address. 4. Continue with ”Send”. -
Page 11: Entering Personal Data I Unit Of Measurement (Kg-Lb-St) I Target Weight
2.9 Entering personal data More personal data must be entered to finish setting up the user account. This data is absolutely necessary for interpretation of the measurement data. 1. Select language 2. Enter gender 3. Enter the name with which you would like to be addressed 4. Set up birthdate 5. Enter body height 6. Select activity level 7. Select desired unit of measurement for display (kg-lb-st) 8. Enter target weight 9. The user name can be changed here 10. If the password is to be changed, this can be entered here 11. Email address can be changed here 12. Confirm entries with ”Save”... -
Page 12: Weighing
3. Weighing For concise results, please step onto the platform without any clothing and under the same conditions (time, food consumption, etc.). Note: An internet connection must be available if the data is to be transmitted to your personal account. Only the weight will be displayed if no internet connection is available. -
Page 13: The Personal Account
4. The personal account 4.1 The main menu 1. Go to my.soehnle.com, enter your user name and your password and tap on ”Login”. 2. You will be in the main menu. The values that were determined last and the difference to your desired weight will be displayed. -
Page 14: Tabular Display
4.3 Tabular display Go to ”Table”. S elect the period for review (week, month, 6 months, year, or customized via ”Filter data”) for which the values are to be displayed. If you tap on next to an individual value, you can edit this data or add a comment. U se ”Add data manually” to add weight values and comments without using the scale. 5. -
Page 15: Messages
7. Messages Problem Cause Solution No batteries or batteries are Insert or replace batteries empty No display Batteries inserted incorrectly Insert batteries correctly 1. Radio communication is interrupted Activate the product again with a 2. Distance between scale and distance of 20 cm between scale web box is too great during and web box. -
Page 16: Technical Specifications
8. Technical specifications Web Box - Radio frequency: 434 MHz - Power supply unit: Model: BLJ5W050100P-V Output: 5V ⎓ 1000mA Input: 100-240V~50/60Hz, 150mA Scale - Load capacity x graduation = max 150 kg x 100 g / max 330 lb / 0.2 lb - 8 memory slots for individual persons - Measurement current: < 0.1 mA RMS, 50/5 kHz - Radio frequency: 434 MHz - Batteries: 4 x 1.5 V AAA batteries included in the scope of delivery. As an alternative to regular alkaline batteries, NiMh accumulator batteries with a low self-discharge rate are also recommended. -
Page 17: Declaration Of Conformity
9. Declaration of conformity Soehnle herewith declares that this device is in compliance with the basic requirements and all other applicable regulations of directive 1999/5/EC. You will find the EU compliance declaration on www.soehnle.com. Although the appliance has been tested and its emissions do not exceed the permitted radio frequency emission levels as laid down in the above directives, there is no guarantee that interference will not occur in certain situations. -
Page 18: Service And Support
Monday through Friday from 8:30 a.m. to noon Germany Ph.: 08 00 - 5 34 34 34 International Ph.: +49 - 26 04 - 97 70 If you‘d like to contact us in writing, please use the contact form at the SOEHNLE homepage www.soehnle.com. For contact information of SOEHNLE representative in your country, visit www.soehnle.com. 12. Guarantee SOEHNLE guarantees a rectification of faults based on material or production errors free of charge, either by repair or replacement, for 3 years as of the date of purchase. Please retain the receipt of purchase. In case of a guarantee claim, please return the scale with filled-in guarantee slip and receipt of purchase to your seller. - Page 19 Quality & Design by Leifheit AG Leifheitstraße 1 56377 Nassau / Germany Telefon +49 2604 977-0 +49 2604 977-300 www.soehnle.com...
