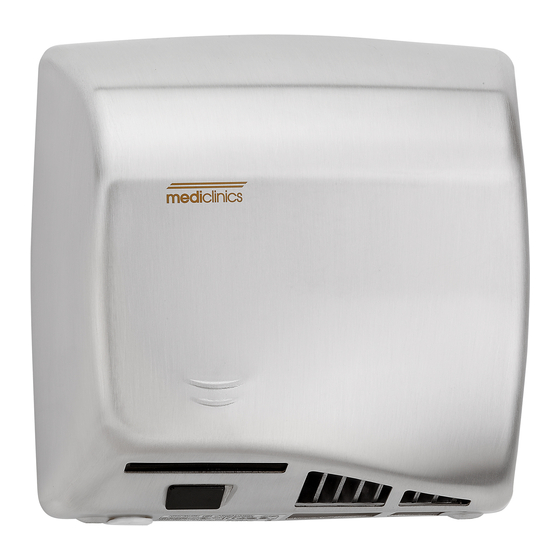

Speedflow hand dryer
Safety regulations
All installation, maintenance and repair tasks must be carried out by qualified technicians.
Mediclinics remembers the importance of:
1. Becoming familiar with the equipment and carefully reading the user manual prior to
operating.
2. Disconnecting power prior to beginning any repair or maintenance action.
3. Exercising care in accordance with the procedures included herein.
General maintenance
Preventive Maintenance - Cleaning
depending on the dryer's operating cycles.
Inspect the units
annually or quarterly,
Clean the active parts of the unit, such as: the motor, the heating element, the fan and
the electronic circuit board with a soft brush.
Maintain the air inlet and outlet free of dust and other obstructions; use a soft flat ended
brush.
