HAND DRYERS /
M12A / M12ACS
INSTALLATION AND OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M12A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mediclinics M12A

Summary of Contents for Mediclinics M12A

  • Page 1 HAND DRYERS / M12A / M12ACS INSTALLATION AND OPERATING MANUAL...

  • Page 2: Operation

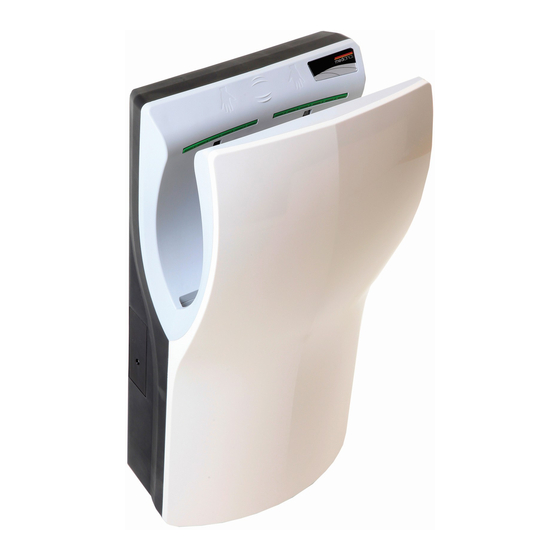

    The speed of the air generated by the hand dryer can be adjusted, to achieve an optimum balance between the drying power and noise level. Available finishes: White (M12A) Satin (M12ACS) Dimensions: 656 mm (H) x 320 mm (W) x 226 mm (D).

  • Page 3: Installation

    INSTALLATION AND MAINTENANCE BOOK (TECHNICAL STAFF) Introduction. „Dualflow Plus‟ family of hand dryers offers the technical features as follows. Automatic operation. Drying cycle starts when putting hands in. Two couple of IR sensors detect hands introduction. Dryer is a class I (earthed) electrical insulation device. Drying process is based on powerful air curtains which remove water from hands.
  • Page 4 Screw the upper plate to the wall (2). Plastic covers which protect the terminal block (inlet power supply) must be removed (3). The hand dryer should be hung on the metal support which has been fitted to the wall (4). Pass the electrical cables from mains through the 22 mm diameter hole located in the rear plastic base3 plate.
  • Page 5 Installation height must be the showed in figure nº 3. Figure nº 3 ATTENTION: WHEN THE CASING IS DISMANTELED ACTIVE PARTS OF THE DEVICE BECOME ACCESSIBLE.

  • Page 6: Maintenance

    Maintenance. ONLY A QUALIFIED TECHNICIAN CAN INSTALL, ADJUST AND MAINTAIN THIS HAND DRYER. Adjust the speed of the motor. To adjust the speed of the motor turn the sensor potentiometer wheel as the picture 4 shows. Figure nº 4 Pilot light information. Light leds on the top of the hand dryer (see figure 5) give advice about: 1: Standby (green colour) or operation status (orange colour).

  • Page 7: Air Filter

    Air filter. Air filter must be changed as the pictures of figure nº 6 shows. Figure nº 6 No smell load charge. Figure nº 7 shows how to install the no smell charge. Figure nº 7 Water tank. Water from hands drops directly to an internal water tank. When water reaches the „full level‟ an acoustic alarm sounds and the blue pilot light bright (see Fig.

  • Page 8: Connection Diagram

    CONNECTION DIAGRAM Figure nº 9 Figure nº 10 - The installer must make sure that the electric system is grounded in accordance with the law in force. DANGER. - Make sure that the electric system has a high-sensitivity Electric shock risk breaker I n ≤...
  • Page 9 BASIC EXPLODED VIEW COMPONENT NUMBER CODE Motor set RC9111003SMD Electronic control RC9121012SMD Air filter set RCFILTRODFW...
  • Page 10 MODELO MODEL MODÈLE MODELL M12A M12ACS GENERAL: GENERAL: GÉNÉRAL : ALLGEMEIN: Blanco / White / Satinado / Satin / Acabado: Finish: Finition : Finish: Blanche / Weiβ Satiné / Satiniert 220 – 240 V / 50-60Hz. Alimentación: Power supply: Alimentation :...
  • Page 11 ELIMINACIÓN DE RESIDUOS DE APARATOS ELÉCTRICOS Y ELECTRÓNICOS POR PARTE DE USUARIOS DOMÉSTICOS EN LA UNIÓN EUROPEA. El producto que ha adquirido ha sido diseñado y fabricado con materiales y componentes de alta calidad que pueden ser reciclados y reutilizados Cuando vea un producto marcado con este símbolo de un contenedor de basura con ruedas tachado significa que dicho producto está...
