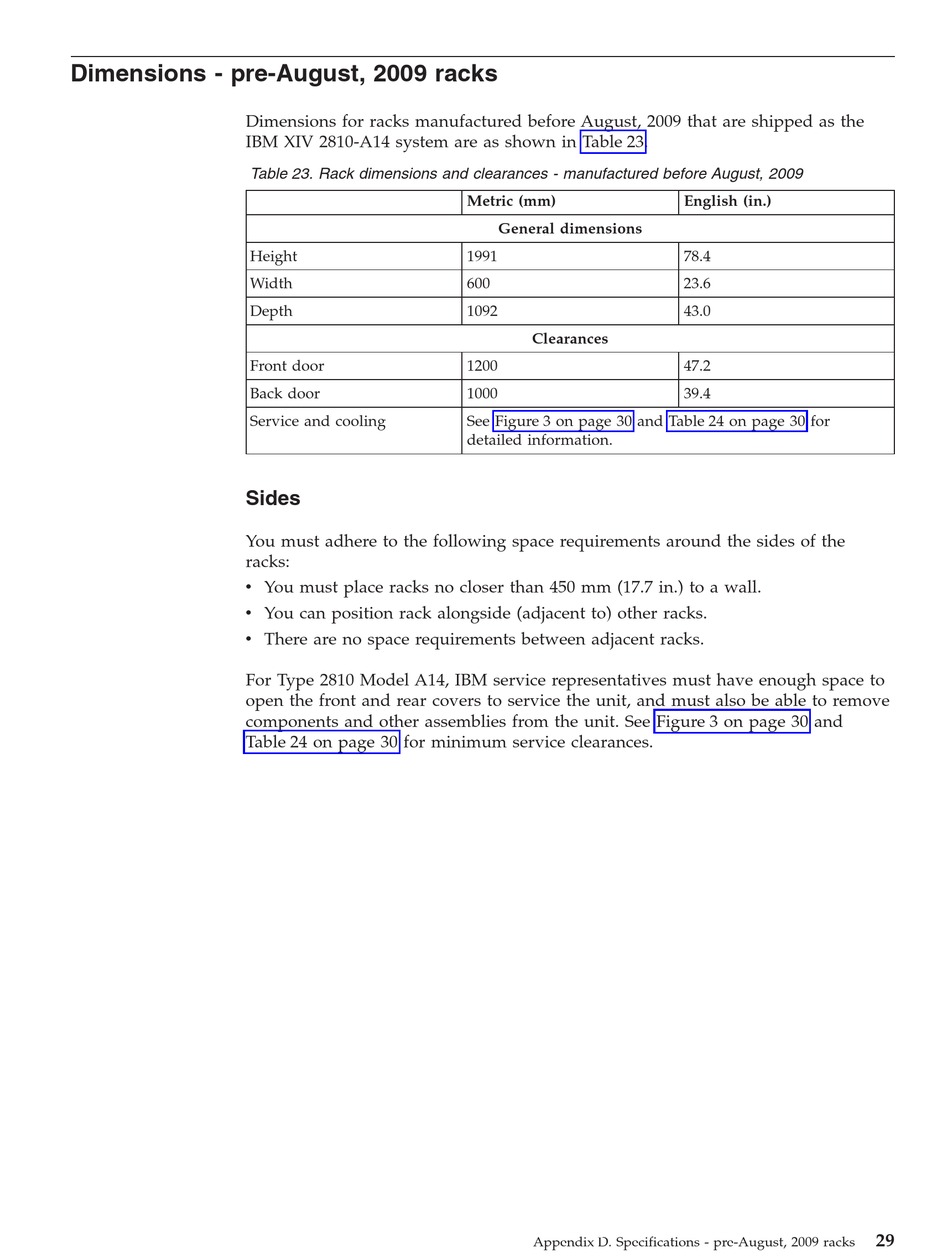

Dimensions - pre-August, 2009 racks

Dimensions for racks manufactured before August, 2009 that are shipped as the
IBM XIV 2810-A14 system are as shown in Table 23.
Sides
You must adhere to the following space requirements around the sides of the
racks:
v You must place racks no closer than 450 mm (17.7 in.) to a wall.
v You can position rack alongside (adjacent to) other racks.
v There are no space requirements between adjacent racks.
For Type 2810 Model A14, IBM service representatives must have enough space to
open the front and rear covers to service the unit, and must also be able to remove
components and other assemblies from the unit. See Figure 3 on page 30 and
Table 24 on page 30 for minimum service clearances.
Table 23. Rack dimensions and clearances - manufactured before August, 2009
Height
Width
Depth
Front door
Back door
Service and cooling
Metric (mm)
General dimensions
1991
600
1092
Clearances
1200
1000
See Figure 3 on page 30 and Table 24 on page 30 for
detailed information.
Appendix D. Specifications - pre-August, 2009 racks
English (in.)
78.4
23.6
43.0
47.2
39.4
