Replacing the Display
14
1.
Remove the meter's cover and shield by following the steps outlined in
"Accessing the Socket Meter's PC Boards" on page 7.
2.

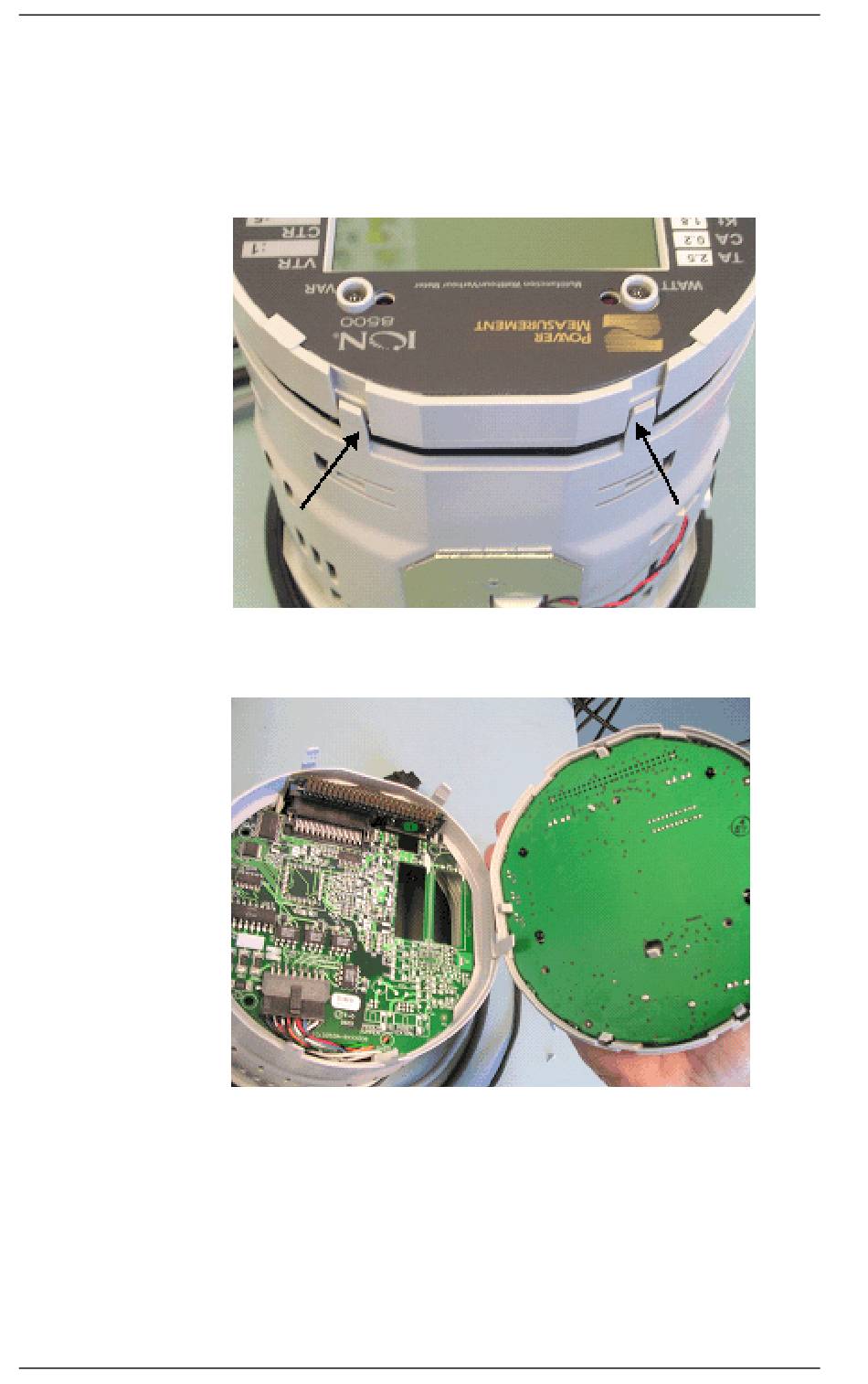

Remove display board by carefully prying tabs back and pulling straight
up. Angling the display board will damage the connector on the CPU.
3.
Insert new display, ensuring proper orientation.
4.
Re-place the cover with the four side screws (taking care not to pinch any
of the wiring) and connect the ground wire.
5.
Re-insert the shield with its two screws.
6.
Re-insert the cover by aligning the rim slots and press down, twisting
clockwise. Secure with new base seal provided.
