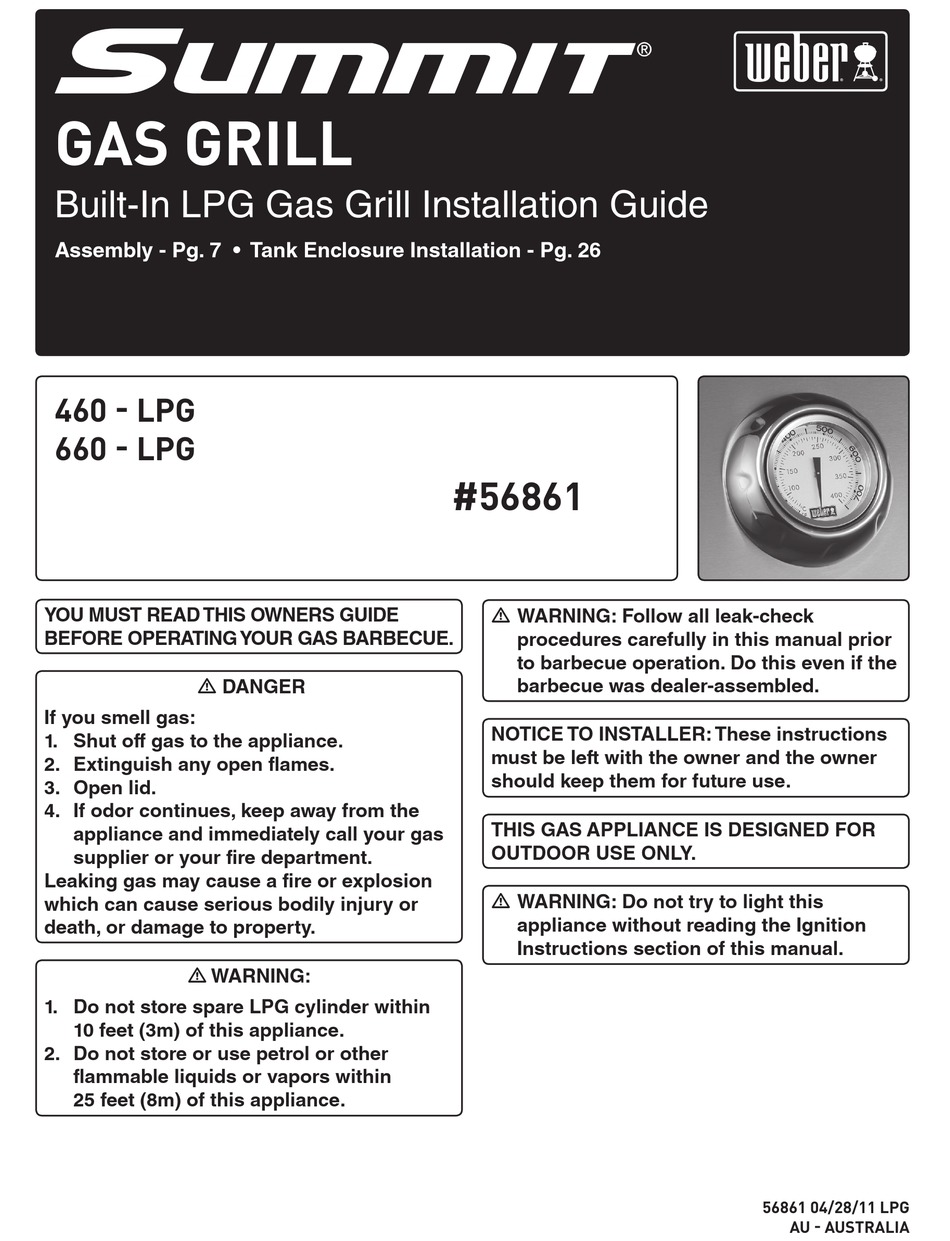

GAS GRILL
Built-In LPG Gas Grill Installation Guide
Assembly - Pg. 7 • Tank Enclosure Installation - Pg. 26
460 - LPG
660 - LPG
You musT rEAd ThIs ownErs GuIdE
bEforE oPErATInG Your GAs bArbECuE.
m dAnGEr
If you smell gas:
1. shut off gas to the appliance.
2. Extinguish any open flames.
3. open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
Leaking gas may cause a fire or explosion
which can cause serious bodily injury or
death, or damage to property.
m wArnInG:
1. do not store spare LPG cylinder within
10 feet (3m) of this appliance.
2. do not store or use petrol or other
flammable liquids or vapors within
25 feet (8m) of this appliance.
#56861
m wArnInG: follow all leak-check
procedures carefully in this manual prior
to barbecue operation. do this even if the
barbecue was dealer-assembled.
noTICE To InsTALLEr: These instructions
must be left with the owner and the owner
should keep them for future use.
ThIs GAs APPLIAnCE Is dEsIGnEd for
ouTdoor usE onLY.
m wArnInG: do not try to light this
appliance without reading the Ignition
Instructions section of this manual.
56861 04/28/11 LPG
AU - AUSTRALIA

Advertisement

loading
Need help?

Need help?

Do you have a question about the Summit 460-LPG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Weber Summit 460-LPG

  • Page 1 GAS GRILL Built-In LPG Gas Grill Installation Guide Assembly - Pg. 7 • Tank Enclosure Installation - Pg. 26 460 - LPG 660 - LPG #56861 You musT rEAd ThIs ownErs GuIdE m wArnInG: follow all leak-check bEforE oPErATInG Your GAs bArbECuE. procedures carefully in this manual prior to barbecue operation.
  • Page 2 All countertop finished surfaces must be constructed of a noncombustible material. ◆ ToLeRANceS 34" (864 mm) 42" (1067 mm) ±1/4" (6 mm) 36" (914 mm) 36" (914 mm) 24 5/16" (618 mm) 24 5/16" (618 mm) ±1/4" (6 mm) WWW.WebeR.com ®...
  • Page 3 bUILT-IN cUToUT DImeNSIoNS GEnErAL ConsTruCTIon dETAILs The Summit ® Built-In unit should be on site before construction begins. For ease of installation, the grill will be pushed on its casters into the built-in structure. The installation of this grill requires a level floor pad surface (1) and countertop surface. The floor pad surface must be constructed from solid materials and must be level and smooth.
  • Page 4: Connect Gas Supply

    Note: 1/2" flared gaskets are included in the Summit® Built-In tank Enclosure Kit included with your grill. ◆ Typical tank cabinet or tank enclosure location Side view Top of box Back of box Corrugated gas line to manifold 90° fitting 1/2" (13 mm) flared gasket WWW.WebeR.com ®...
  • Page 5 ATTEnTIon: This product has been safety tested and is only certified for use in a specific country. refer to country designation located on outer carton. These parts may be gas carrying or gas burning components. Please contact Weber-Stephen Products LLC Customer Service Department for genuine Weber-Stephen Products LLC replacement part(s) information.
