Dip Switches - Explo DMX Manual

2 Overview
The CO²-Jet can be controlled via the Explo mastermodule, or DMX. The integrated 10part
Dipswitch allows you to make several adjustments, like assigning a DMX adress, or opening
time (when using a Mastermodule), before use of the device.

3 Dip switches

Value if
„ON"
Value if
„OFF"

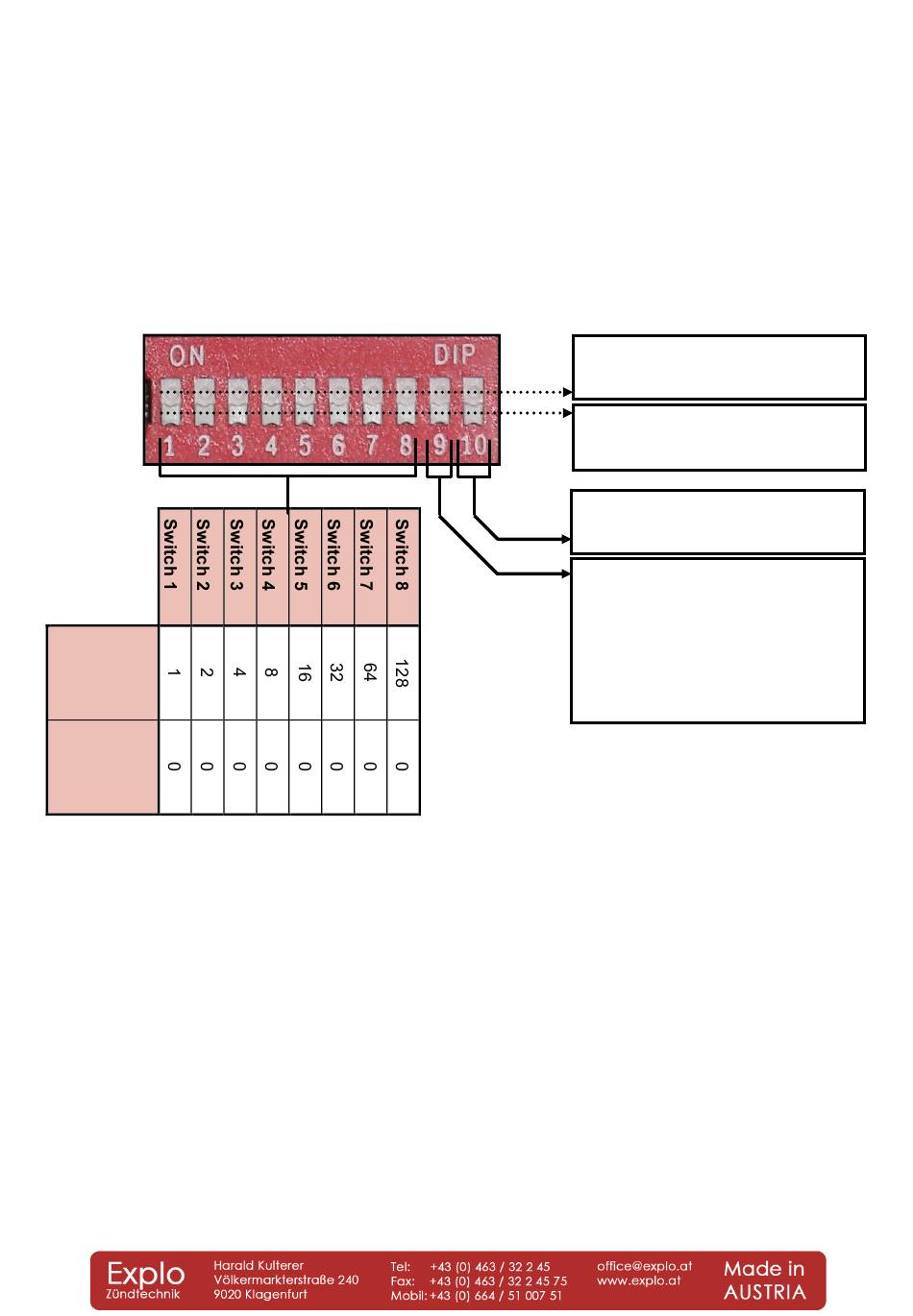

The Dip Switch uses 10 single switches (see graphic above). Using the switches 1-8 (from
the left), the opening time of an external ignition during Mastermodule use can be assigned,
during DMX-use, the DMX adress is assigned. Switch9 can be used to lock/unlock the
adjusting of the opening time during an external ignition. Switch 10 is used to jump between
DMX and Mastermodule use.
Switch facing up: Switch position
"ON"
Switch facing down:
position "OFF"
„ON": DMX- use
„OFF": Mastermodul- use
(only when using Mastermodule)
„ON": Jet-Number can be
assigned.
„OFF": Opening time can be
adjusted.
Switch
3
