Explo
Zündtechnik
DMX-Manual
Manual v0.1
Explo
Harald Kulterer
Völkermarkterstrasse 240
9020 Klagenfurt am Wörthersee
Austria
Tel:
Fax:
Mobil: +43 (0) 664 / 51 007 51
www.explo.at
office@explo.at
September 2013
Zündtechnik
+43 (0) 463 / 32 2 45
+43 (0) 463 / 32 2 45 75

Advertisement

loading
Need help?

Need help?

Do you have a question about the DMX and is the answer not in the manual?

Questions and answers

Summary of Contents for Explo DMX

  • Page 1 Explo Zündtechnik DMX-Manual Manual v0.1 September 2013 Explo Zündtechnik Harald Kulterer Völkermarkterstrasse 240 9020 Klagenfurt am Wörthersee Austria Tel: +43 (0) 463 / 32 2 45 Fax: +43 (0) 463 / 32 2 45 75 Mobil: +43 (0) 664 / 51 007 51 www.explo.at...
  • Page 2 DipSwitch ............................3 Erklärung Switch 1-8 ........................ 4 3.1.1 Im Mastermodul- Betrieb ....................4 3.1.2 Im DMX- Betrieb ......................5 Erklärung Switch 9 ........................7 Erklärung Switch 10 ......................... 8 Beschreibung DMX allgemein ......................8 Beschreibung DMX Kanäle ......................10 Anwendung des CO²-Jet ......................
  • Page 3: Dip Switches

    2 Overview The CO²-Jet can be controlled via the Explo mastermodule, or DMX. The integrated 10part Dipswitch allows you to make several adjustments, like assigning a DMX adress, or opening time (when using a Mastermodule), before use of the device.
  • Page 4 Each of the eight switches has its own value (using the binary system, as shown below), which are used if the switch is in the "ON" position. The sum of all 8 activated switches is the opening time, or DMX adress. 3.1.1 During Mastermodule-use Setting the opening time for external ignition.
  • Page 5 3.1.2 During DMX-use Setting the DMX-adress Switch Value Example DMX-adressing: Adress 14 should be set. Therefore, the sum of all switch values must be 14. This sum is achieved by the summation of 2 + 4 + 8 = 14. These values are assigned to the switches 2(value2), 3 (value4) and 4 (value8).
  • Page 6 Switch settings for the first 16 DMX-adresses: Adress DipSwitch 1-8 Adress DipSwitch 1-8...
  • Page 7 IMPORTANT: Setting the Jet-number uses Binary code ( see "Explanation of switches 1-8" - "Setting the DMX-adress") and can only be done at CO²-Jets that are switched on. Should there be Jets without a numbering behind the set CO²Jet, these will line up accordingly behind said numbered Jet.
  • Page 8 The CO²-Jet is controlled by two DMX-channels. The first channel is the one with the adress set at the Jet istelf, using the Dip switches. This channel is used to activate the Jet. The second DMX-channel is the one following the first. It is used to set the opening time of the Jet.
  • Page 9 Examples for opening times: Note: If the green LED is not lit or flashing in DMX mode, then the Jet isn't getting a valid signal. In this case you should check the connection to the Jet, as well the settings at the DIP switches.
  • Page 10 Channel 1 Channel 2 Result Above 253 11 – 200 CO²-Jet-Mode : Activation of the deivce, with opening time: Opening time (in ms) = (DMX value -10) *20 Zone: Zone: Channel 1 Channel 2 Result Above 253 11 – 200...
  • Page 11 "ON", and which ones "OFF", to acieve the wanted adress 3. 1 + 2 = 3 Switch Value (Sum of the values = Adress number) Result: To use a Gasprojector in DMX mode with the adress 3, the settings at the dip switches must look as below:...

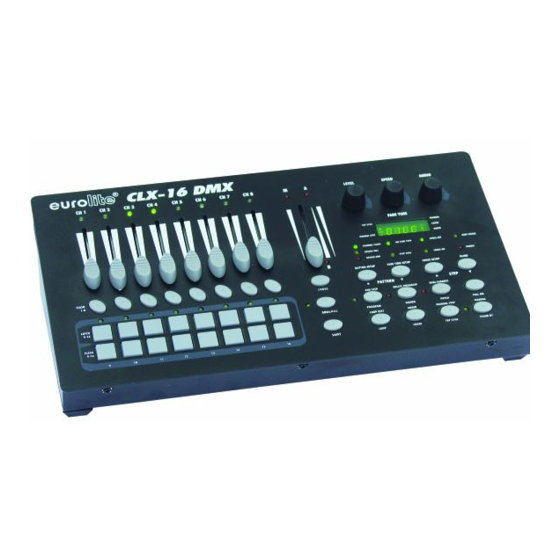

  • Page 12 Explanation: After setting the Dip switches at the projector, the device can be conneted to the DMX-mix table. Method: We connect the DMX-output of the DMX mix table with the DMX input of the Gasprojector, using a 3 pole XLR cable, whose pins are connected 1:1. We remember that the DMX input is the socket featuring the indicator "DMX IN".
  • Page 13 (DMX OUT) with the DMX input (DMX IN) of the following CO²-Jet. It is not possible to charge the devices using the DMX socket. Therefore, if you wish to charge all devices at once, you must connect the Master IN to the Master OUT / Charger sockets as well, using a 3 pole XLR cable.
