- Page 1 Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL ENGLISH...
-
Page 2: General
No part of this publication may be reproduced, duplicated or distributed without the prior written permission of the manufacturer. Daub Bakery Machinery B.V. can not be held responsible for any mistakes and / or misprints in this manual. It is recommended that you keep this manual close to, or with the machine at all times. -
Page 3: Table Of Contents
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 2 Table of contents GENERAL ..............................1 TABLE OF CONTENTS ..........................2 PRODUCT INFORMATION ........................ 3 DEFINITIONS ............................ 4 Warnings ..........................4 Description of parts of the machine ..................5 Error notifications on diplay freq.converter ................ -
Page 4: Product Information
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 3 Product information Manufacturer: Daub Bakery Machinery B.V. Nieuwkerksedijk 10 5051 HT Goirle P.O. box 51 5050 AB Goirle The Netherlands Tel: +31 13 5308700 Fax: +31 13 5308729 After sales service:... -
Page 5: Definitions
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 4 Definitions Warnings The following signs warn the operator for a possible danger because of mechanical or electrical components. Figure 2.1.1 Figure 2.1.2 Figure 2.1.3 Figure 2.1.1 is a sticker which is used on the machine indicating the sharpness of the knives. Do not come near the knives when machine is running. -
Page 6: Description Of Parts Of The Machine

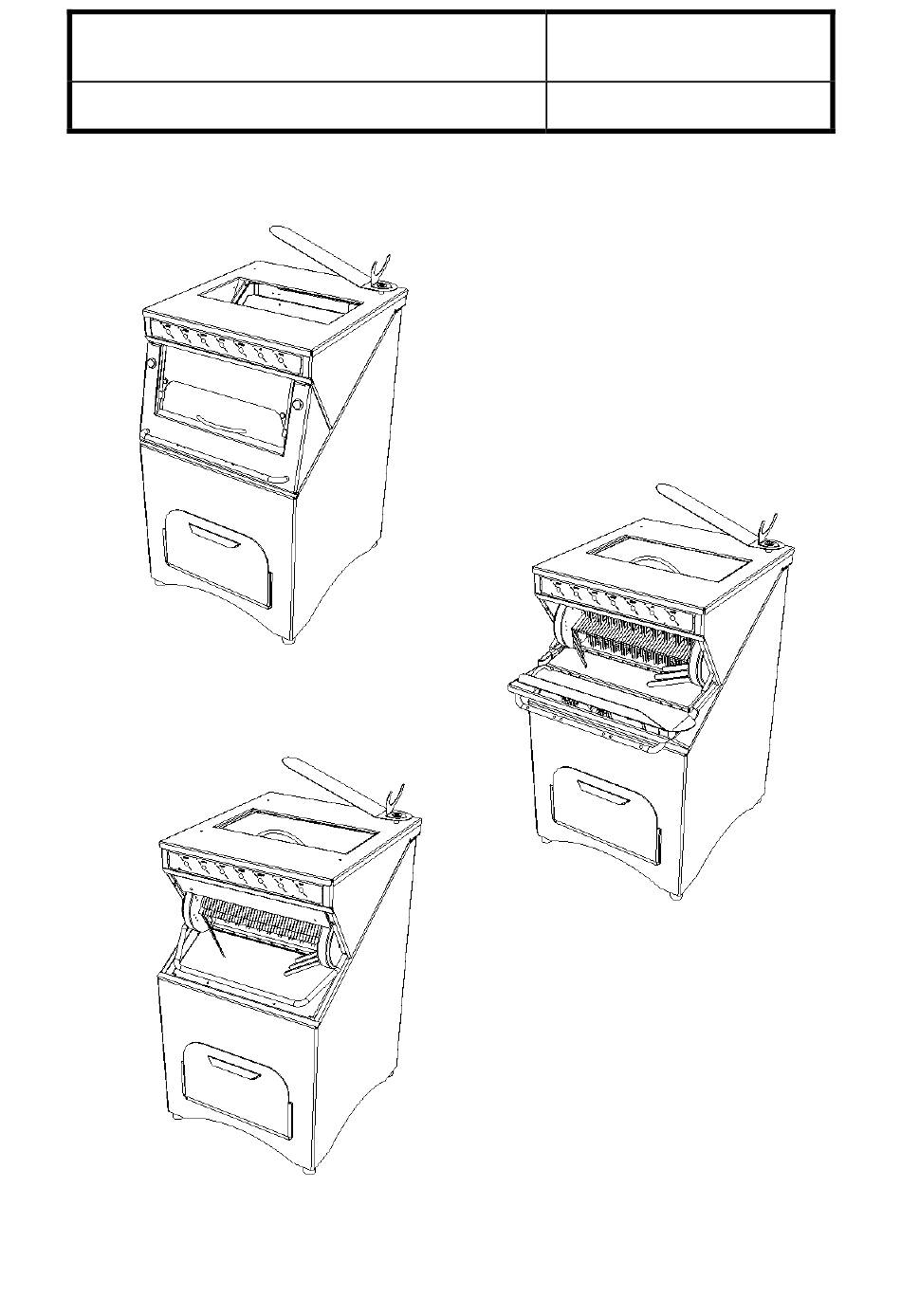

Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 5 Description of parts of the machine controlpanel outfeed infeed outfeed infeed crumb tray DSS-model USS-model infeed controlpanel outfeed crumb tray HSS-model Error notifications on diplay freq.converter (option) The display can show several faults. Check chapter 10 “Fault findings” for the codes and description. Do not use the machine when fault-notifications appears. -
Page 7: Safety
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 6 Safety Safety regulations Remove plug from the power supply when cleaning and/or maintaining the machine. Only qualified or well instructed employees can do repairs of mechanical or electrical nature. Never put your hands into the infeed side Do not use the machine when certain notifications (mentioned in paragraph 2.3) appear in the display. -
Page 8: Transport And Unpacking
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 7 Transport and unpacking Transport The machine must be transported in its original packing. In the means of transport the packing must be secured against shoving. The machine should be moved with the right lift equipment. Transport damage caused by not having followed above-mentioned regulations can not be claimed. -
Page 9: Installation
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 8 Installation Placing and maintenance Only qualified employees are allowed to install the machine. The machine can only be used for its purpose: to slice bread products. Guarantee can not be claimed if changes have been made to the machine without the manufacturers permission and/or if not-original spare parts are used. -
Page 10: Carrying Off Material
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 9 Carrying off material When carrying off a complete machine, parts or only the packing, you should comply with the legal regulations. Specifications concerning the material of the parts can be asked for at the manufacturers. Correct disposal of this product This marking shown on the product or its literature indicates that it should not be disposed with other household wastes at the end of its working life. -
Page 11: Product Description
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 10 Product description Purpose of the machine The purpose of the machine is to slice bread in pieces with equally thickness. The machine is assembled from parts, wherein the parts that come in contact with the bread are made of stainless steel, if desired Teflon-coated or are made from plastics approved for use in the food industry. -
Page 12: Description Of The Control Panel
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 11 Description of the control panel Figure 6.3 Position Description STANDBY/STOP button of the machine Speed controller: warm and soft bread Speed controller: bread room temperature Speed controller: bread room temperature Speed controller: cooled and hard bread Oil-lubrication (option) Button for small bread... -
Page 13: Working With The Machine
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 12 Working with the machine Taking use of the machine Check if the machine is placed correctly as described in chapter 5 “Installation”. Check if it is necessary to clean the machine because of possible transport dirt. Also check if the voltage on the machine plate is in accordance with that of your main supply. -
Page 14: Maintenance
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 13 Maintenance Cleaning Always turn the main switch off before starting any kind of maintenance. Never clean the machine with water. The use of water will cause oxidation and electrical problems. Only qualified employees may clean the machine. -
Page 15: Instructions Changing Knives
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 14 Instructions changing knives The knives should be positioned and tensioned correctly for the best slicing results This should be done by a technician Please read the procedure carefully Turn off the main switch of the machine In order to access the knives, you need to disconnect the in- and outfeed table aswell as the covers from the machine. -
Page 16: Options
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 15 Options Oil-lubrication of the knives When use of a breadslicer with oil lubrication the knives will be greased through the upper knife guide. In this guide a piece of felt will be sprayed with oil. Due to the capillary action of the felt , the felt will saturate completely with oil. -
Page 17: 10 Fault Finding
Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 16 10 Fault finding In the table below, there’s a list of problems: Problem Cause Solution Plug is not in the socket Put the plug into the socket Machine does not start Cover is not closed (well) Close the cover You chose the wrong option... - Page 18 Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 17...
- Page 19 Date: 18-2-2015 D / PERFORMANCE-SLICER Version: 01 USERS MANUAL Page 18...
