DVTEC

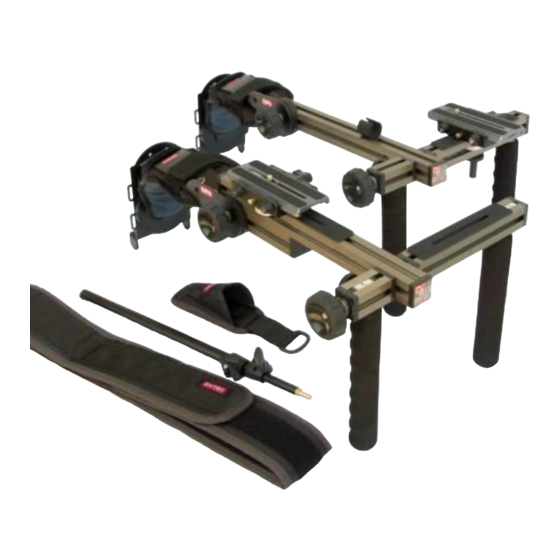

DvRigPro. / DvRigPro.HD
Release the pod locks ONLY AFTER you secure the bottom end in the holster and
insert the top end into the rig's spring receptacle.
DvRigPro.
Thank you for choosing the
DvRigPro.
DvRigPro.HD
2
www.dvtec.tv
Support pod
The support pod is spring loaded,
use caution when releasing the locks !!
1
The Support pod receptacle (1) and
the camera mount (2) can be
moved left and right to best balance
various cameras and loads.
Turn the thumbscrews clockwise,
adjust position and lock back.
Thumb wheel (3) is controlling the right grip
lock. For folding, release and move to the right
to unlock the pin. Lock the pin when tilting or
for resting the rig on the ground.
Locking Knob (4) is controlling the grips. For
free tilting, slightly release the knob. Use the
left grip to tilt the camera
The Flexible pod holder (5) is for storing the
support pod when not in use.
dvtec@natovich.co.il
Advertisement
Table of Contents
Related Manuals for DVTEC DvRigPro.
Summary of Contents for DVTEC DvRigPro.
- Page 1 DVTEC DvRigPro. / DvRigPro.HD Support pod The support pod is spring loaded, use caution when releasing the locks !! Release the pod locks ONLY AFTER you secure the bottom end in the holster and insert the top end into the rig’s spring receptacle.
- Page 2 (7) and pull out. Removable End Caps For Easy Accessories Mounting And for moving the pod support point from the side to the front bars To Open Turn Counter Clockwise Pull out To Close Push In Turn Clock wise www.dvtec.tv dvtec@natovich.co.il...
- Page 3 DvRigPro.HD Only !! When using the side mount (HD Only) move the Support pod tip receptacle (1) from the front to the side bar by using the release holes (7). You can also attach your camera/tripod plate to the threaded holes (8) and mount the whole rig on your Quick Release tripod head.
