DVTEC EngRig Manual

DvTec - EngRig
Thank you for choosing the EngRig support system.
The EngRig plate and rods can be used to support any standard 15 mm Matte Box systems,
Follow focus units Etc. It is equipped with the universal camera plate Quick Release mount.
And is Vertically and Horizontally adjustable
The EngRig support is designed for full size shoulder video cameras equipped with the EngRig
Plate and rods or with any other standard 15mm Matte Box support rods.
To avoid possible physical or property damage to your body or the camera Lens,
When inserting or taking out the pod to and from the support assembly.
Remove the QR plate from your camera, and replace it with the EngRig plate using the same
screws.
Before you put the camera on your shoulder
• Make sure both rods are firmly screwed into the camera plate.

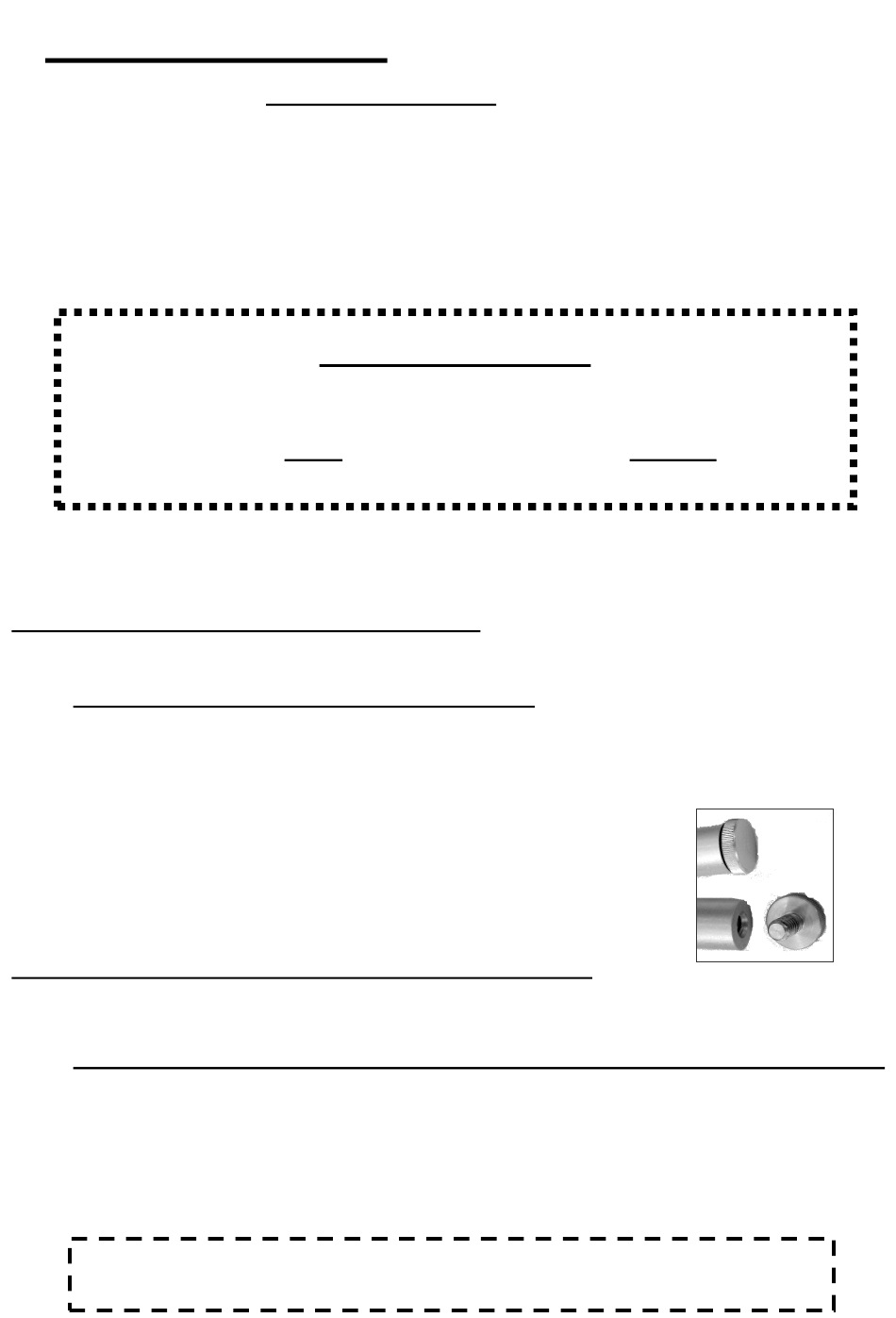

• Note the rod end safety stoppers, Remove for installation and put them back before use.
• Never use your EngRig without safety stoppers If you use the EngRig support with
other brand rod system, make sure to use some kind of device to stop the support
assembly from sliding off the rods.(7)
• Slide the Support Assembly all the way on the rods with knob (1) on the left side
and lock (1).
• Squeeze the pod to its minimum length and Lock it.
• Attach the holster to the support belt.
• Put the support belt on.
• Tighten the belt to your waist just above your hipbone.
• Position the holster aligned with your right shoulder.
You are now ready to put the camera on your shoulder
• Put the camera on your shoulder in normal shooting position.
• Proceed with your right hand holding the camera zoom grip at all times!
• Insert the bottom of the pod into the holster through the "D" ring.
• Insert the pod's QR brass tip (2) into hole (3).
• make sure it "clicks in
• Unlock both pods' locking knobs.
• Adjust the black nut (4) Counter clockwise for free side tilt mode and Clockwise for
Horizontal locked mode.
Caution
The support pod is spring loaded! Handle it with care.
Make sure BOTH support pod
Never walk with the Horizontal lock locked.!
You will get very unstable shoots and may break the gimbal !
! Read this first
- locking knobs are
!
LOCKED .
7
