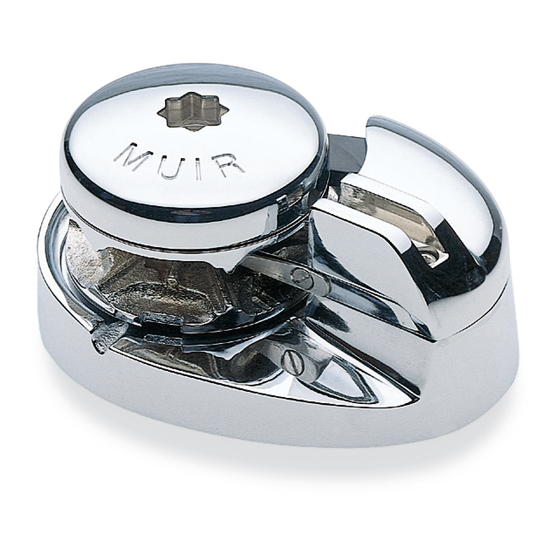

- Page 1 T H E W O R L D P O W E R A N C H O R I N G S Y S T E M S STORM VR/ VRC/VFF 600 VERTICAL WINDLASS VR/VRC/VFF 600 12/01/2015 muir.com.au...
-
Page 2: Table Of Contents
Exploded View of VR600 Storm Exploded View of VR600 Storm with lock pawl Exploded View of VRC600 Storm Exploded View of VFF600 Freefall Solenoid Terminal Warning Wiring Diagram Maintenance Schedule page 21 Warranty and Warranty Registration Card page 22 VR/VRC/VFF 600 12/01/2015 muir.com.au... -
Page 3: Introduction
S Y S T E M S INTRODUCTION Thank you for purchasing a Muir Storm Windlass. Muir go to great lengths to develop anchoring systems that not only meet all of your performance and safety requirements, while also being designed with a style and finish that enhances the aesthetics of your vessel. -
Page 4: Installation
NOTE: During assembly, grease all moving parts and the deck plate grease nipple with a Lithium/Teflon based grease. The motor/gear drive assembly should be protected with anti-corrosion film or grease tape. VR/VRC/VFF 600 12/01/2015 muir.com.au... - Page 5 To make installation easier, ensure the retaining clip is fitted to the drive assembly before pushing onto To disassemble: Remove the bottom bolt and washers, pull out the retaining clip and then slide down the Motor/Gearbox assembly. VR/VRC/VFF 600 12/01/2015 muir.com.au...
-
Page 6: Depth Of The Chain Locker
(See also water protection diagram on page 15.) If your vessel does not meet the minimum fall requirements for a vertical windlass, contact your Muir retailer. Vertical Windlass: The running gear, gypsy... -
Page 7: Handy Hints
: Windlasses may be wired for single or dual direction, using single or dual deck switches for raising or lowering. Alternatively a remote control solenoid package with Toggle Switch, Hand Pendant or Auto Anchor is available. Contact your Muir Retailer for further details Solenoid Installation... -
Page 8: Wiring Layout
REMOTE / DECK SWITCH LAYOUT BATTERY CIRCUIT BREAKER SOLENOID/CONTROL BOX DECK SWITCHES REMOTE SWITCH AUTO ANCHOR LAYOUT BATTERY CIRCUIT BREAKER SOLENOID/CONTROL BOX DECK SWITCHES AUTO ANCHOR AUTO ANCHOR SENSOR NOT TO BE USED AS WIRING DIAGRAMS VR/VRC/VFF 600 12/01/2015 muir.com.au... -
Page 9: Vr600 & Vrc600
The geardrive is filled and sealed at factory with long life synthetic oil that does not require replacement for the life of the geardrive. Gradually loosen Tighten to brake the to release the line outgoing line manually Fully tighten to retrieve the anchor under power VR/VRC/VFF 600 12/01/2015 muir.com.au... -
Page 10: Maintenance And Assembly Instructions
5. Repeat steps 1-4 in reverse order. Lubricate shaft, gypsy and drive cone. • The Motor/geardrive assembly should be protected with anti-corrosion film or grease tape. • Check for any corrosion or paint chips and treat. • Check motor terminals and clean. VR/VRC/VFF 600 12/01/2015 muir.com.au... -
Page 11: Vff600
IT IS NECESSARY TO INSTALL AN ISOLATION SWITCH AS WELL AS A CIRCUIT BREAKER TO THE FREEFALL WINDLASSES TO ISOLATE THE WINDLASS WHEN NOT IN USE. This is to prevent the rope and chain from paying out if the winch is accidentally reversed. VR/VRC/VFF 600 12/01/2015 muir.com.au... -
Page 12: Maintenance And Servicing
W O R L D P O W E R A N C H O R I N G S Y S T E M S MAINTENANCE AND SERVICING VFF 600 Free Fall Windlass Tools required Muir clutch handle (P/N. F90- HANNYL0600) (ii) - Page 13 ¼ turn & hold. Then tighten (F) Grub screw. Removing clutch cap (P/N. P07- CLNBRZVFF600A1). Place Muir clutch handle into bi-square (G) and then turn clockwise (left hand thread) to remove. 7. Removing gypsy (P/N. P10-A0600), peeler (P/N.
-
Page 14: Rope And Chain
Line Care Using the wrong type of line may cause the line to jam or slip, causing excessive line wear. Muir Windlasses are designed to run on 3-strand nylon line (supplied by Muir) which has been specially treated with fabric softener to prevent it from hardening. It is recommended to soak your rope in fresh water containing fabric softener every 3 months. -
Page 15: Troubleshooting
Recommended products for anti corrosion protection are Techtyl under body anti corrosion film and Denso grease tape. Chain Pipe Extension Wires and motor clamp to bottom where possible VR/VRC/VFF 600 12/01/2015 muir.com.au... -
Page 21: Maintenance Schedule
Remove chain wheel, clean cones then fully grease and lubricate. years after installation see Maintenance & Servicing Remove chain wheel, clean cones then fully grease and lubricate. 3 years after installation see Maintenance & Servicing 4 years after installation Full winch Service muir.com.au... -
Page 22: Warranty And Warranty Registration Card
Liability Muir Engineering liability under this warranty shall be to the exclusion of all other warranties or liabilities (to the extent permitted bylaw). In particular (but without limitation): Muir Engineering shall not be liable for:... - Page 23 Please apply this method to all reversing solenoids, circuit breakers and motor terminals. Turn top spanner clockwise to tighten Hold bottom Spanner firm Correct method using 2 spanners. Incorrect method using 1 spanner. www.muir.com.au Teminal Warning 24.01.13...
- Page 24 WINDLASS SERIAL NUMBER © 2013 Muir Engineering Pty. Ltd. Muir reserves the right to alter specifications without notice. All rights reserved. While all due care and attention has been taken in the preparation of this manual no responsibility shall be...
