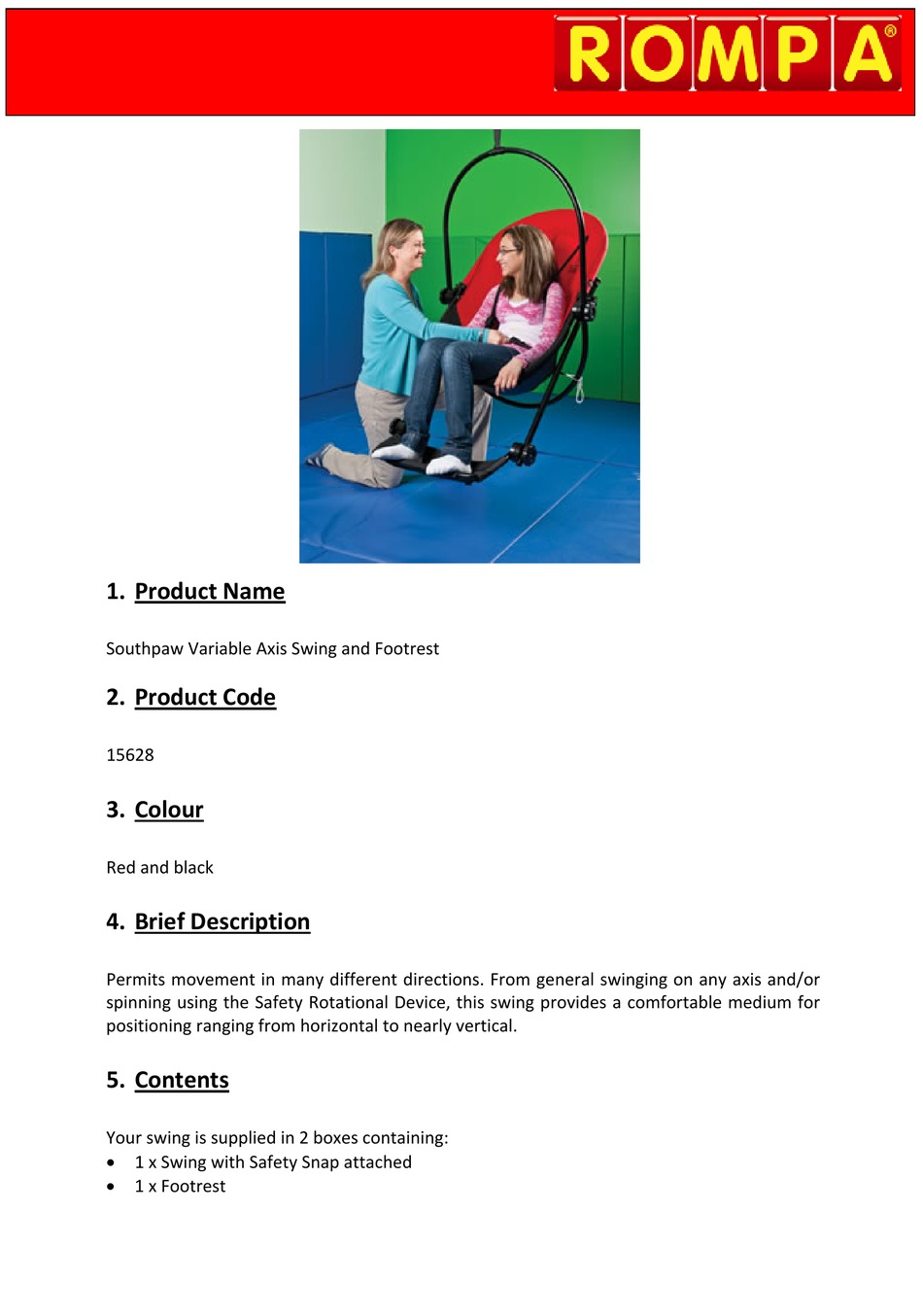

1. Product Name
Southpaw Variable Axis Swing and Footrest
2. Product Code
15628
3. Colour
Red and black
4. Brief Description
Permits movement in many different directions. From general swinging on any axis and/or
spinning using the Safety Rotational Device, this swing provides a comfortable medium for
positioning ranging from horizontal to nearly vertical.
5. Contents
Your swing is supplied in 2 boxes containing:
• 1 x Swing with Safety Snap attached
• 1 x Footrest
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rompa 15628
Summary of Contents for Rompa 15628
- Page 1 1. Product Name Southpaw Variable Axis Swing and Footrest 2. Product Code 15628 3. Colour Red and black 4. Brief Description Permits movement in many different directions. From general swinging on any axis and/or spinning using the Safety Rotational Device, this swing provides a comfortable medium for positioning ranging from horizontal to nearly vertical. 5. Contents Your swing is supplied in 2 boxes containing: • 1 x Swing with Safety Snap attached • 1 x Footrest ...
-
Page 2: Detailed Description
6. Snoezelen® Stimulations • Vestibular 7. Best Use Use indoors with an appropriate suspension system, away from obstacles. 8. Compatible ROMPA® Products This swing must be used with an appropriate suspension system such as: 13672 – Hanging Bracket 13738 – Southpaw Safety Rotational Device 13626 – Southpaw Height Adjuster ROMPA® offers an extensive range of Sensory Integration products and is the exclusive European distributor of Southpaw products. Visit www.rompa.com for more information. 9. Starting Up • Unpack. • Make sure the top part of the swing (red part) is nearest the suspension webbing strap and safety snap. • Adjust the angle of the swing slightly so it is not completely flat (larger knobs with teeth mechanism). • Remove the rubber ends from the straight metal tubular bars of the footrest. • Loosen the smaller bolts on footrest so one opening of the bolts fits around the bar of the swing. • Pass the tubular bar of the footrest through the other opening of the bolt and ... - Page 3 11. Safety • Always supervise the use of this product. • For indoor use only. Not for outdoor use. • Do not exceed the working load 200lbs (90 kilograms). • A competent adult should supervise the use and storage of this product. • Make sure all knobs are securely fastened. • Always use the Variable Axis Swing with a Safety Rotational Device. Check the hanging strap is securely in place. • Client should always wear a helmet. Floor and wall mats of a suitable thickness should be placed under and around the Variable Axis Swing. • Do not use aluminum safety snaps. Use only the steel safety snaps available from ® ROMPA . Always use with a Safety Rotational Device. • Do not use the swing without the provided safety restraint system (black webbing harness). The harness is already threaded into the swing, but can be adjusted by undoing the buckle and threading the harness through one of the other slits in the red fabric. Replace the buckle afterwards. ...
-
Page 4: Technical Specification
12. Technical Specification Working load: 200 lbs (90kg) Seat size: 105cm x 58cm. Seat depth (front to back): 36cm. 13. Installation Unpack. Make sure the top part of the swing (red part) is nearest the suspension webbing strap and safety snap. Adjust the angle of the swing slightly so it is not completely flat (larger knobs with teeth mechanism). ... - Page 5 Remove the rubber ends from the straight metal tubular bars of the footrest. Loosen the smaller bolts on footrest so one opening of the bolts fits around the bar of the swing. ...
- Page 6 Pass the tubular bar of the footrest through the other opening of the bolt. ...
- Page 7 Replace the rubber end on both sides ...
- Page 8 Use the thin white cords to attach the swing to the frame in a central position. Open the Safety Snap and attach the swing to your Safety Rotational Device. To adjust the angle of the swing Do not adjust the swing with the client inside. Loosen the positioning plate knobs on the sides of the swing until the teeth of the plates disengage. Adjust the angle of the seat to the desired position and tighten the knobs till the teeth of the positioning plates fully engage. Do not loosen the knobs more than is necessary to adjust the swing. Tie the cords to the outside loop of the frame. ...
-
Page 9: Care And Maintenance
14. Care and Maintenance Every month check: • Safety Snaps, all metal to metal connections, and Safety Rotational Device. Check if the top loop of the swing is worn or fraying. • Check for tears or ripped seams in the cover. • Check ceiling eye bolt for wear. • Check all wear points. If wear and tear could cause product failure, discontinue use immediately. SPARE PARTS The following spare parts are available: • Replacement cover • Hanging Strap • Side release buckle • 3.5” knob • 2” knob • Positioning plate (4 required) CLEANING Machine wash the red part in cold water using a mild detergent. Air dry only. Do not tumble dry as the material will become irrevocably damaged. Clean the frame using a damp cloth and a little soapy water or mild disinfectant. STORAGE When not in use, store out of sunlight and out of reach of clients. To reposition hanging strap after cleaning Wrap the webbing strap round the top of the aluminium frame two times, looping one end of the webbing under the other end both times. Then attach the safety snap to the ... -
Page 10: Troubleshooting
15. Troubleshooting Problem : the footrest attachment knobs are facing inwards • These knobs must be facing outwards – remove and replace as necessary Problem : the swing keeps moving • Make sure the larger knobs with the teeth are securely tightened • Use the white cords to centralize the swing Problem : the footrest attachment is not level • When attaching, make sure the tops of the tubular poles are level (clamp knobs at same height). Further copies of these instructions can be downloaded at www.rompa.com We hope you find our instructions invaluable. If you have any suggestions for improving them further your comments will be greatly received – please contact us at producthelp@rompa.com ...
