ITP11

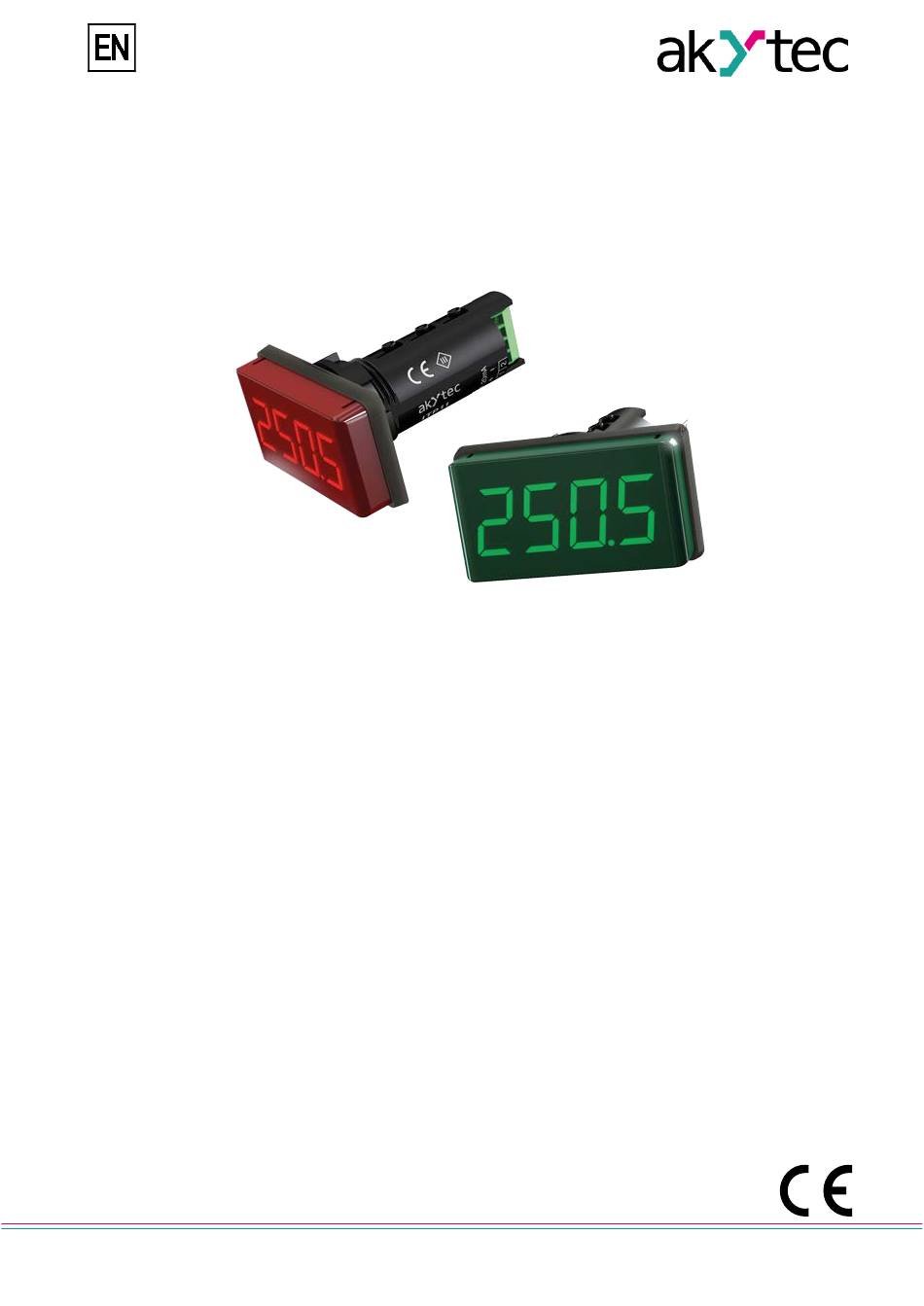

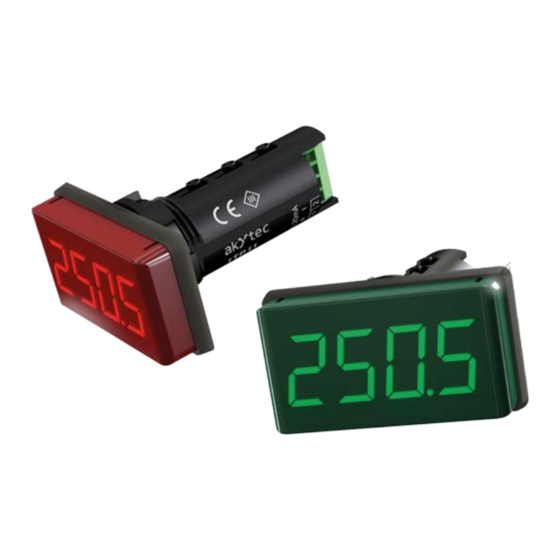

Process indicator 4-20 mA
User guide
ITP11_2017.11_0247_EN
© All rights reserved
Subject to technical changes and misprints
akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITP11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Akytec ITP11

  • Page 1 ITP11 Process indicator 4-20 mA User guide ITP11_2017.11_0247_EN © All rights reserved Subject to technical changes and misprints akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 2: Table Of Contents

    Transportation and storage ......................... 11 Scope of delivery ............................12 Appendix A Dimensions ........................... 13 Appendix B Electrical connection ........................14 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 3: Safety Guidelines

    Non-observance of the safety guidelines may result in damage to the device and injury to users. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover· Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 4: Intended Use

    The device may not be used in potentially explosive environment. − The device may not be used in an atmosphere with chemically active substances. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover· Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 5: Specifications

    80% (at +25°C, non-condensing) IP Code front IP65, rear IP20 Altitude up to 2000 m above sea level akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover· Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 6: Functional Description

    Protection against unauthorized access ITP11 Microcontroller Square 4-20 mА Scaling and Digital filter root adjusting function Fig. 4.1 Block diagram akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover· Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 7: Installation And Operation

    If the constant increases, the display reacts to changes of the input signal more slowly and the susceptibility to interference is lower. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover· Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 8: Programming Mode

    The parameters are configured as fol- lows: -999  4 mA di.Lo: 9999  20 mA di.Hi: akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover· Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 9 (factory setting – 5), then press button to confirm. If an incorrect passcode is entered, the device reverts to operating mode. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover· Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 10 Input current higher than Check input signal 22.5 mA No input signal Check input signal None Reverse polarity on input Check polarity akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover· Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 11: Maintenance

    The device should be cleaned with a damp cloth only. No abrasives or solvent-containing cleaners may be used. The safety guidelines in Section 1 must be observed when carrying out maintenance. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover· Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 12: Transportation And Storage

    Check the device for transport damage and completeness! Report the transport damage immediately to the shipper and akYtec GmbH! akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover· Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 13: Scope Of Delivery

    Scope of delivery Scope of delivery − ITP11 − Gasket − Mounting nut − User guide akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover· Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 14: Appendix A Dimensions

    To prevent the device spinning, the borehole in the front panel must correspond to the dimensions in Fig. A.2. Fig. A.2. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover· Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
  • Page 15: Appendix B Electrical Connection

    Fig. B.2 Connection to the device with passive output 4-20mA Fig. B.3 Connection of 2 or more ITP11 to a 4-20 mA source akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover· Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
