Summary of Contents for Heltun HE-FT01

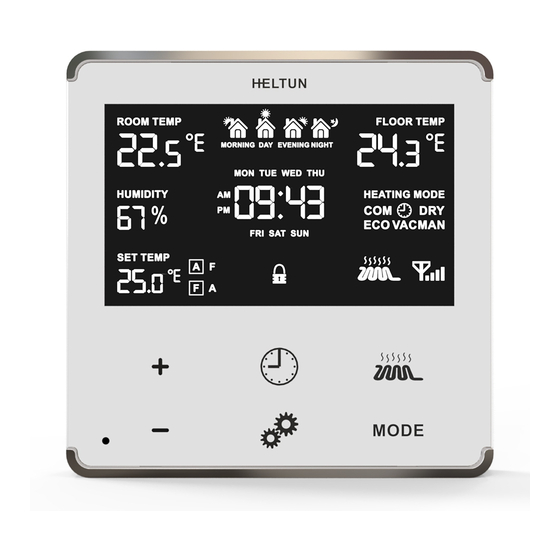

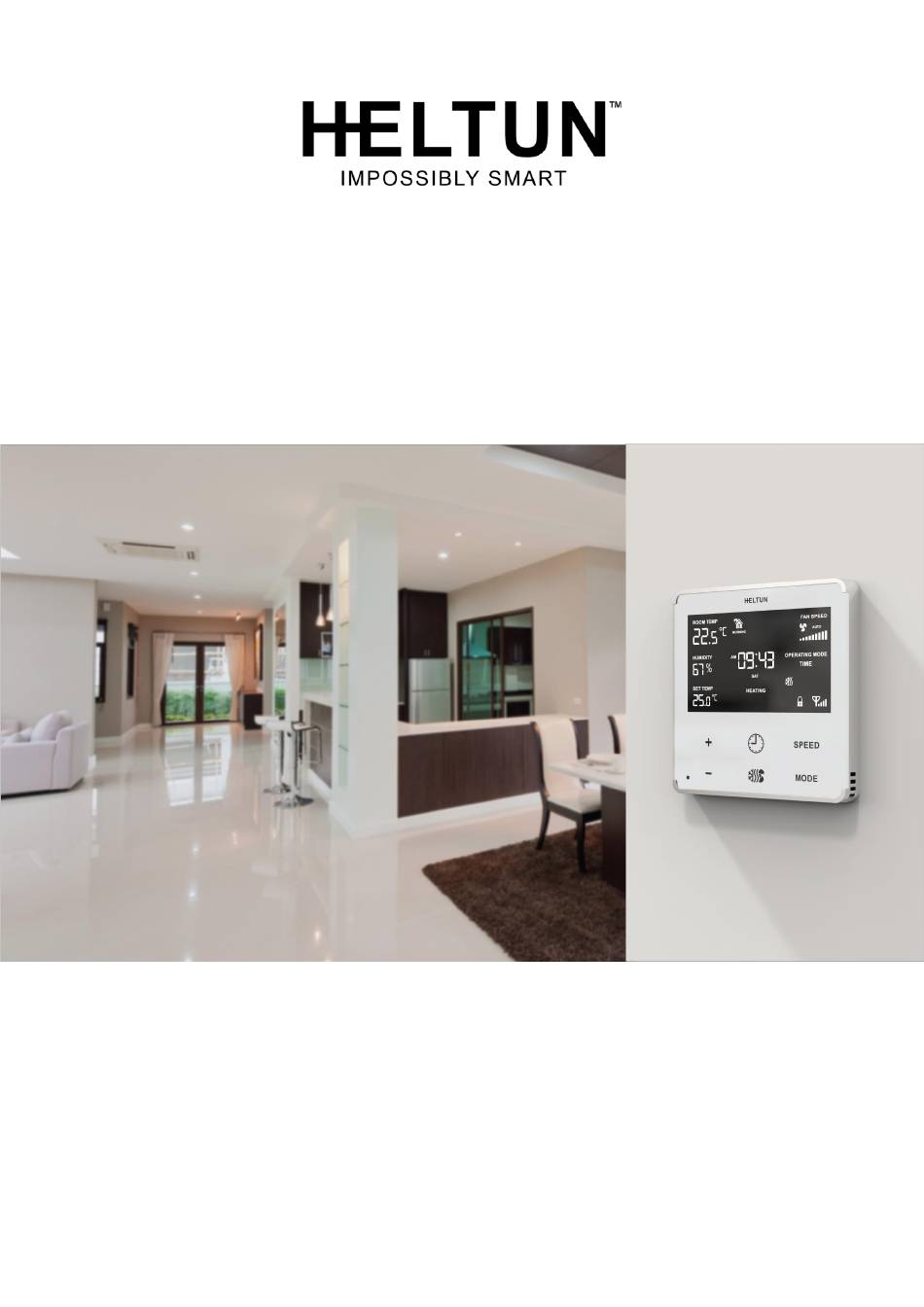

- Page 1 FAN COIL THERMOSTAT HE-FT01 USER MANUAL v1.0...
-
Page 2: Table Of Contents
Table of Content Overview ................................... 3 Technical Specifications ..............................3 Functions & Features ................................ 4 Installation ..................................5 Disassembly ..................................6 Touch Panel Operation ..............................6 Climate Control Modes ..............................6 Heating & Cooling ................................ 6 Heating ..................................7 Cooling ..................................7 Ventilation ................................... -
Page 3: Overview
Systems. The HE-FT01 is elegantly designed and ‘Impossibly Smart’ providing wireless over-the-Internet control of your home’s fan coil heating/cooling system. The HE-FT01 is ‘Impossibly Thin’ on the wall yet packed with features to help you save energy while providing the ultimate in comfort and convenience. -
Page 4: Functions & Features
Temperature hysteresis selection range: 0.2°C to 10.0°C • Temperature measurement: Celsius (°C) or Fahrenheit (°F) • Relays output NO / NC mode. • HELTUN Advanced Zero-Cross relay switching technology • Time format: 24 or 12 hours (AM/PM) • LCD brightness: Automatic adjustment (depending on ambient light) Manual adjustment (10 levels). -
Page 5: Installation
HE-FT01. WARNING: Electrical power must be switched off during installation. 1. Placement of the HE-FT01 is of utmost importance for proper operation and must be away from sunlight and sources of direct heat. We recommend installing the HE-FT01 approximately 1.5 meters above the floor. -
Page 6: Disassembly
Note: The minimum Set Point is 1.0°C (33°F) and the maximum Set Point is 37.0°C (98°F). The HE-FT01 has four operating states: 1) HEATING (OUT-4 is On, OUT-5 is Off), 2) COOLING (OUT-5 is On and OUT-4 is Off), 3) VENTILATION (both OUT-4 and OUT-5 are Off) and 4) IDLE (all outputs are Off). In the HEATING and COOLING states, in addition to OUT-4 &... -
Page 7: Climate Control Modes
” button and selecting as shown above. Heating & Cooling In this mode, the HE-FT01 switches automatically between heating and cooling states. The primary purpose of automatic climate control is to manage the temperature of the area to provide maximum comfort. This means the thermostat will heat the room when the room temperature is lower than the temperature Set Point, and it will cool the room when room temperature is higher than the Set Point. -
Page 8: Operating Modes
Each Operating Mode (except TIME mode) has individual temperature Set Points for each Climate Mode (Heating & Cooling Modes). The HE-FT01 will operate automatically depending on the current Set Point indicated under the “SET TEMP” label on the LCD. To change the Set Point value, choose the desired Operating Mode (COM, TIME or ECO), choose the Climate Mode (“Heating”, “Cooling”... -
Page 9: Eco - Energy Saving Mode
Z-Wave gateway. If you change the Operating Mode to “Auto” through your Z-Wave gateway, the Climate Mode, “Heating & Cooling,” will be selected on the HE-FT01 according to the value of Parameter 41 (1=”Heating & Cooling,” 2=”Heating”, 3=”Cooling”). -
Page 10: Settings Menu
Settings Menu To enter the Settings Menu, press and hold the Climate “ ” button for three seconds. The abbreviated Parameter Name will be displayed in the top left corner of the LCD. The left center will display the Parameter Number. And the bottom left corner will display the Parameter Value. -
Page 11: Temperature Configuration
Parameter 01 (“tCr”) – Time Correction By Main Controller If this Parameter value = 1 and the HE-FT01 is connected to a Z-Wave gateway, the HE-FT01 time and day will be periodically polled and corrected from the gateway. To switch off auto-correction set the Parameter value to 0. The factory default value is 1. -
Page 12: Touch Sensitivity
This Parameter defines which Operating Mode the HE-FT01 reverts to if the Basic Set command is received. If the Basic Set command value is 0 (OFF state) the HE-FT01 will go to OFF mode and switch the operating state to IDLE. If the Basic Set command value is 0xFF (ON state) the HE-FT01 will change the Mode to the corresponding Parameter value (as follows). -
Page 13: Adding To A Z-Wave Network
” icon on the main display bottom right corner) if Inclusion was successful. 8. If “ECL” or “Err” is on Value position (or “ ” icon on the main display bottom right corner), the HE-FT01 Inclusion was not successful (try repeating steps 4-7). -
Page 14: Security
“ ” icon in the bottom right corner of the main screen. Note: The device DSK and QR code are printed on the HE-FT01 back panel plus on the manual included in the HE- FT01 packaging. -
Page 15: Z-Wave Plus V2 Specifications
Z-Wave Plus V2 Specifications Generic Device Class: GENERIC_TYPE_THERMOSTAT Specific Device Class: SPECIFIC_TYPE_THERMOSTAT_GENERAL_V2 Supported Command Classes Command Class Version Required Security Class Z-Wave Plus Info none Association highest granted (S2 Authenticated, S2 Unauthenticated or S0) Association Group Info highest granted (S2 Authenticated, S2 Unauthenticated or S0) Multi Channel Association highest granted (S2 Authenticated, S2 Unauthenticated or S0) Thermostat Operating State... - Page 16 Parameter 41 – TIME mode operation This parameter determines the Climate Mode (Heating or Cooling) to which HE-FT01 will switch when the TIME operating mode is selected. If the value = 1 the thermostat will go to Heating & Cooling mode, if value = 2 the thermostat goes to Heating mode, if the value = 3 the thermostat goes to Cooling Mode.
-
Page 17: Factory Default Parameters
Parameters 42-45 – Schedule Time Use these parameters to manual set the Morning, Day, Evening and Night times for the Temperature Schedules. The value of these parameters has format HHMM, e.g. for 08:00 use value 0800 (time without a colon). From 00:00 to 23:59 can be selected. - Page 18 Power of the Relay 4 load in W 0…1100 2 bytes RELAY4 LOAD Power of the Relay 5 load in W 0…1100 2 bytes RELAY5 LOAD TIME mode operation 1 byte TIME MODE OPERATION 1, 2, 3 Morning start time. Format: HHMM. 0000…2359 2 bytes MORNING START TIME...
-
Page 19: Limited Warranty
HELTUN warrants this product to be free from defects in workmanship or materials, under normal use and service, for a period of one (1) year from the date of purchase by the consumer ("Warranty Period"). HELTUN will extend this Warranty Period to three (3) years from the date of consumer purchase for any consumer who registers their warranty with HELTUN at this website page: bonus.heltun.com.
