HEATING THERMOSTAT HE-HT01
USER MANUAL V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE-HT01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heltun HE-HT01

Summary of Contents for Heltun HE-HT01

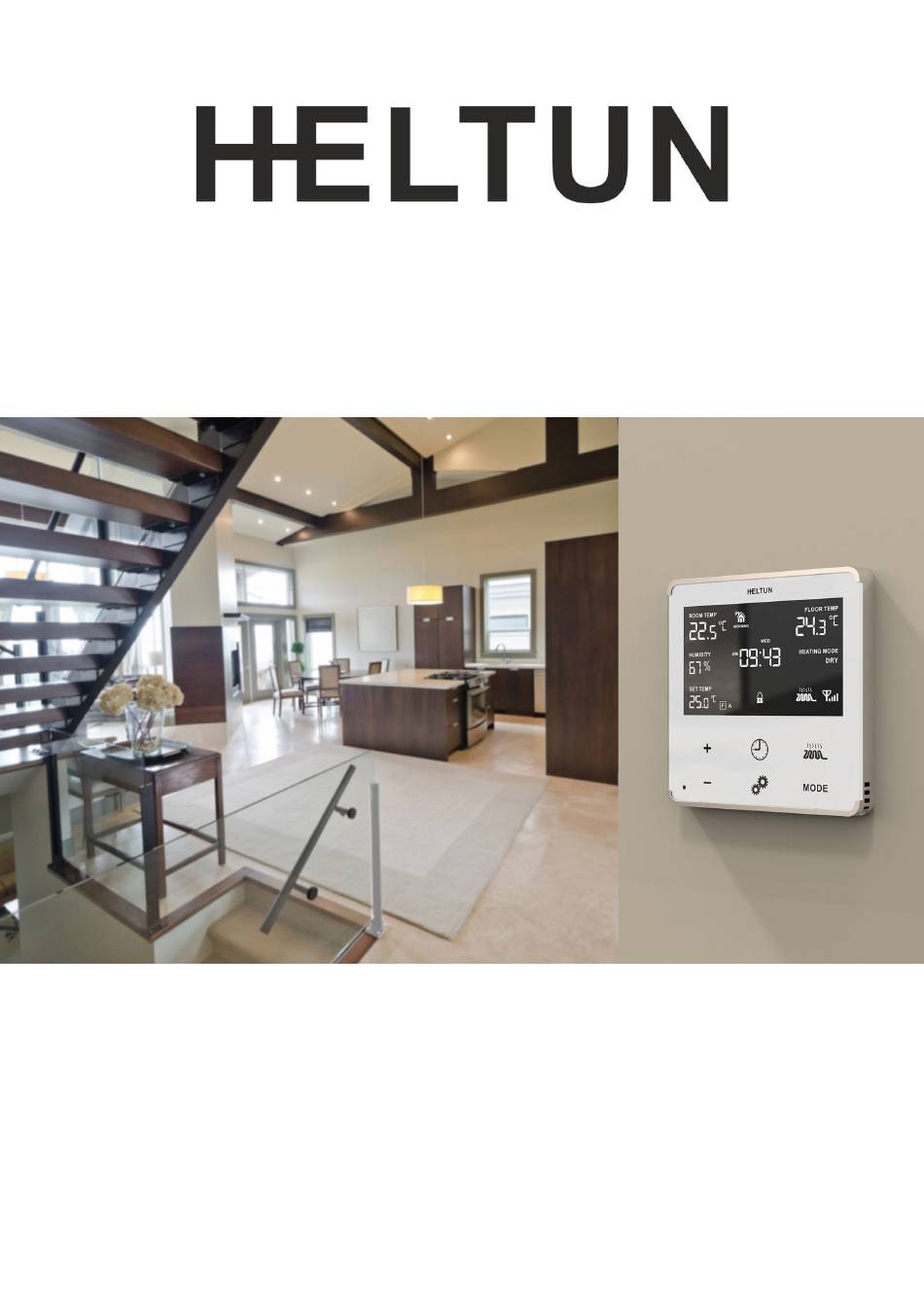

  • Page 1 HEATING THERMOSTAT HE-HT01 USER MANUAL V1.0...

  • Page 2: Table Of Contents

    Table of Contents Overview................................3 Technical Specifications............................3 Functions & Features............................4 Installation................................5 Disassembly..............................6 Touch Panel Operation.............................6 Operation Modes..............................6 COM - Comfort Mode (Heat)........................7 TIME - Temperature Schedule Mode (Auto Changeover)................7 DRY - Fast Floor Drying Mode........................7 ECO - Energy Saving Mode...........................8 VAC - Vacation Mode (Away)........................8 MAN - Manual Control Mode (Off)......................8 Child Lock (LOC)..............................8 Factory Reset (RES)............................8...

  • Page 3: Overview

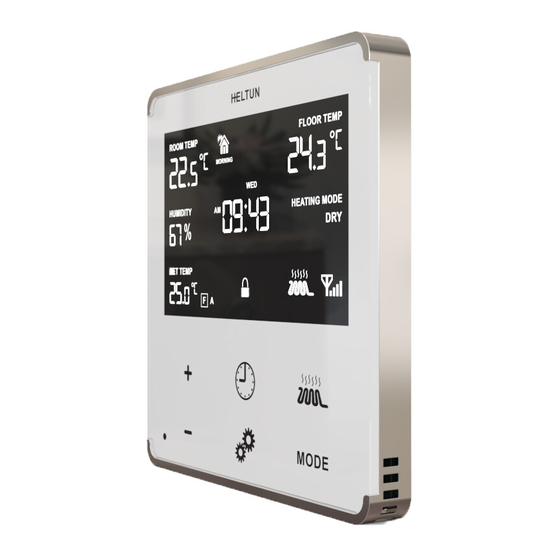

    This is the user manual for HELTUN HE-HT01 Advanced Programmable Thermostat for Heating Systems. The HE-HT01 can be flush mounted over standard electrical junction boxes. It is designed to maintain a constant room temperature by providing sensors for both ambient and radiant floor heating systems. It is recommended for control of electric heating systems (radiator, convection, electric fireplace), boilers, or electric underfloor heating.

  • Page 4: Functions & Features

    Functions & Features  Options for Inclusion/Exclusion to/from Z-Wave network Non-Secure S0 Secure S2 Unauthorized, S2 Authorized with Key  Association control with 10 devices from network  6 operational modes with individual temperature set points: COM – Comfort/Heating Mode ECO –...

  • Page 5: Installation

    3. FIRST ENSURE THE POWER IS OFF at the main circuit breaker, and then test the wires with a probe or multimeter to verify. Insert the power and heater wires to the correct HE-HT01 terminals by inserting a small Phillips-head screwdriver in the slot beneath each terminal to open.

  • Page 6: Disassembly

    1. To disassemble, ENSURE POWER IS SWITCHED OFF at the main circuit breaker AND THE LCD SCREEN IS BLANK. 2. To remove the HE-HT01 display unit grasp firmly at the bottom and pull backwards while tilting outwards until all tabs disconnect.

  • Page 7: Com - Comfort Mode (Heat)

    This mode is recommended for use if a high floor temperature is required for a limited period of time. For example, after washing the floor. By choosing DRY Mode, the HE-HT01 will increase the temperature to the selected Set Point for the time specified in the “Dry Time”...

  • Page 8: Eco - Energy Saving Mode

    Note: The minimum set point for each mode is 4.0°C (39°F) and the maximum set point is 37.0°C (99°F). MAN - Manual Control Mode (Off) In this Mode the HE-HT01 schedules are disabled and the heating state is switched On & Off manually by pressing the Heating Element “...

  • Page 9: Parameter List

    To scroll through the menu, press the Heating Element “ ” button to go up and the MODE key to go down. To change the Parameter value, press the Plus “+” or Minus “–” buttons. To leave the Settings Menu press and hold the key for 3 seconds or just wait.

  • Page 10: Input Configuration

    The Heating Thermostat will go back to previous mode as soon as the input is open. I f Parameter value = 2 the HE-HT01 will be switched to the operating mode selected in Parameter 3 if the output was short-circuited, but it will not undertake any action if the input is open again.

  • Page 11: Time Configuration

    If floor temperature is lower than 30°C and the room temperature is lower than 27°C the HE-HT01 will operate in HEATING mode. b) If the floor temperature is higher than 30°C or the room temperature is higher than 27°C then the HE-HT01 will enter IDLE mode which switches off the heater.

  • Page 12: Temperature Configuration

    Parameter 09 (“tCr”) – Time Correction By Main Controller If this Parameter value = 1 and the HE-HT01 is connected to a Z-Wave gateway, the HE-HT01 time and day will be periodically polled and corrected from the gateway. To switch off auto-correction set the Parameter value to 0. The factory default value is 1.

  • Page 13: Display Brightness

    Display Brightness The HE-HT01 has two brightness levels for its LCD display: Active Level – when any key is pressed the display becomes brighter, and Inactive Level – after five seconds of inactivity the display becomes less bright. The actual display brightness in either level may be adjusted (see below).

  • Page 14: Hardware & Firmware Versions

    7. The Antenna with signal strength bars ( ) icon should appear at the bottom right corner if Inclusion was successful. 8. If only the Antenna ( ) icon is displayed or “Err” is on Value position, the HE-HT01 Inclusion was not successful (try repeating steps 4-7).

  • Page 15: Removing From Z-Wave Network

    Note: If the HE-HT01 has previously been part of a Z-Wave network and not Excluded since, Inclusion is not possible without first performing an Exclusion or Factory Reset procedure. Note: If the HE-HT01 is included in the Z-Wave network the antenna icon will appear in the bottom right corner of the main screen with signal strength bars (...

  • Page 16: Associations

    Note: It is not recommended to modify this group. Group 2 – “Basic Set On/Off”: is assigned to the HE-HT01 operating state. It sends a Basic Set command with value 0 (Off) when it goes to IDLE state and sends 255 (ON) when it goes into HEATING state. Max support nodes: 10...

  • Page 17: Factory Default Parameters

    Note: If the sensor readings change, the device will send the report to the gateway regardless of this parameter value. In order not to increase traffic on your network, it is not recommended to reduce the value of this parameter. We recomend to reduce the value of this parameter only in case of poor connection, when reports from the device does not always reach the gateway.
  • Page 18 2 bytes FLOOR TEMP MIN Floor Temperature Minimum in °C, x10 40…360 2 bytes FLOOR TEMP MAX Floor Temperature Maximum in °C, x10 50…370 1 byte DEGREE MODE Degree Mode 0, 1(C_F) 1 byte AIR TEMP CORRECTION Air Temperature Calibration in °C, x10 (-95)…(+95) 1 byte FLOOR TEMP CORRECTION Floor Temperature Calibration in °C, x10...

  • Page 19: Warranty (2-Year)

    Warranty (2-Year) HELTUN warrants this product to be free from defects in the workmanship or materials, under normal use and service, for a period of two (2) years from the date of purchase by the consumer. If at any time during the warranty period the product is determined to be defective or malfunctions, HELTUN will repair or replace it (at HELTUN’s option).
