Federal Signal Corporation CudaTriOptic 352212 Instruction Sheet

SAFETY MESSAGE TO INSTALLERS
People's lives depend on your safe installa-
tion of our products. It is important to read,
understand and follow all instructions
shipped with the products. In addition, listed
below are some other important safety
instructions and precautions you should
follow:
• To properly install mounting kit: you
must have a good understanding of
automotive electrical procedures and
systems, along with proficiency in the
installation and use of safety warning
equipment.
• DO NOT install equipment or route
wiring or cord in the deployment path of
an air bag.
• Inspect the mounting system periodically
to ensure it is in good condition.
• Refer to instruction sheet packed with
light for proper electrical connections.
• File these instructions in a safe place and
refer to them when maintaining and/or
reinstalling the product.
Failure to follow all safety precautions and
instructions may result in property damage, serious
injury, or death to you or others.
A. GENERAL.
The CudaTriOptic Model 352212 is an LED light head
designed for use as a steady burn light. It is identical to the
CudaTriOptic Model 352012 except that it comes set to the
Steady On flash pattern, has a cigarette plug adapter, and
comes with a suction cup bracket. Use these instructions in
addition to all the guidelines given in the Model 352012
instruction sheet (2561767).
B. INSTALLATION.
1. Mounting.
When installing equipment inside air bag
equipped vehicles, the installer MUST ensure
that the equipment is installed ONLY in areas
recommended by the vehicle manufacturer.
Failure to observe this warning will reduce
the effectiveness of the air bag, damage the
air bag, or potentially damage or dislodge the
equipment, causing serious injury or death to
you or others.
INSTRUCTION SHEET
WARNING
WARNING
FOR
MODEL 352212
a.
plate using the three #10 hex head screws. Do not over
tighten the #10 screws.
Ensure that the suction cup tabs are positioned as
shown in figure 1.
b.
CudaTriOptic light head using the supplied hardware as
shown in figure 1.
2. Changing the Flash Pattern.
The module is factory set to the Steady On flash
pattern. If desired, the flash pattern can be changed to any
SUCTION CUP
PLATE,
SUCTION CUP
CUDATRIOPTIC
LIGHT HEAD
Secure the suction cups to the suction cup
NOTE
Secure the suction cup assembly to the
TABS

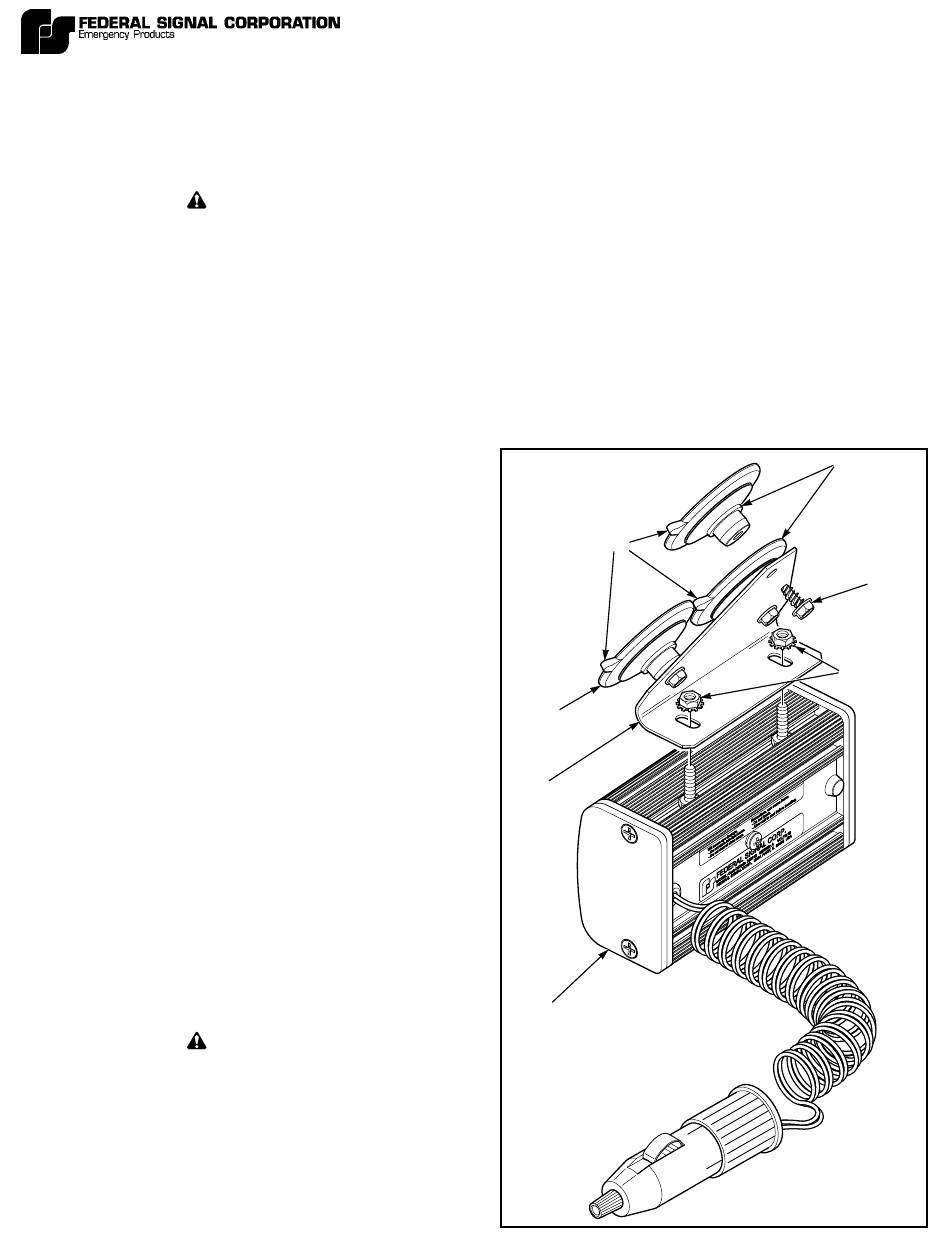

Figure 1.
2561853B
REV. B 103
Printed in U.S.A.
SUCTION CUPS
#10 HEX HEAD
SCREWS
#8 KEPS NUTS
290A4576
