Hang-On Perimeter Rail System with Charisma Frame - XSMA™

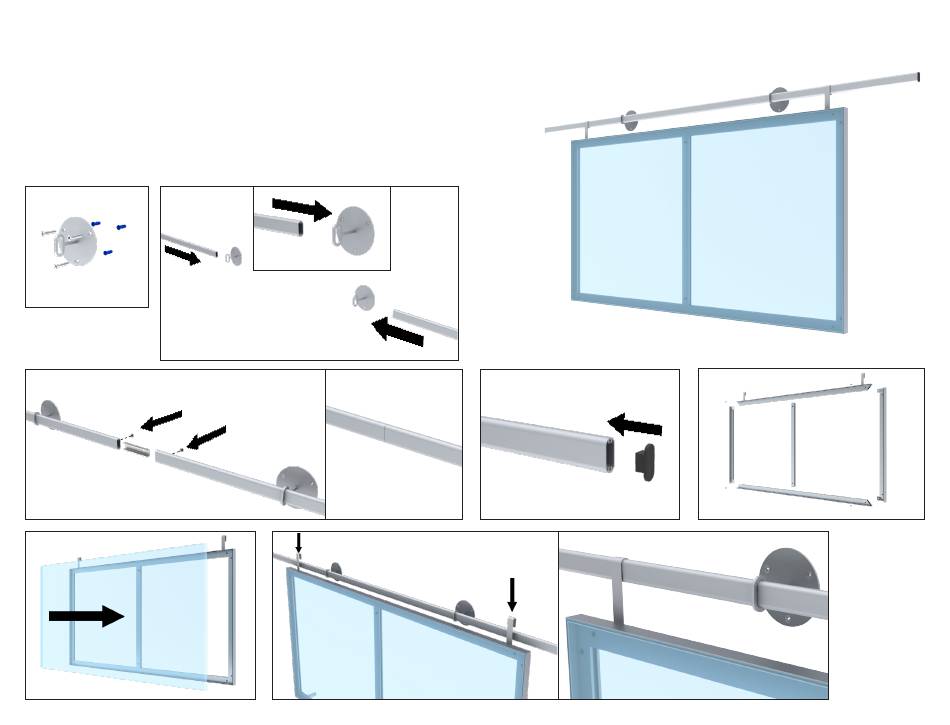

1. Mount the wall plates using the screws and anchors appropriate for your surface.
2. Slide the rail sections through the wall mounts.
3. Connect the rail sections using the joiners and screws provided.
4. Connect the caps to the ends of the joined rail.
5. Assemble the frame. See next page for detailed instructions.
6. Install the graphic. See next page for detailed instructions.
7. Hang the frame on the rail.
1.
2.
3.
Screws mount
on back
6.
After
7.
4.
5.
Version: 1
Page 1 of 2
