Charisma™ SEG Stand - XSS Series

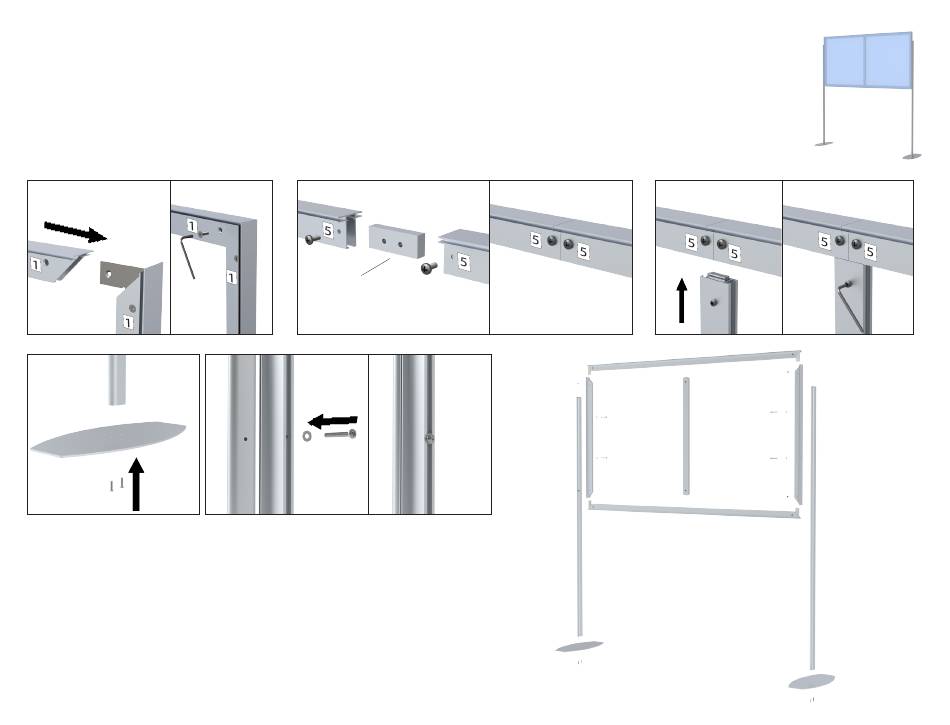

Align frame pieces with matching numbers, 1 with 1, 2 with 2, etc.
1.
For each corner, align holes of bracket with the holes on the frame and lightly tighten using the small Allen screws provided. Repeat for all
four sides. Once completed, go back and fully tighten all the screws.
2.
If applicable, place frame joiner in between frame halves. Align frame holes with joiner holes and use the screws provided to secure.
3.
Place center support bar bracket into frame channel and use an Allen key to expand the bracket inside the channel to secure it in place.
4.
Align uprights with base holes and attach using the large flat head Allen screws provided. When inserting screws, tighten BOTH by hand
first. Then, fully tighten using an Allen key.
5.
Attach the frame to the uprights using the screws and washers provided.
1.
4.
2. (If applicable)
joiner
5.
3.
2.
3.
1.
5.
5.
5.
5.
1.
3.
2.
4.
1.
1.
4.
XSS36B shown
Version: 1
Page 1 of 2
