Testrite Visual Charisma Frame XSM Series Manual

Charisma Frame™ - XSM Series

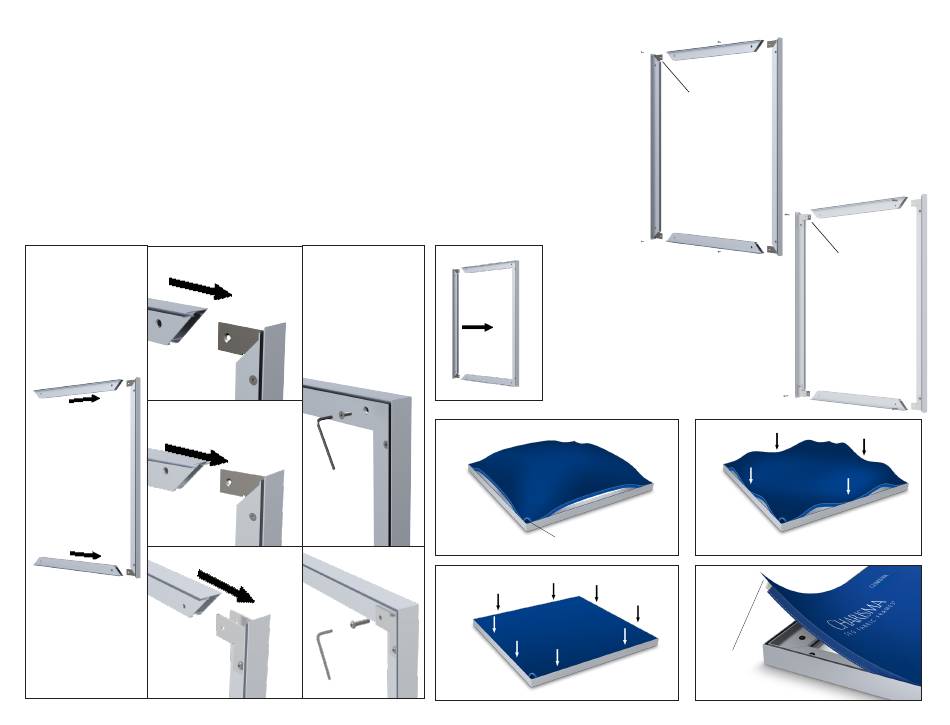

For proper assembly, it is important to notice that two frame-sides have brackets premounted, and two sides do not.
1. Using the screws provided, attach the two frame-sides without bracket to the first frame side with brackets.
2. Connect the second frame-side with brackets to the assembled portion of the frame.
3. To install the graphic, take the corner with the pull tag on it and press about 6"-10" of silicone into the frame channel
corner A. Repeat for the opposite corner B. Repeat for the next corner C. Lastly, repeat for the final corner D.
4. After all corners are pressed in, press the silicone into the frame channel at the mid-points on all four sides.
5. Press silicone into frame evenly between the corners and midpoints.
This prevents the graphic from bunching up or stretching too much and will ensure a smooth and tight fit.
6. To remove the graphic from the frame, simply pull up on the pull tag.
7. FOR XSMB SERIES ONLY: Repeat graphic installation for reverse side (not shown).
NOTE: For assembly purposes, product shown below is a generic frame. Although the number of support bars and size
of frame may differ, instructions remain the same.
XSMA, Single-Sided Frame
1.
XSMB, Double-Sided Frame
Floor Mounted Frame
2.
3.
B
C
A
pull tag
5.
Single Brackets for
Wall Mount
Double Brackets for
4.
D
6.
pull tag
Version: 2
Floor Mount
Page 1 of 2
