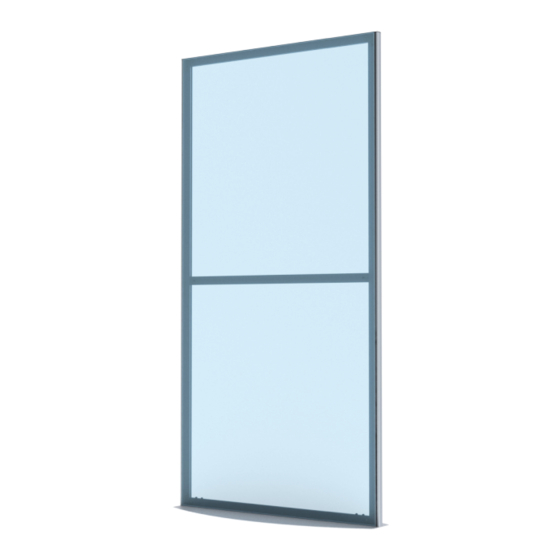

Charisma SEG Epic Stand™ - XS Series
1. Connect all sides of the frame using the hex screws and hex key provided,
but do not full tighten. Once all sides are connected, fully tighten all corners.
Note: -U units have uprights preattached to vertical frame sides.
2. Crossbar installation required for 96" high units ONLY: Use the hex key provided
to loosen the end brackets fully, place the crossbar in the channel of the
frame, then tighten the end brackets to secure the crossbar in place.
3. Connect the base to the frame using the screws and nuts provided.
4. install the graphics per instructions shown on the next page.
1. Without Upright
1.
1.
2.
2.
1. With Upright
1.
1.
Upright
pre-attached
3. XSE
XSE-U
XSE36 shown
2.
3. XSQ
XSQ-U
Without uprights
XSE48 shown
3. XSR48
With uprights (-U)
Elliptical - XSE
Roll-around - XSR
Mini Marquis - XSQ
XSR-U
Version: 1
Page 1 of 2
Advertisement
Table of Contents
Related Manuals for Testrite Visual Charisma SEG Epic Stand XS Series
Summary of Contents for Testrite Visual Charisma SEG Epic Stand XS Series
- Page 1 Without uprights With uprights (-U) Charisma SEG Epic Stand™ - XS Series Elliptical - XSE 1. Connect all sides of the frame using the hex screws and hex key provided, but do not full tighten. Once all sides are connected, fully tighten all corners. Note: -U units have uprights preattached to vertical frame sides.
- Page 2 Charisma SEG Epic Stand™ - XS Series Graphic Installation 1. To install the graphic, take Corner A with the pull tag on it and press about 6”-10” of silicone into the frame channel. Repeat for the opposite Corner B. Repeat for Corner C. Lastly, repeat for the final corner. 2.
