- Page 1 Ultrasonic Testing Device for Preventive Maintenance User Documentation: Airborne Sound Sensor BS10...
- Page 2 © SONOTEC Ultraschallsensorik Halle GmbH All rights reserved. Revision: 1.0; Date: 2017-11-06 Subject to technical modifications...
-
Page 3: Table Of Contents
Content Information on this document ......................5 General ............................5 Symbols used ..........................6 Description of the airborne sound sensor BS10 ................7 Applications and designated use ....................7 Functioning ............................. 7 Connections, operating and display elements ................8 Airborne sound sensor BS10 accessories ................... 10 Device identification/type label ..................... - Page 4 Airborne Sound Sensor BS10 (This page has been deliberately left empty) II - I - 4 Revision: 1.0; Date: 2017-11-06...
-
Page 5: Information On This Document
Information on this document 1.1 General This document forms part of the airborne sound sensor BS10 and should therefore be stored in its immediate vicinity where it can be accessed by all operators at any time. It contains all the instructions to ensure safe operation of the airborne sound sensor with the SONAPHONE, as well as all the information needed to ensure proper and efficient use. -
Page 6: Symbols Used
Airborne Sound Sensor BS10 1 Information on this document 1.2 Symbols used Hazards or special information are indicated in the following ways: Warns of possible imminent dangers which, if ignored, may lead to lasting adverse health effects and/or serious material damage. -
Page 7: Description Of The Airborne Sound Sensor Bs10

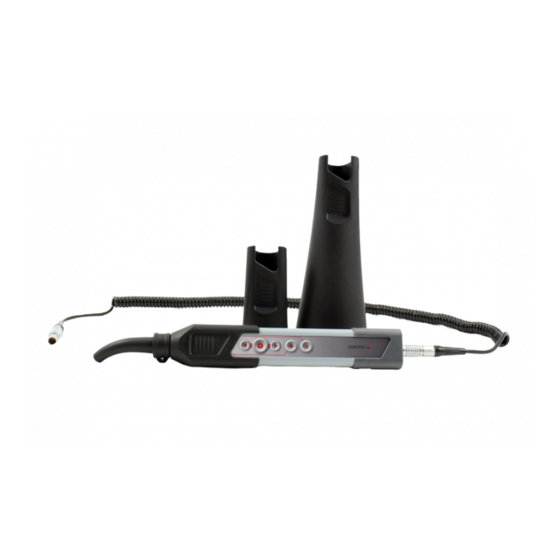

Airborne Sound Sensor BS10 Description of the airborne sound sensor BS10 2.1 Applications and designated use The airborne sound sensor with accessories for different testing work has been specially designed for the following tasks: Detection and evaluation of leaks in compressed air, gas and vacuum systems (depending on the app) ... -
Page 8: Connections, Operating And Display Elements
Airborne Sound Sensor BS10 2 Description of the airborne sound sensor BS10 2.3 Connections, operating and display elements Operating and display elements Sensor accessory: Small acoustic horn (standard) Adjusting the volume Starting/stopping the measurement recording Target laser on (press and hold) - Page 9 Airborne Sound Sensor BS10 2 Description of the airborne sound sensor BS10 Sensor elements Target laser (do not look into the beam! Laser class 2) Ultrasonic microphone LED light (torch) Connections USB connection (for service work only) Socket for sensor cable with marked plug-in position II - I - 9 Revision: 1.0;...
-
Page 10: Airborne Sound Sensor Bs10 Accessories
In order to guide signals to the ultrasonic microphone on the airborne sound sensor BS10 in a high-quality format, a number of different attachments are available for different testing tasks. In order to ensure optimal results, please observe the fields of application for the accessories as well as the corresponding instructions. -
Page 11: Device Identification/Type Label
Airborne Sound Sensor BS10 2 Description of the airborne sound sensor BS10 Precise locator BS10-1 (optional) Attachment for airborne sound sensor BS10 Application: Precise location of damaged areas at close range The precise locator BS10-1 is used in close range applications for the accurate verification of ultrasonic signals. -
Page 12: Operation Of The Airborne Sound Sensor
Airborne Sound Sensor BS10 Operation of the airborne sound sensor Risk of injury to eyes The target laser (laser class 2) can cause serious eye damage. Never look into the laser beam. Never direct the laser at other people or vehicles. -
Page 13: Operation Via The Buttons On The Sensor
Airborne Sound Sensor BS10 3 Operation of the airborne sound sensor 3.2 Operation via the buttons on the sensor Measurements can be controlled via the touchscreen on the device or via the buttons on the sensor itself. The acoustic playback volume can be adjusted using the function buttons. Testing can also be started and stopped. -
Page 14: Disposal
Airborne Sound Sensor BS10 Disposal Electrical and electronic equipment can pose serious health and environmental risks if it is not properly disposed of. For this reason it must not be disposed of in domestic waste according to WEEE directive 2012/19/EU (Waste Electrical and Electronic Equipment Directive) but separately at designated collection points or has to be sent back to the manufacturer. -
Page 15: Warranty
The recording of valid test results, the interpretation of these results and any measures that are derived as a result are exclusively the responsibility of the user. SONOTEC does not assume any guarantee for the correctness of the recorded test values or test results. SONOTEC accepts no liability for any errors or damages that arise as a result of the further use of the recorded test and measurement values. - Page 16 MANUFACTURER Headquarters SONOTEC Ultraschallsensorik Halle GmbH Nauendorfer Str. 2 06112 Halle (Saale) Phone: +49 (0)345 133 17-0 Fax: +49 (0)345 133 17-99 Email: sonotec@sonotec.de Internet: www.sonotec.de USA contact details SONOTEC US Inc. 190 Blydenburgh rd Suite 8 2nd floor Phone:...
- Page 17 Technical Data Sheet Airborne sound sensor BS10 The airborne sound sensor BS10 with comprehensive accessories has been specially designed for the following testing work in combination with the SONAPHONE: • Detection and evaluation of leaks in compressed air, gas and vacuum systems •...
- Page 18 Technical Data Sheet Airborne sound sensor BS10 Standards and EMC Directive 2014/30/EU; WEEE Directive 2012/19/EU; guidelines RoHS Directive 2011/65/EU; ASTM E1002-2005 Accessories Attachments to boost the acoustic signal strength: (some of which are optional) Small acoustic horn BS10-2 for close range...
