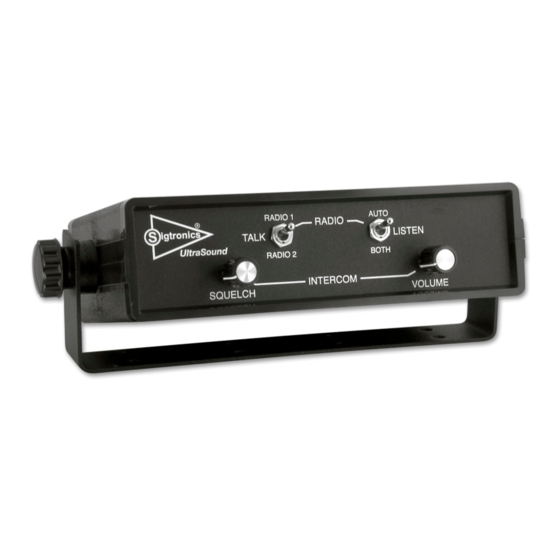

Sigtronics UltraSound Tactical Intercom System
INTRODUCTION
ATTENTION INSTALLER: To assure a trouble free installation,
please read these entire instructions through once before
beginning.
The Sigtronics UltraSound Tactical Intercom System, when used with
Sigtronics noise attenuating headsets provides the tactical transport
crew with clear, hands free, voice activated (VOX) intercom. The
system also allows full radio monitoring at all headset positions as
well as radio transmit capability from selected headsets via Push-
To-Talk (PTT) switches.
Applications: The unit is designed for tactical, rescue and mobile
command center vehicles.
S
igtronics

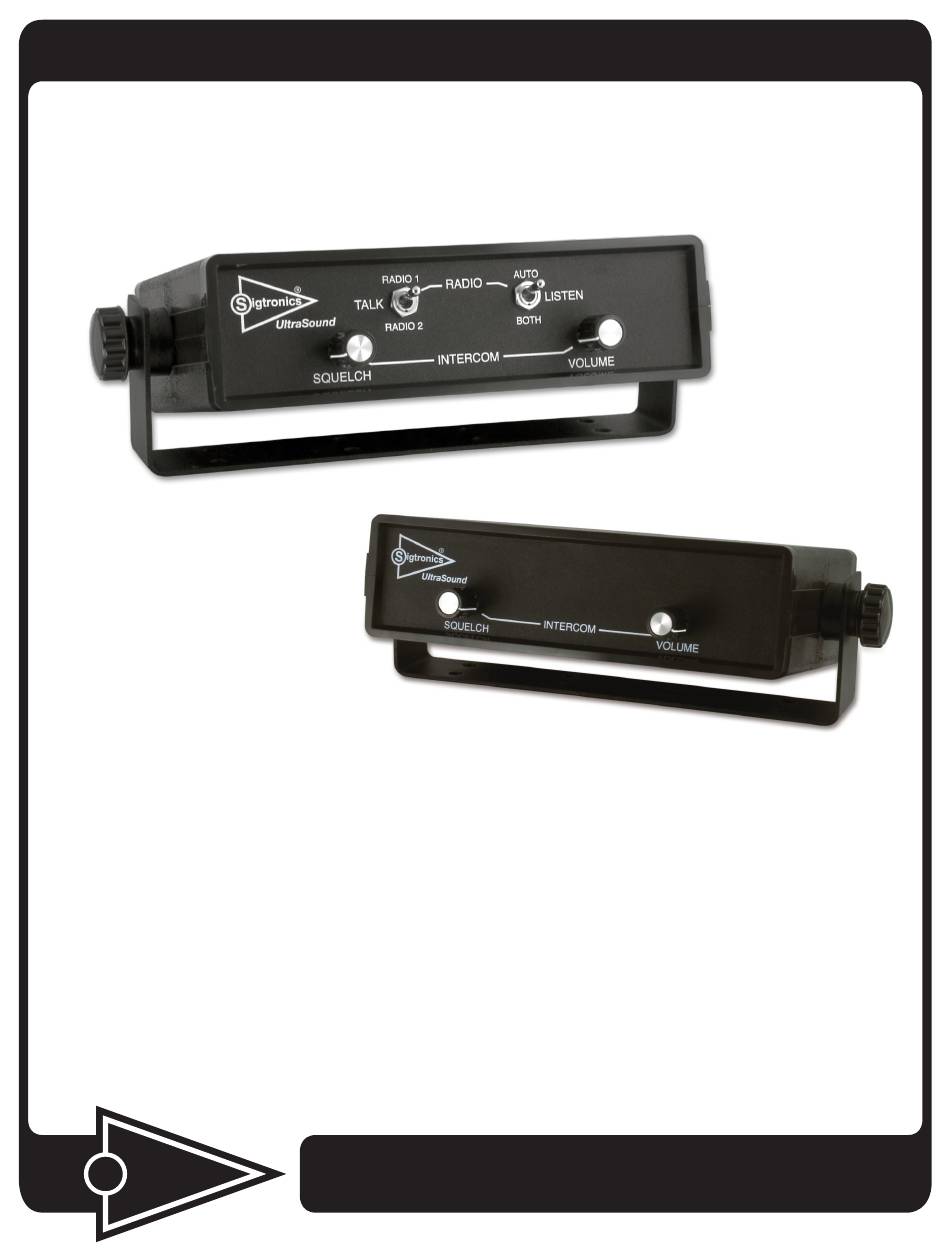

UT-12D and UT-12S
INSTALLATION AND OPERATING INSTRUCTIONS
UT-12S
Specialists in "SOUND" Management
®
178 East Arrow Highway, San Dimas, CA 91773 (909) 305-9399
Voice Activated Intercom (VOX) feature allows "hands free" com-
munication between headsets connected to the UltraSound unit.
Start speaking and the intercom turns on instantly to relay your
message clearly to the other headsets. Stop talking and it turns off
to reduce background noise.
Up to Twelve Headset Positions can be connected to the Ultra-
Sound unit models UT-12S and UT-12D. More headset positions can
be achieved by wiring additional jacks in parallel. Only one headset,
however, can be plugged into paralleled jacks at one time. In the
case of the Driver, he plugs his headset into his jack while driving.
He then unplugs and plugs into the Driver's Auxiliary jack when he
arrives on scene.
UT-12D
Advertisement
Related Manuals for Sigtronics UT-12D
Summary of Contents for Sigtronics UT-12D
- Page 1 (VOX) intercom. The system also allows full radio monitoring at all headset positions as Sound unit models UT-12S and UT-12D. More headset positions can well as radio transmit capability from selected headsets via Push- be achieved by wiring additional jacks in parallel.
-
Page 2: Control Functions
The UT-12D is identical to the UT-12S but can accommodate two operation. Refer to the UltraSound Wiring Diagram. For UT-12S see Figure 4; for UT-12D see Figure 5. If you have any installation separate vehicle radios. questions or problems that are not addressed in this manual, feel... - Page 3 It is assumed that it has already been determined which positions on the vehicle will have headsets. At this stage, it is helpful to have Sigtronics provides two ways to mount the headset jacks for the a headset handy to physically gauge the best place for a particular UltraSound unit: jack.
- Page 4 Figure 3. Both jack insulating washers must be used. The Jacks have to be insulated from mounting spot to minimize Refer to the UltraSound Wiring Diagram for the exact wiring infor- mation. Figure 4 for UT-12S and Figure 5 for UT-12D intercoms. Ut-12S Ut-12d i...
-
Page 5: Headset Jack
2) CONNECT EITHER WHITE WIRE TO THE RADIO PUSH-TO-TALK (PTT) KEY LINE INPUT. (J4-7) TAN CONNECT THE REMAINING WHITE WIRE TO THE PTT KEY LINE RETURN (PTT LO). CREW #10 HEADSET JACK – (J4-8) TAN Ut-12S Ut-12d i SigtronicS igtronicS ltra oUnd ntercomS... - Page 6 BARREL Common Return CREW #4 WHITE HEADSET JACK CREW #5 HEADSET JACK – (J4-3) TAN UT-12D (DUAL RADIO) WIRING DIAGRAM CREW #6 HEADSET JACK – (J4-4) TAN CREW #7 HEADSET JACK – NOTES: (J4-5) TAN 1) CONNECT EITHER VIOLET WIRE TO THE RADIO SPEAKER HI OUTPUT.
- Page 7 4. Check specific “bad” headset jack wiring for: units are designed for negative ground vehicles only. They can be used on positive ground vehicles only if a Sigtronics Positive a) Microphone wire (jack ring terminal) open or shorted to Ground Adapter is used. Contact your Sigtronics dealer on pricing ground.
- Page 8 7. With the vehicle still in “PARK” or “NEUTRAL” and brakes set, slowly power and the UltraSound red wire will usually accomplish the Ut-12S Ut-12d i igtronicS ltra oUnd ntercomS...
- Page 9 Transmit Gain (labeled MIC XMIT GAIN) adjustment for the the equipment causing the noise. Contact the company that radio (or both radios for UT-12D) is also provided on the back of the makes the offending equipment for a recommendation on UltraSound unit.
- Page 10 Radio Troubleshooting Guide: The preferred way to solve this type of problem is to have NOTE: For dual radio units (UT-12D) it is far easier to troubleshoot with the vehicle’s electrical / charging system serviced. The most only one radio connected to the Sigtronics UltraSound unit at a time.
- Page 11 3. With the radio’s hand mic, transmit as normal, to the remote station. Transmit long enough so that the receiving station can This completes the UltraSound installation. get “calibrated” to your transmission (voice) level. Ut-12S Ut-12d i SigtronicS igtronicS ltra oUnd...
-
Page 12: System Operation
2. To adjust the Intercom SQUELCH for voice activated operation (VOX), it is helpful to have some background noise (truck engine For Dual Radio Units - UT-12D: or…). Turn intercom SQUELCH control all the way counter-clock- The operation of the dual radio UltraSound units are identical to that wise. - Page 13 1.667 1.667 0.2 DIA + 0.01 0.25 0.50 MOUNTING BRACKET BOTTOM VIEW Sigtronics UltraSound Intercom Typical Installation Dimensions 7-18-2011 UltraSound_Installation_Dimensions.pdf Sigtronics Installation Hot Line Number: 1-800-367-0977 ext. 8 igtronics Monday through Friday, 8:00 a.m. to 4:30 p.m. Pacific Time ®...
