INTRODUCTION
ATTENTION INSTALLER: To assure a trouble free installation,
please read the entire instructions through once before
beginning.
Sport 200S SYSTEM SPECIFICATIONS
CONFIGURATION – The Sport 200S Intercom system is specifically
designed for permanent, panel mounted installation in aircraft. The Sport
200S provides voice activated (VOX) intercom and music input for two
headset positions in a small single chassis unit.
STEREO MUSIC INPUT – Music input accepts standard portable music
headphone or line level outputs. Automobile
Speaker level outputs can be adapted for use with Sport 200S systems.
COMPATIBILITY – Sport 200S intercoms have been designed to operate
with all standard general aviation aircraft radios and headsets.
SIZE: Panel – 1" x 2½". Chassis – 1" high x 2½" wide x 4" deep.
Can be mounted either horizontally or vertically in the aircraft panel.
WEIGHT: 5.5 ounces (Sport 200S intercom unit with panel and knobs).
Jacks and wiring harness weigh 6.0 ounces
INPUT POWER: 11 VDC through 32 VDC. Maximum current drain 0.11 Amps
DISTORTION: Less than 1% total harmonic distortion.
WARRANTY: Sport 200S intercoms are constructed of high quality
components and carry a five year parts and labor warranty.

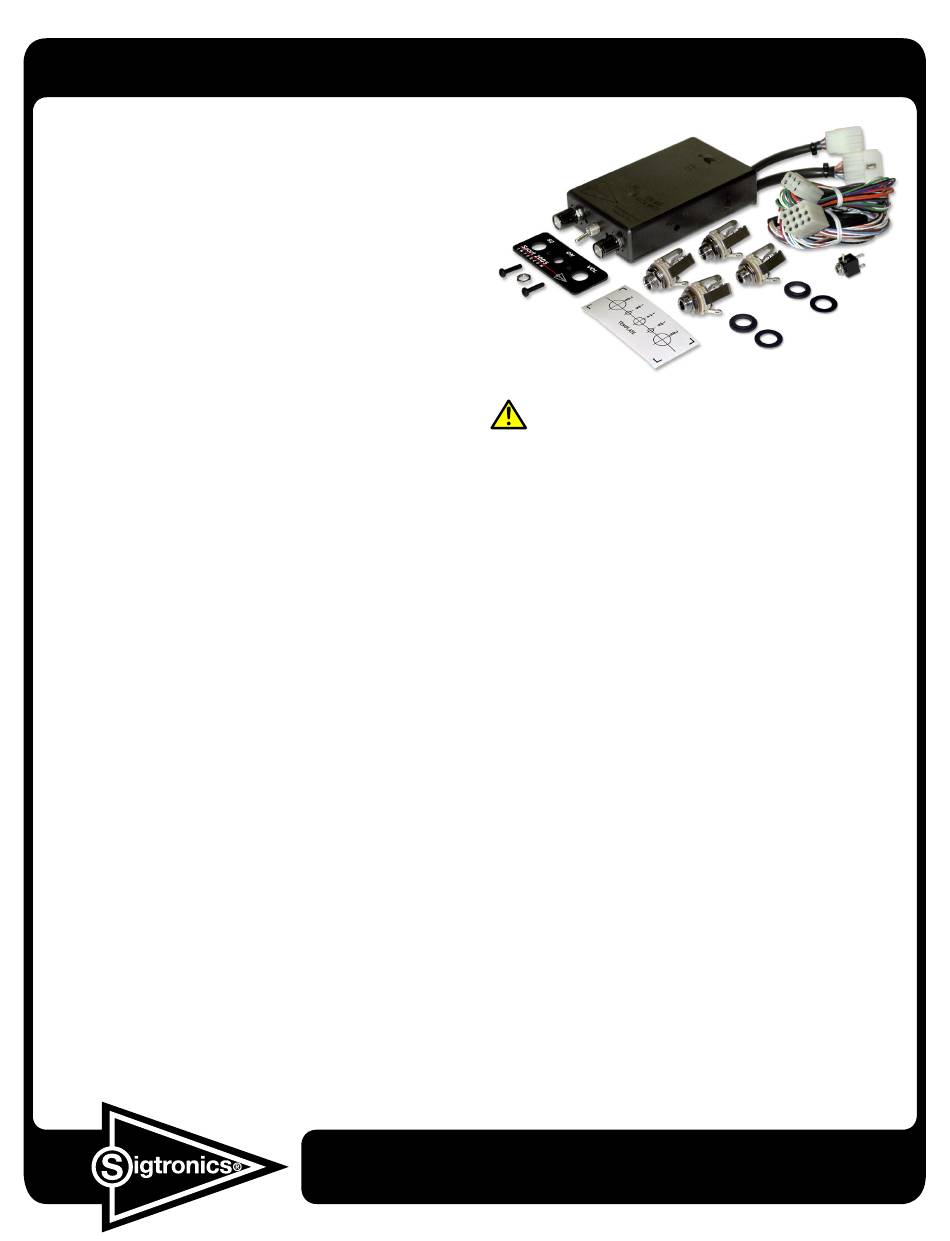

HARDWARE SUPPLIED

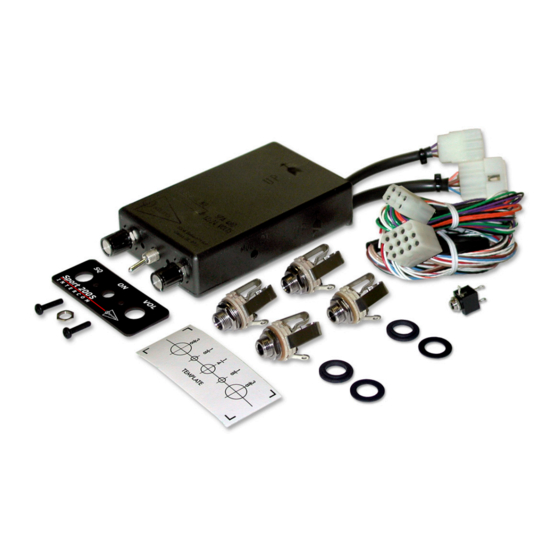

Besides the intercom unit and instructions, each
comes with the following hardware:
Headphone Output Jacks - Accept standard 0.250" aircraft
stereo headphone plugs. ......................................................................................... 2
Microphone Input Jacks - Accept standard 0.206" aircraft
microphone plugs. (U93 plug compatible jacks can be used in
place of the jacks provided – monaural installations only). ....................... 2
Mic Jack Insulating Washers, Flat .......................................................................... 2
Mic Jack Insulating Washers, Shoulder ............................................................... 2
Intercom Panel - lettered on both sides. ........................................................... 1
Intercom Control Knobs ........................................................................................... 2
Mounting Screws 4-40 x 1/2 ................................................................................... 2
Drill Template - Adhesive backed hole size pattern for
drilling aircraft panel. ................................................................................................ 1
Intercom / Aircraft Interface Cable (4 feet long) ............................................. 1
Headphone / Music Interface Cable (4 feet long) .......................................... 1
Stereo music input jack 3.5mm ............................................................................. 1
F
ACTORY DEFAULT - PARTIAL MUSIC MUTE DURING ICS - When
listening to music and someone speaks on the intercom the default
factory operation is to partially mute the music so you can hear the
conversation. The Sport 200S intercoms have one additional option
that can be enabled if desired. This option is enabled with the intercom
removed from the aircraft.
system FULL MUSIC MUTE DURING ICS OPTION - The music can be completely
Sport 200S
muted during intercom conversations. To enable this option, small jumper
wires are installed on the solder side of the circuit board.
The Sport 200S unit has been designed to mount either horizontally or
vertically in your aircraft panel. The location selected for the unit requires
a minimum front panel area of 2½" by 1". Depth required behind panel is
4" plus cable access.
CAUTION: Move the aircraft flight controls through the limits of travel
while observing the selected area and making sure that the rear of the
intercom and cable will not interfere with any aircraft control components.
1. Position the adhesive drill template on the aircraft panel in the selected
area.
2. Center punch each hole at the cross lines. (Five holes are in a straight
line and equally spaced 0.4" apart)
3. Drill ¹ ⁄ ₈ " pilot holes in all five places.
4. Enlarge holes to ¼" and ³ ⁄ ₈ " per the template.
Specialists in "SOUND" Management
178 East Arrow Highway, San Dimas, CA 91773 ( 909 ) 305-9399
WARNING: This product can expose you to chemicals including
Polyvinyl Chloride, which is known to the State of California to
cause cancer, and Lead, which is known to the State of California
to cause birth defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.
MUSIC MUTE OPTIONS
CHASSIS INSTALLATION
Unit Placement
Panel Preparation
