6.0 OPERATION

The TFT VORTEX Nozzle allow the stream pattern to be infi nitely varied from a straight stream to a uniformly dispersed VORTEX
pattern. Typical stream results are shown in Figure 6.0A.
Straight Stream Pattern
The VORTEX includes a label indicator for the user to confi rm when the VORTEX is at the straight stream or in a VORTEX dispersed
position. As seen from the operating position behind the nozzle, actuating the VORTEX indicator counterclockwise moves into the
straight stream position. Actuating the VORTEX indicator clockwise will result in an increasingly wider pattern until reaching the full
VORTEX pattern.
Pivoting the vanes has virtually no eff ect on the fl ow area or ability to pass large debris. As a result, discharge pressure and fl ow rate
remain constant regardless of stream pattern.
Manual override is possible on ER models by using the 5/16" hex head to drive the motor shaft. Manual versions include a crank
for actuating the VORTEX. Turning the shaft clockwise moves the nozzle towards a straight stream pattern. Turning the shaft
counterclockwise moves the nozzle to the dispersed VORTEX spray pattern. Do not force the shaft further after it stops fi rmly at each
end of stroke. Exceeding 60 in-lb (6.8 N·m) can damage the actuator.
The electric drives are current limited but may still produce enough force to cause injury. To avoid
CAUTION
injury from a moving monitor:
©Copyright Task Force Tips LLC 2018 - 2020
Straight Stream
• Be aware that the monitor may be remotely operated
• Keep hands and fi ngers away from pinch points on the monitor
• Never operate the manual override while electric controls are in operation
Full VORTEX Pattern

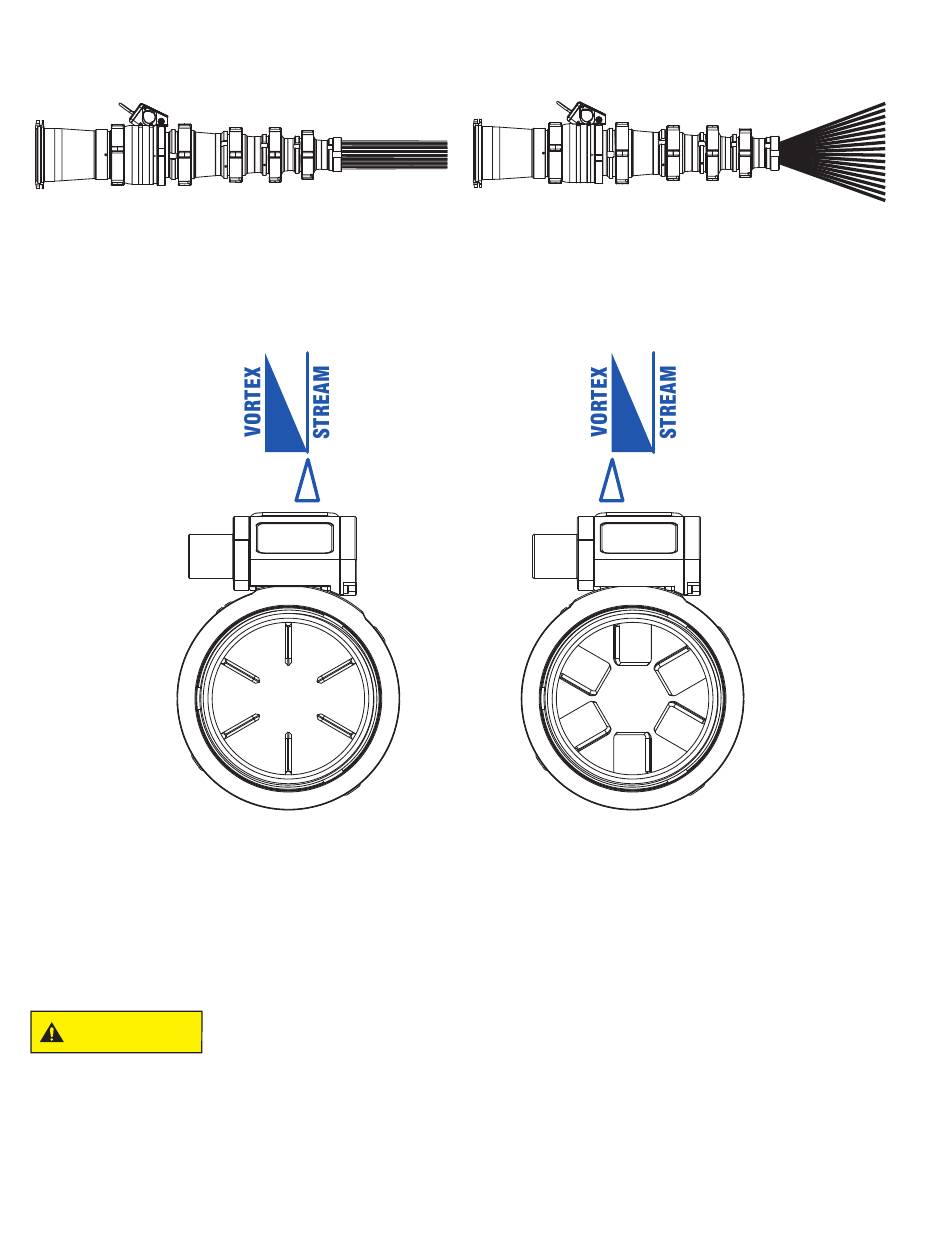

Figure 6.0A
