5.2.1 VORTEX 3 AND 3 ER ORIENTATION

The coupling on the VORTEX 3 or 3 ER is locked to the body. Once installed on the monitor, the orientation of the VORTEX can be
changed to position the motor housing appropriately for your installation. Instructions to orient the VORTEX are shown below.
1. Thread the VORTEX 3 on the monitor just until the gasket
starts to compress.
2. Back the set screw out (2) turns using a 5/32" hex key
3. Turn the VORTEX until it is oriented to the desired position.
4. Tighten the set screw to 45 in-lb.
5. Fully tighten the Vortex on the monitor.
Failure to tighten the set screw may allow the VORTEX to spin on it's coupling while fl owing water
CAUTION
in the dispersed VORTEX pattern.
Free spinning could result in injury or equipment damage. Set screw must be tightened to 45 in-lb.

5.3 VORTEX 6 ER INSTALLATION

The VORTEX 6 ER is intended to be installed in place of the straight section of the YST-8NX Tsunami Stacked Tips and paired with
stacked tips or smooth bores.
©Copyright Task Force Tips LLC 2018 - 2020

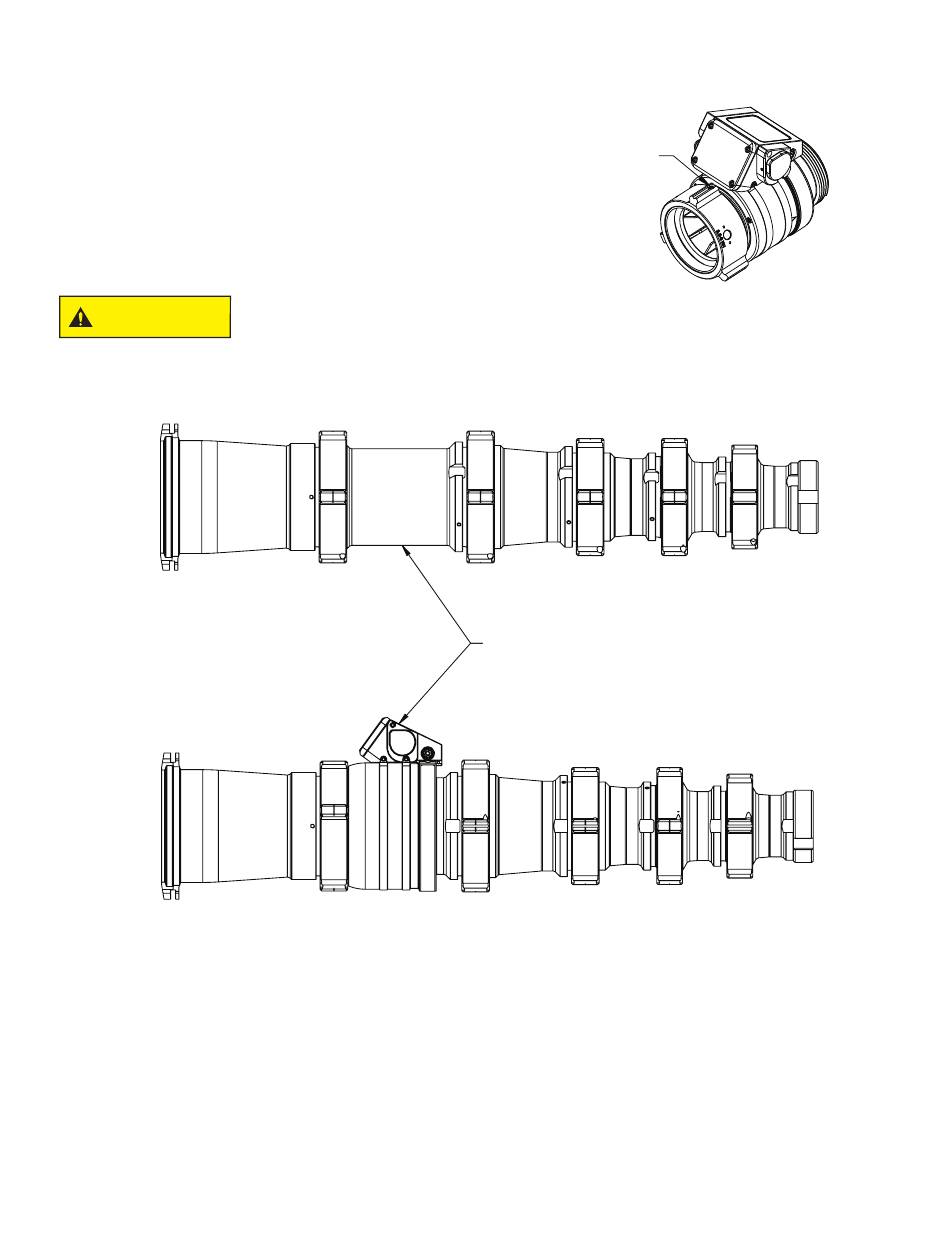

SET SCREW
VORTEX 6 REPLACES STRAIGHT SECTION
Figure 5.3
