LSI ENTERPRISE Series Installation & Assembly Instructions

ENTERPRISE / INTREPID / LEXINGTON PT Series
INSTALLATION & ASSEMBLY INSTRUCTIONS
WARNING: BEFORE PROCEEDING, READ ALL INSTRUCTIONS CAREFULLY TO INSURE PROPER & SAFE INSTALLATION.
WARNING: RISK OF FIRE OR ELECTRICAL SHOCK. DISCONNECT POWER BEFORE INSTALLING OR SERVICING.
WARNING:
ALL WIRING TO BE PER NATIONAL & LOCAL ELECTRICAL CODES, BY A LICENSED QUALIFIED ELECTRICIAN.
IMPORTANT: WHEN LAMPING ALWAYS WEAR EYE PROTECTION. MAKE SURE AREA BELOW FIXTURE IS CLEAR.
NOTE:
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
NOTE:
IF LAMP IS INSTALLED DIRTY, OPERATING HOURS & PERFORMANCE WILL SIGNIFICANTLY DECREASE.
LUMINAIRE ASSEMBLY:
ASSEMBLY TOOLS REQUIRED:
3/16" HEX KEY WRENCH
5/32" HEX KEY WRENCH
NOTE: PACKAGING MATERIALS SHOULD BE USED TO
PROTECT PAINT FINISH WHEN ASSEMBLING
FIXTURES & POLES ON PARKING LOT SURFACE
OR GROUND.
MAKE CERTAIN THE POWER SUPPLY IS TURNED OFF
BEFORE STARTING INSTALLATION.
MAKE CERTAIN LINE VOLTAGE CORRESPONDS WITH BALLAST
PRIMARY VOLTAGE SELECTED ON BALLAST TERMINAL BLOCK!

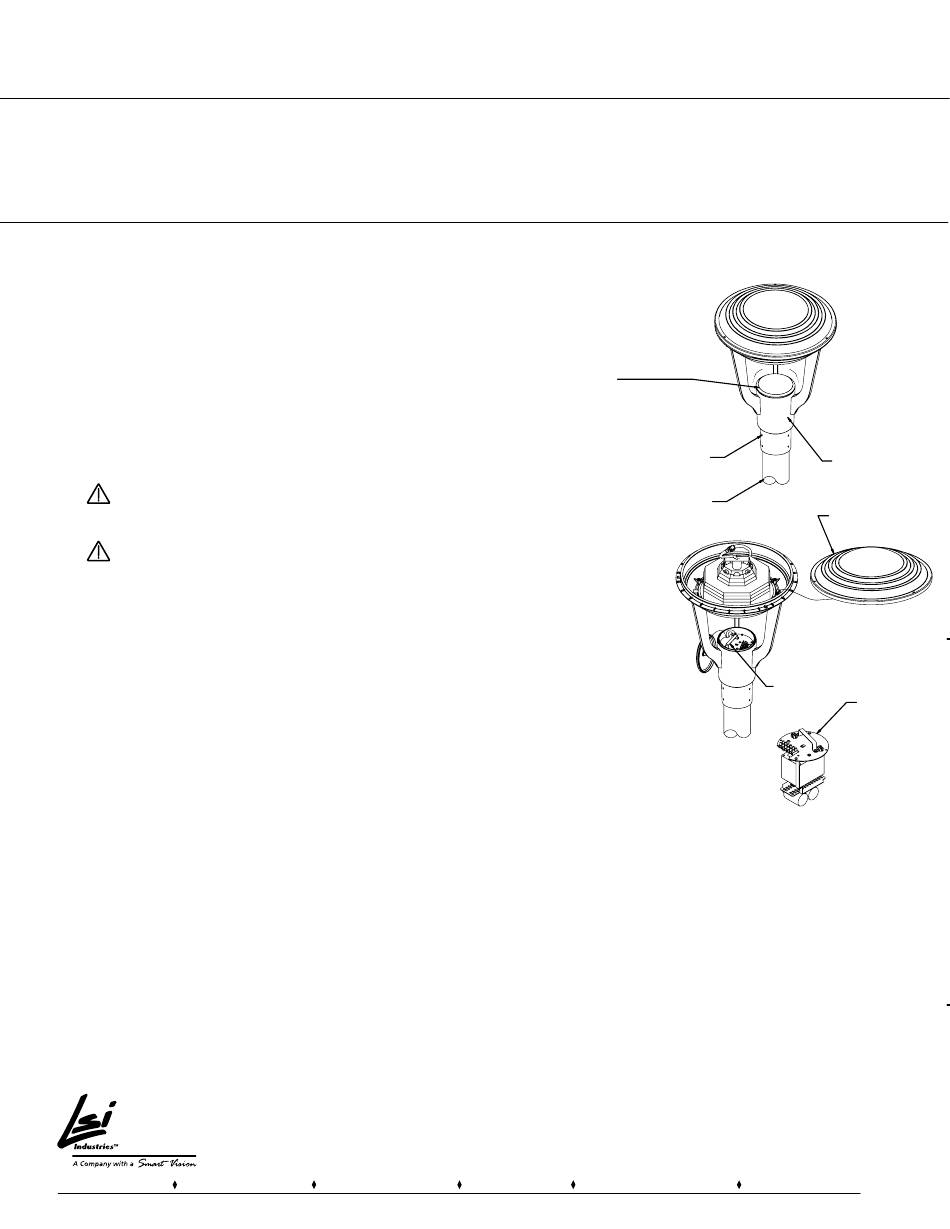

1. CAREFULLY FEED LUMINAIRE LEADS COILED IN SLIPFITTER INTO POLE
TOP WITH FISH TAPE. SLIDE FIXTURE SLIPFITTER ONTO 4" POLE OR TENON.
TIGHTEN SLIPFITTER SET SCREWS (6X) TO 10-12 FT/LBS TORQUE.
2. UNSCREW BALLAST ACCESS COVER BY TURNING COUNTER CLOCKWISE. THE
BALLAST ASSY IS FACTORY INSTALLED, AND SUPPLIED WITH FIXTURE SUPPLY
LEAD WIRES. INSERT FIXTURE SUPPLY LEAD WIRES INTO CORRECT VOLTAGE POSITION
ON BALLAST ASSEMBLY TERMINAL BLOCK. TIGHTEN TERMINAL SCREWS TO 4.4 IN/LBS TORQUE.
CONNECT LAMP CONNECTOR TO THE BALLAST SECONDARY CONNECTOR. REPLACE BALLAST
ACCESS COVER BY SCREWING CLOCKWISE UNTIL COVER SEATS SNUGLY AGAINST O-RING
SEAL. TO SERVICE BALLAST ASSY, DISCONNECT POWER, DISCONNECT SUPPLY LEADS &
SECONDARY CONNECTOR. REMOVE 10-24 HEX SKT CAP SCREWS (2X) & LIFT ASSY BY HANDLE
TO REMOVE.
3. FIXTURE MAY NEED TO BE ROTATED ONCE POLE IS ERECTED. LOOSEN SLIPFITTER
SET SCREWS & ROTATE FIXTURE ASSEMBLY TO PROPERLY ORIENT REFLECTOR PER
THE SITE LIGHTING PLAN. TYPE 2, 3, & FP/FT REFLECTORS HAVE BEAM DIRECTION
LABELS INDICATING DIRECTION OF REFLECTOR BEAM. ONCE FIXTURES ARE ROTATED
PROPERLY, RE-TIGHTEN SLIPFITTER SET SCREWS (6X) TO 10-12 FT/LBS TORQUE.
LSI Industries Inc. 10000 Alliance Road
TORX T-25 DRIVER
FISH TAPE
Cincinnati, OH 45242
PAGE 1
Ballast Access
Cover
Turn Counter Clockwise To Remove
Turn Clockwise To Replace Cover
Slipfitter
Set Screws
(6x)
513-793-3200 www.lsi-industries.com
Slipfitter
Pole
Fixture Top
Cap (Int Shown)
Ballast
Assy Ballast
Assy
(Shown
Removed)
Fax (513) 984-0147
ENTINTLEXPTINST P/N 312658 REV 3/07
