INSTALLATION AND ASSEMBLY INSTRUCTIONS
TMWP | TLWP | MCOWP Series
IMPORTANT: READ BEFORE REMOVING FIXTURE FROM CARTON. RETAIN
FOR FUTURE REFERENCE
SAFETY: This fixture must be wired in accordance with the NATIONAL ELECTRICAL CODE and
applicable local codes and ordinances. A person familiar with the construction and operation of the
product and the hazards involved must install this product. A qualified licensed electrician should
complete all work. Proper grounding is required for safety.
WARNING: Make certain power is OFF before installing or maintaining fixture.
RISK OF INJURY: Fixture may become damaged and/or unstable if not installed properly.

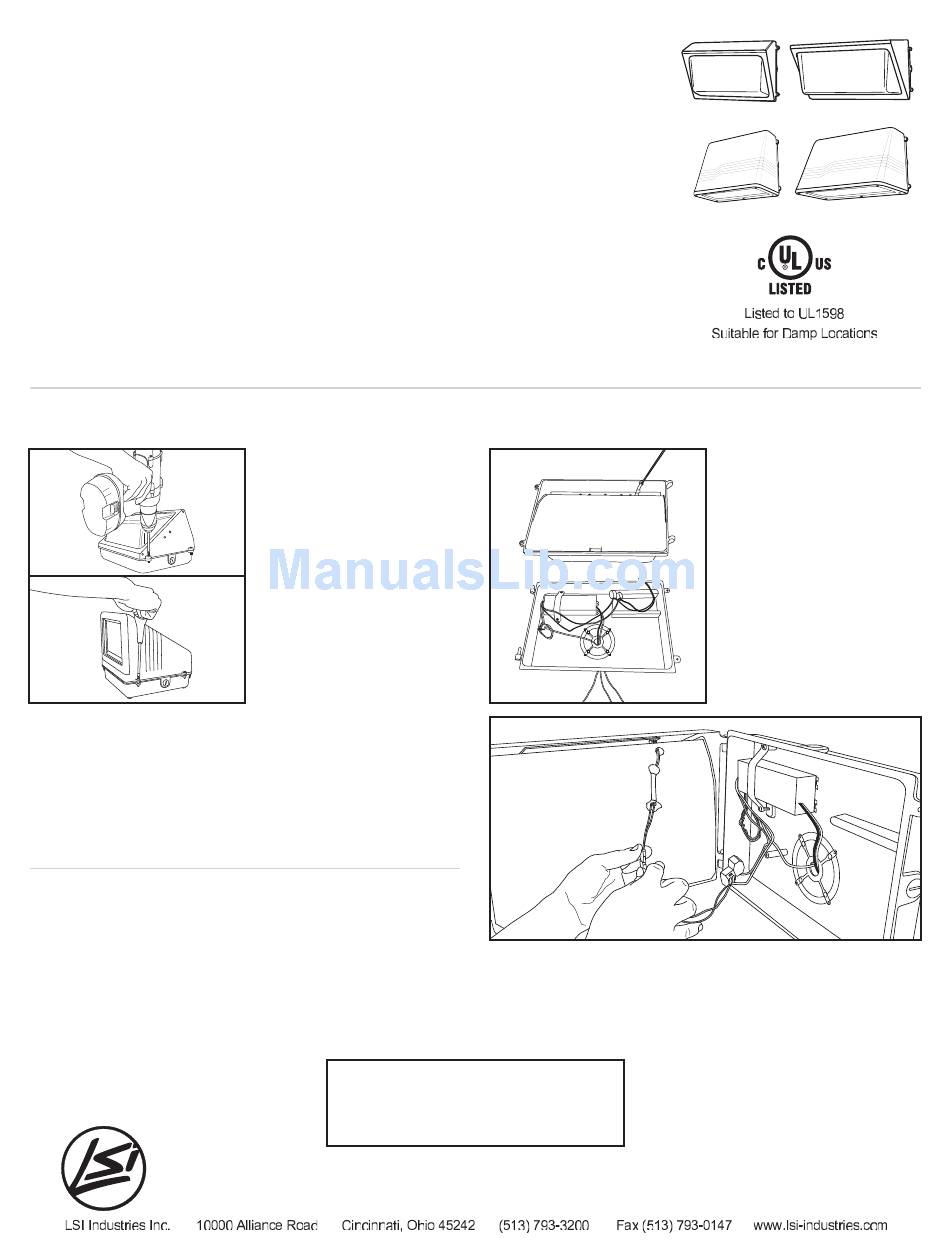

MOUNTING
NOTE: Turn off electrical supply at the breaker. Follow all local electrical codes for wiring and grounding requirements. Fixture must be
located at least 18" below any structural detail. Do not recess fixture.
STEP 3:
Seal with weatherproof silicone
sealant to prevent moisture
from entering the fixture.
Replace front housing, reconnect
plug.
TROUBLESHOOTING
Check that:
1. The fixture is wired properly.
2. The fixture is grounded properly.
3. The photocell, if installed, is proper voltage and wattage.
4. There is no reflected light back into the photo cell, causing the fixture to turn off.
240-134LSI Rev. 02/17
STEP 1:
Loosen two captive screws on
side of housing and remove
front housing. Remove knockout
plug on the back of the fixture.
Drill appropriate points and
attach using appropriate
hardware (not included).
Note: LED fixtures utilizes a
mult-volt (120-277V) that is
auto sensing, no rewiring is
necessary.
STEP 4:
Tighten two captive screws on
side of housing.
Installation Questions?
Call LSI Field Service Department at:
1-800-436-7800 Ext. 3300
Fax: 1-877-861-1368
STEP 2:
Check to make sure that the
supply voltage to the fixture is
compatible with the driver
(120-277). Connect the white
fixture wire to the white supply
wire. Connect the black fixture
wire to the black supply wire.
Connect the green fixture wires
to the ground wire. Make sure
all connections are secure using
approved connecting devices.
