INSTALLATION AND ASSEMBLY INSTRUCTIONS
TMWP Series
IMPORTANT: READ BEFORE REMOVING FIXTURE FROM CARTON. RETAIN FOR FUTURE REFERENCE
SAFETY: This fixture must be wired in accordance with the NATIONAL ELECTRICAL CODE and applicable local codes and
ordinances. A person familiar with the construction and operation of the product and the hazards involved must install this product.
A qualified licensed electrician should complete all work. Proper grounding is required for safety.
WARNING: Make certain power is OFF before installing or maintaining fixture.
RISK OF INJURY: Fixture may become damaged and/or unstable if not installed properly.
JUNCTION BOX MOUNTING (Mount to weatherproof junction box using 1/2" conduit nipple.)
NOTE: Turn off electrical supply at the breaker. Follow all local electrical codes for wiring and grounding requirements. Fixture must be
located at least 18" below any structural detail. Do not recess fixture.

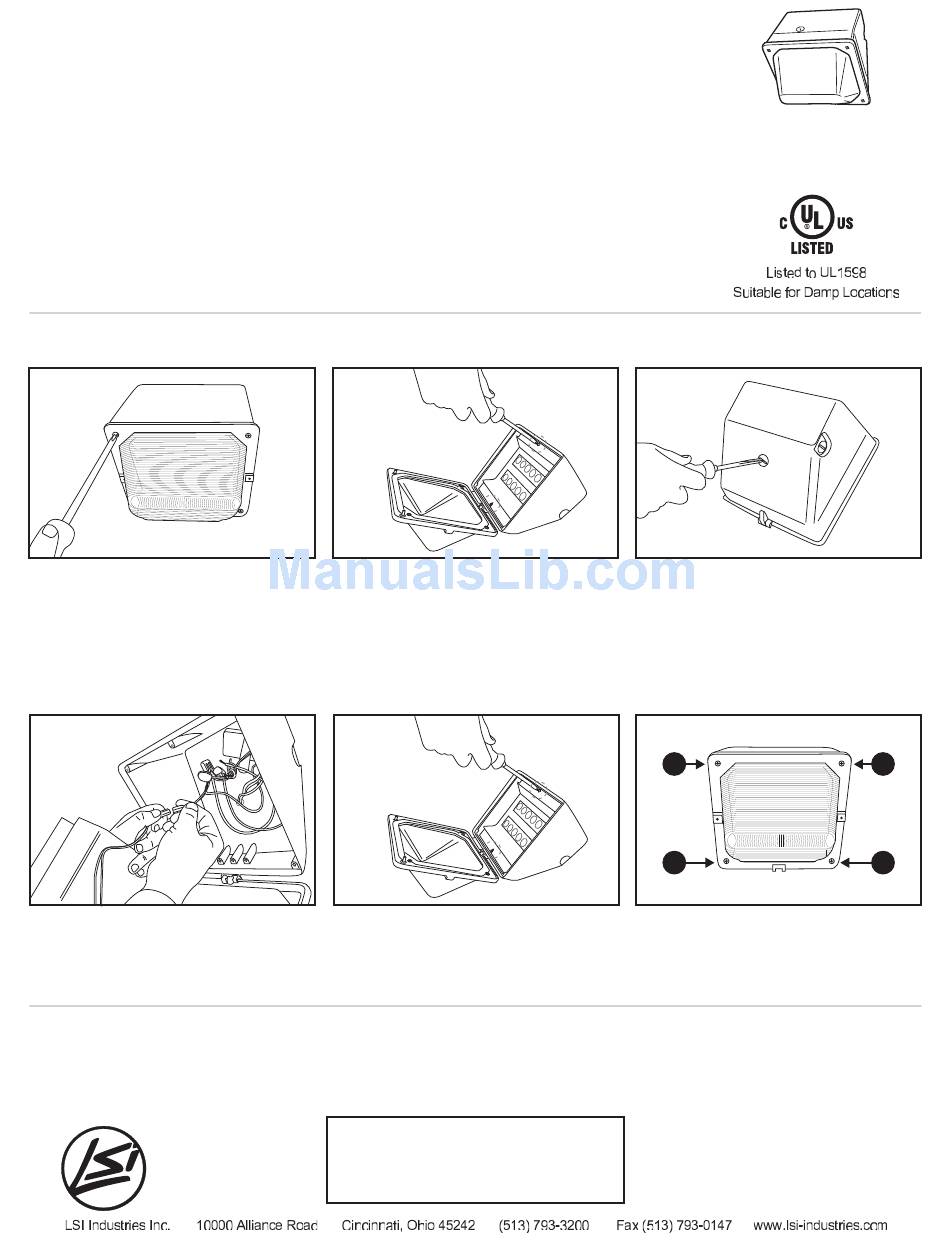

STEP 1:
Open front housing by removing screws.
STEP 4:
Connect assembly connector.
WIRING
Note: LED fixtures utilizes a mult-volt (120-277V) that is auto sensing, no rewiring is necessary. Revise para estar seguro que el
voltaje de suministro al dispositivo sea compatible con la reactancia del dispositivo (120-277V). Conecte el cable blanco del dispositivo
al cable blanco de servicio. Conecte el cable negro del dispositivo al cable negro de servicio. Conecte el cable verde del dispositivo al
cable de puesta a tierra. Asegúrese que todas las conexiones estén seguras usando los dispositivos aprobados de conexión.
240-135LSI Rev. 03/17
STEP 2:
Carefully remove LED Heat Sink assembly
by removing screws (2).
STEP 5:
Replace LED Heat Sink assembly with (2)
screws provided.
Installation Questions?
Call LSI Field Service Department at:
1-800-436-7800 Ext. 3300
Fax: 1-877-861-1368
STEP 3:
Remove knockout plug on the back of the
fixture. Pull supply wires through mounting
plate and make connections as noted in the
wiring section. Attach to mounting box.
Seal with weatherproof silicone sealant to
prevent moisture from entering the fixture
1
3
STEP 6:
Close front housing by tightening the
screws using the following pattern.
©2017 LSI Industries Inc.
4
2
