Vertiv GEIST SA1-01003LNB Quick Installation Manual

GEIST™ S
WITCH
AIRFLOW MANAGEMENT DEVICE
Quick Installation Guide
Models:
SA1-01003LNB
Switch Type:
Rear air intake-front (port) exhaust
switch
CAUTION: Ensure the required
airflow for safe operation of
equipment is not compromised
when installing the Geist SwitchAir
device.
WARNING: Take precaution to
avoid interference with the switch's
input power cords when installing
behind a live switch.
1. Installing the adjustable
rails
Select a 1U space in the rack
and hold one rail between the
front and rear rack uprights.
Lengthen or shorten the
adjustable rail by adjusting the
rear extension tab, loosely
fitting the rail between the
insides of the rack uprights.
Attach the front of the
adjustable rail to the front
upright using only the top hole
of the 1U space. Leave the
bottom front hole open for later
use.
Attach the rear rail extension
tab to the rear rack upright. Use
the center hole of the 1U space
for this attachment.
Repeat this procedure for
installation of the adjustable rail
on the opposite side.
2. Installing the switch
Slide the network switch into
the rails. Using customer-
provided hardware, mount the
switch to the rear rack uprights
using the 1U space's top and
bottom holes.
3. Mounting the SwitchAir
device
The SwitchAir device is not
shipped in the fully extended
A
IR

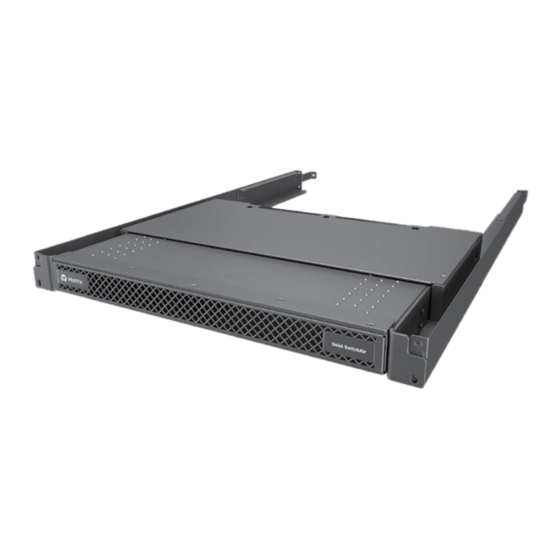

Geist SwitchAir Airflow Management Device
Geist SwitchAir Adjustable Rails
FRONT
Geist SwitchAir Adjustable Rail to Rack Upright Attachment
Top hole
location
Center hole
location
Expand rails to fit
inside uprights
Rack uprights
Top hole
location
BACK
Extension
tab
Center hole
location
1
VM1165/590-2231-501A
