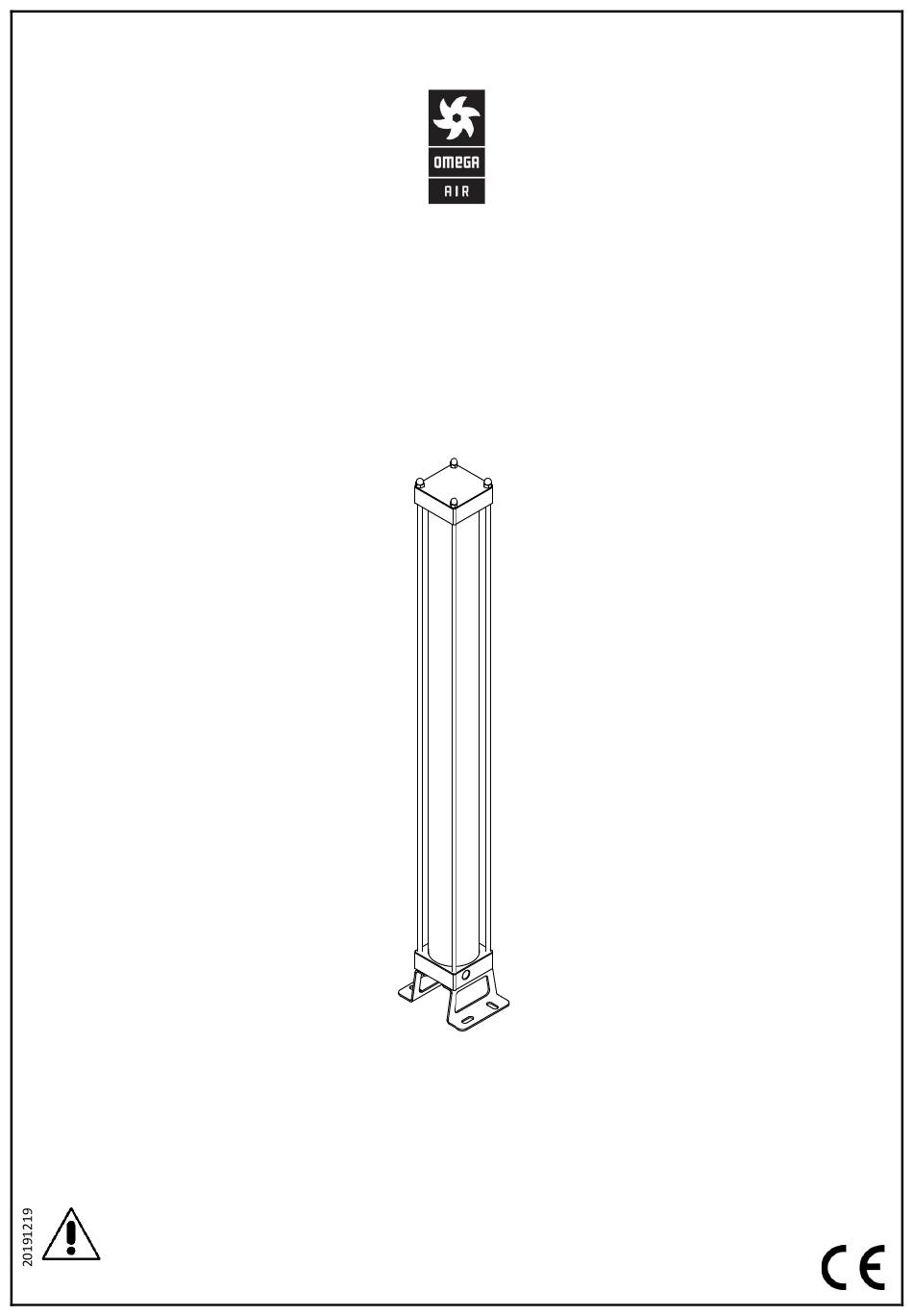

- Page 1 Installation and operating manual TACm Please read the following instructions carefully before installing the product. Trouble free and safe operating of the product can only be guaranteed if recommendations and conditions stated in this manual are respected.
- Page 2 Components Part Body filled with AC Rod with thread Cap nut Top cover Bottom cover Legs Screw...
-
Page 3: Technical Data
TACm - Installation and operating manual Technical data SIZES CONN. VOLUME ADSORBER FLOW CAPACITY* DIMENSIONS ACTIVATED WEIGHT SIZE HOUSING CARBON [inch] [scfm] A[mm] B[mm] C[mm] [kg] [kg] TACm 6 G 3/8” TACm 12 G 3/8” TACm 23 G 3/8” 14,1 1077 TACm 35 G 3/8”... -
Page 4: Safety Instructions
CORRECTION FACTORS To calculate the correct capacity of a given adsorber based on actual operating conditions, multiply the nominal flow capacity by the appropriate correction factor(s). CORRECTED CAPACITY = NOMINAL FLOW CAPACITY x C OPERATING PRESSURE [bar] [psi] 0,38 0,63 0,75 0,88 1,13... -
Page 5: Appropriate Use
• Use the device for appropriate purpose only. Appropriate use TACm series adsorbers are designed for high efficient removal of oil vapours from compressed air and vacuum systems. This appliance must be used only for the purpose for which it was specifically designed. All other uses are to be considered incorrect and will void warranty. -
Page 6: Installation
The manufacturer will under no circumstances be responsible for any damage resulting from improper, incorrect or unreasonable use. Use genuine spare parts only. Any damage or malfunction caused by the use of ungenuine parts is not covered by Warranty or Product Liability. Installation Place the tower on suitable straight surface or pedestal. -
Page 7: Maintenance
TACm - Installation and operating manual Commissioning PRESSURIZATION Rapid pressurization can cause damage to the activated carbon tower! Activated carbon tower should be pressurised extremely slowly through an appropriate valve at the inlet. During the pressurisation process the outlet valve should remain closed and the adsorption dryer should not be operational. -
Page 8: Warranty Exclusion
Warranty exclusion The guarantee shall be void if: • The operating instructions were not followed with respect to initial commissioning and maintenance. • The unit was not operated properly and appropriately. • The unit was operated when it was clearly defective. •... - Page 9 TACm - Installation and operating manual OMEGA AIR d.o.o. Ljubljana Cesta Dolomitskega odreda 10 SI-1000 Ljubljana, Slovenia Tel.: +386 (0)1 200 68 00 Fax.: +386 (0)1 200 68 50 E-mail: info@omega-air.si www.omega-air.si...
