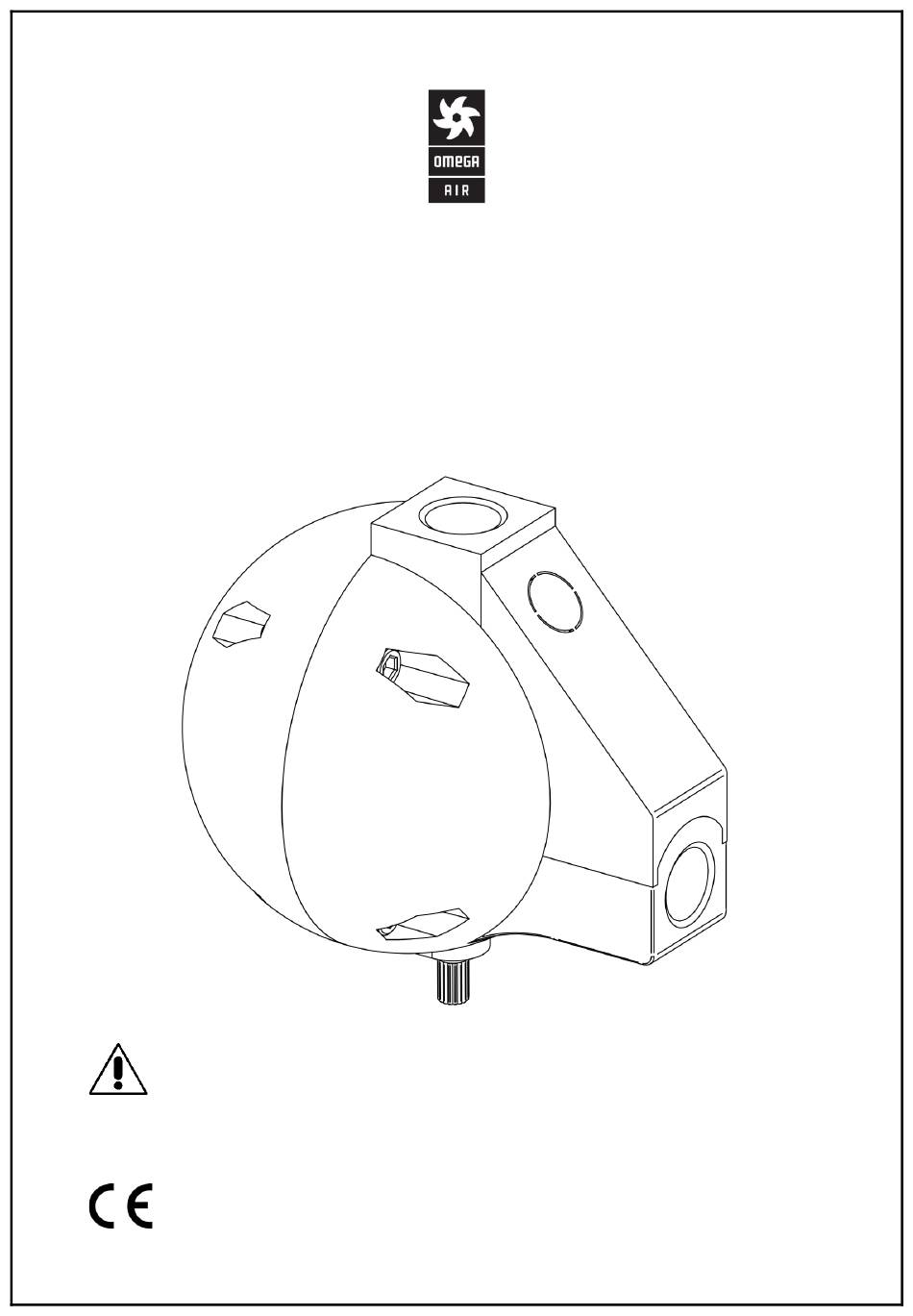

Installation and operating
manual

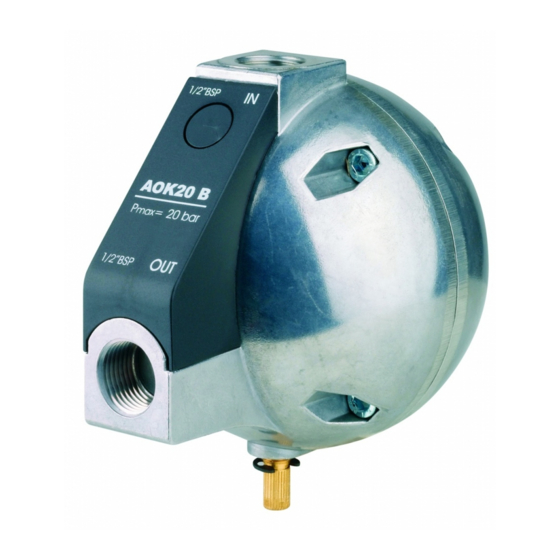

AOK20B
Please read the following instructions carefully before installing automatic drain unit into
service. Trouble free and safe operating of the unit can only be guaranteed if
recommendations and conditions stated in this manual are respected.
Omega Air User Manual AOK20B v2.01 eng
Advertisement
Table of Contents
Related Manuals for OMEGA AIR AOK20B
Summary of Contents for OMEGA AIR AOK20B
- Page 1 Please read the following instructions carefully before installing automatic drain unit into service. Trouble free and safe operating of the unit can only be guaranteed if recommendations and conditions stated in this manual are respected. Omega Air User Manual AOK20B v2.01 eng...
- Page 2 AOK20B - Installation and operating manual Components Part M6 screws Drain housing Manual drain Orifice sealing Floater Housing sealing Drain housing M6 nuts Connection nipple...
- Page 3 AOK20B - Installation and operating manual Technical data Operation pressure range 0 – 20 bar / 0 – 290 psi Minimum reccomended operating pressure 1,5bar (g) 21,8 psi 167 l/h Drain capacity (7 bar / 101 psi) 0,1 scfm 252 l/h...
- Page 4 Use the device for the appropriate purpose only. Appropriate use AOK20B series condensate drain is intended exclusively for the following purpose: Draining condensate from compressed air system (air compressors, air receivers/pressure vessels, air dryers and air filters).
- Page 5 AOK20B - Installation and operating manual Operating Drain is installed bellow pressure vessel, filter element, dryer, cyclone separator or similar pressure system element. Through G ½” connection on the top condensate accumulates in the drain reservoir. Increasing water level rise the floating buoyancy. When the condensate level is high enough the floater unblocks the discharge orifice and the condensate is purged out through G ½”...
- Page 6 Before connecting the drain, blow compressed air through the piping in order to thoroughly clean out any impurities within it. Install the AOK20B at a level below the receiver, if not the receiver will fill up with condensate. Install the optional connection nipple (9) in order to allow air equalisation. The connection receiver-nipple-AOK20B must be done without any extra pipe or filter.
- Page 7 AOK20B - Installation and operating manual RECCOMENDATIONS • We recommend the use of ball valve between pressure vessel and inlet connection. • We recommend the use of strainer element between pressure vessel and inlet connection. • We recommend the use of nipple with venting tube to avoid generation of air bubbles.
- Page 8 AOK20B - Installation and operating manual Warranty exclusion The guarantee shall be void if: The installation and operating manual was not followed with respect to installation, initial commissioning and maintenance. The unit was not operated properly and appropriately. ...
