Contrec 500 Series Operation Manual

Dual stage batch controller for volumetric frequency or analog flowmeters
Hide thumbs Also See for 500 Series:
Table of Contents

Advertisement

Quick Links

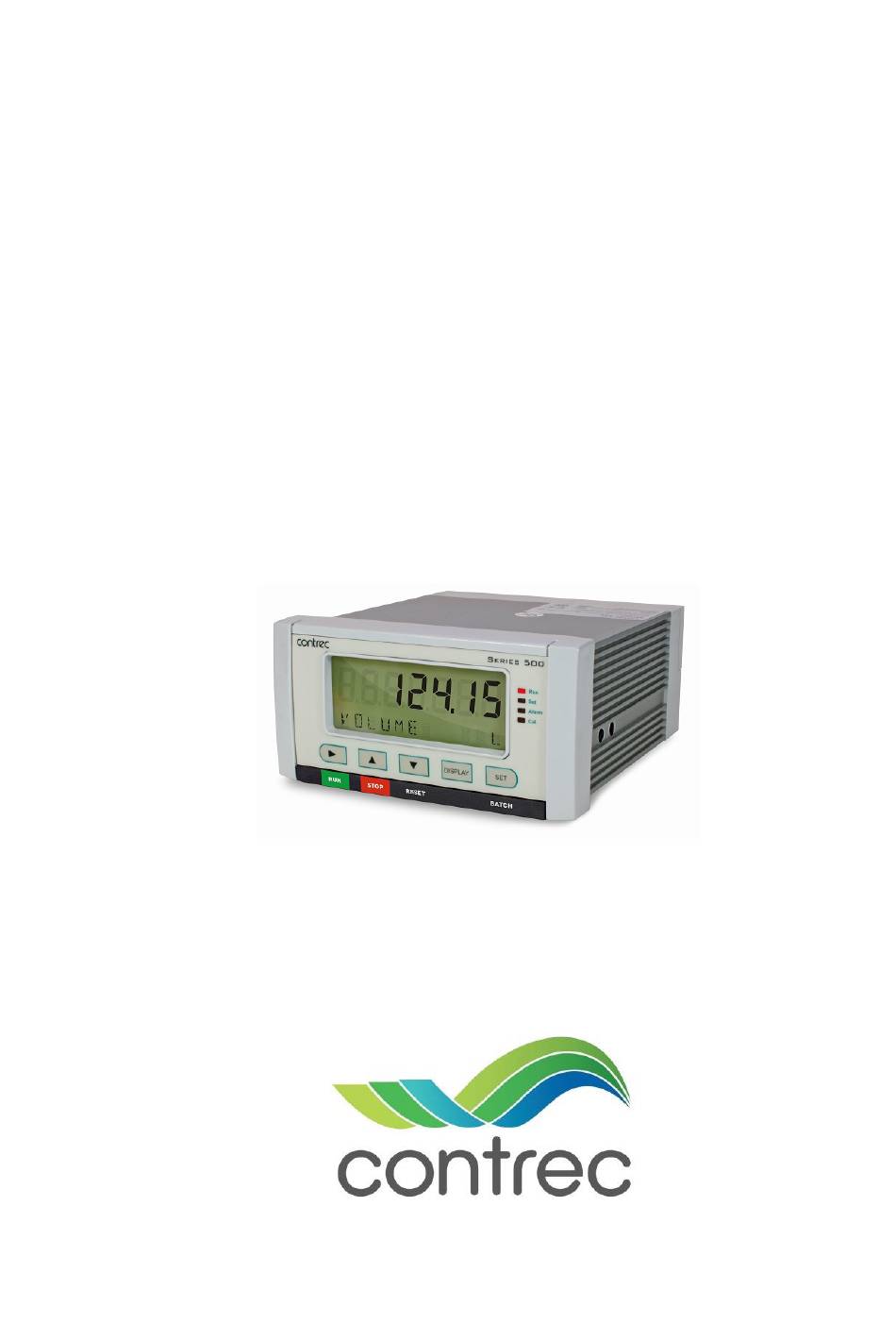

Model 515 Flow Computer
Operation Manual
BC01
Application
Dual Stage Batch Controller
for
Volumetric Frequency or Analog Flowmeters
23 August 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Contrec 500 Series

Summary of Contents for Contrec 500 Series

  • Page 1 Model 515 Flow Computer Operation Manual BC01 Application Dual Stage Batch Controller Volumetric Frequency or Analog Flowmeters 23 August 2019...
  • Page 2 Should any questions arise which cannot be answered specifically by this manual, they should be directed to Contrec Ltd for further detailed information and technical assistance. Contrec Ltd will not accept any liability for either direct or consequential damages resulting from the use or misapplication of the contents of this manual.
  • Page 3 Static Hazard The 500 series flow computer uses high speed CMOS circuitry which is sensitive to static damage. The user should observe accepted safety practices for handling electronic devices, especially during servicing. Once the unit is installed, grounded and interconnected, the chances of static damage are greatly reduced.
  • Page 4 Instrument Disposal Contrec instrumentation should not be thrown into the general waste system. If within EU member states, this instrument should be disposed of according to the guidelines set by the WEEE (Waste Electrical and Electronic Equipment) directive 2012/19/EU. If outside of the EU, this equipment should be responsibly disposed of according to local and national regulations for EEE (Electrical and Electronic Equipment).
  • Page 5 Contents 1 Introduction Features Overview Calculations Analog Input Scaling Displayed Information Main Menu Variables Communications Isolated Outputs Relay Outputs Software Configuration Approvals 2 Specifications Specification Table 3 Installation Panel Mounting Electrical Connection Rear Panel Connections Terminal Designations Inputs Frequency Input Connection Analog Input Connections Logic Input Connection Outputs...
  • Page 6 5 Instrument Calibration Introduction Calibration View Mode Calibration Set Mode Changing the Instrument Settings Program Backup & Reports Backup via 500 Series Program Manager Printing Configuration Report Upload and Clone of Application Software Calibration Menu Tree Instrument Settings Units of Measurement...
  • Page 7 Printer Data Control Appendix A Glossary Glossary Appendix B Model Numbers Product Codes Custom Version Codes Application Information Code Appendix C Units of Measurement Available Units of Measurement Index 515 BC01 - 23 August 2019...
  • Page 8 viii 515 BC01 - 23 August 2019...
  • Page 9 List of Figures Typical Application Diagram Rear Panel Connections Externally Powered Voltage Transmitter Internally Powered Voltage Transmitter Externally Powered Current Loop Internally Powered Current Loops Logic Inputs Connection Diagram Output 4-20 mA Connection Diagram Output Pulse Connection Diagram Relay Connection Diagram RS-485 Interface Connections Batch Operation with Manual or Automatic Reset Batch Operation with Automatic Restart...
  • Page 10 515 BC01 - 23 August 2019...
  • Page 11 Chapter 1 Introduction Features • Caters for volumetric flow inputs from frequency or analog flowmeters • Single or Dual stage control • Quick access to common batch quantities • No-flow, leakage and overflow error detection • Remote RUN/STOP/RESET & BATCH SET functions •...
  • Page 12 Introduction The instrument is compatible with a wide range of flowmeter outputs, including millivolt signals, reed switches, pulse, Namur proximity switches and analog signals. Inputs can be scaled, filtered and have non-linear correction applied. Square law and cutoff points can also be applied to the analog input.
  • Page 13 Introduction Displayed Information The front panel display shows the current values of the input variables and the results of the calculations. The instrument can be supplied with a real-time clock for storage of up to 1000 transactions with time and date stamps. Main Menu Variables Main Menu Default...
  • Page 14 The software is a Windows based program that is freely available from the download section of the Contrec website. The program can be used to create a custom version of an existing application to be saved for backup purposes and/or to generate a PDF of configuration report for record keeping.
  • Page 15 Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Contrec Ltd is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment.
  • Page 16 Introduction 515 BC01 - 23 August 2019...
  • Page 17 Chapter 2 Specifications Specification Table Operating Environment Frequency Input (General) Temperature -20 °C to +60 °C (conformal coating) Range 0 to 10 kHz +5 °C to +40 °C (standard - no coating) Overvoltage 30 V maximum Humidity 0 to 95% non condensing (conformal Update Time 0.3 sec coating)
  • Page 18 Specifications Relay Output No. of Outputs 2 relays plus 2 optional relays Voltage 250 volts AC, 30 volts DC maximum (solid state relays use AC only) Current Maximum 3 A EMR, 1A SSR Communication Ports Ports COM-1 RS-232 port COM-2 RS-485 port (optional) Baud Rate 2400 to 19200 baud Parity...
  • Page 19 The standard mounting procedure is panel mounting in a cutout that is 139 mm wide by 67 mm high. Two side clips secure the unit into the panel. shows the panel mounting requirements for the 500 Series Instrument. Side View...
  • Page 20 Installation Electrical Connection Rear Panel Connections Figure 2 shows the connections on the rear panel of the instrument. RS232 Port 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 G 1+ 2+ 3+ 4+ C- RC R1 R2 R3 R4 RS485 LOGIC INPUT...
  • Page 21 Installation Inputs Frequency Input Connection Connect pulse or frequency input signals from devices such as: TTL, CMOS, open collector, reed relay switch, coil and Namur proximity switch, as shown below. For better signal integrity, it is recommended to use shielded cable. Refer to Terminal Designations on page 10 for specific terminal numbers for this application.
  • Page 22 Installation Analog Input Connections All analog inputs can accept DC signals ranging from 0-5V, 1-5V and current signals from 4 to 20 mA. CAUTION Applying levels of input current above the absolute maximum rating (100mA or 30mA for 4-20mA inputs) may cause permanent damage to the input circuitry.
  • Page 23 Installation Transmitter Analog Input (AINPn) Figure 5 Externally Powered Current Loop The internal overload-protected power supply has sufficient power for three current loops at 24 V DC (more current loops can be supplied by using a reduced voltage setting). Connect internally powered current loops as shown in Figure 6.
  • Page 24 Installation A remote push-button key can be connected to the Logic Inputs as shown below. Logic Input Control on page 26 describes the function of the inputs. Logic Input Signal Ground Figure 7 Logic Inputs Connection Diagram Outputs The advanced option for the instrument provides two opto-isolated output ports.
  • Page 25 Installation Digital Output Connection Figure 9 shows a connection example for a pulse output. Output channel 1 uses terminals 27 (+) and 28 (-). Output channel 2 uses terminals 29 (+) and 30 (-). Vo +8...24V DC External Load Resistor 10K Logic Input Open Pulse Output...
  • Page 26 Installation Relay 1 Relay Common Alarm Supply Relay 2 Alarm Relay 3 Alarm Relay 4 Alarm Figure 10 Relay Connection Diagram RC Network for Interference Suppression When driving inductive loads with the relay outputs, it is recommended to use RC suppression networks (often called “Snubbers”), fitted at the load end, for the following reasons: •...
  • Page 27 Installation COM-1 RS-232 Port The COM-1 RS-232 port has a 9-pin DB female connector and has the following pinout: Pin 1 Not used Pin 2 Transmit (TxD) Pin 3 Receive (RxD) Pin 4 Not used Pin 5 Ground Pin 6 Not used Pin 7 Handshake line (CTS)
  • Page 28 Installation Earthing and Shielding It is a good practice to use shielded cable for all signal connections to the instrument. Care must be taken to separate signal cables from power cables to minimize interference. Overall earth should be connected at the instrument end only. This connection should be as short as possible and connected to the earthing point on the rear terminal at pin 18.
  • Page 29 Chapter 4 Operation Front Panel Operation In normal operation, press the buttons on the front panel to control the operation of the batch controller or to display the values recorded and calculated by the instrument. There are several categories of information that the instrument can display: •...
  • Page 30 Operation Solid led: The instrument has a batch in progress. Fast flashing led: Batch paused. Alarm Slow flashing led: Waiting for valves to close. Solid led: The instrument is in Calibrate Set mode. Flashing led: Count down to automatic restart of next batch. Alarm The instrument has an error, as indicated on the display panel.
  • Page 31 Basic menu only the application or operator essential main menu variables are shown. The main menu variables to be shown in the basic menu need to be selected in the 500 Series Program Manager prior to the application software being downloaded to the instrument. The 500 Series Program Manager (500-PM) is Windows based configuration and resource tool for the 500 Series and is freely available from the www.contrec.co.uk website.
  • Page 32 Operation Setting the Batch Preset The batch preset can only be set while the instrument is in the non- operational state, i.e. batch is complete or has been stopped and reset. Hold key to display the current preset value while viewing the total variable.
