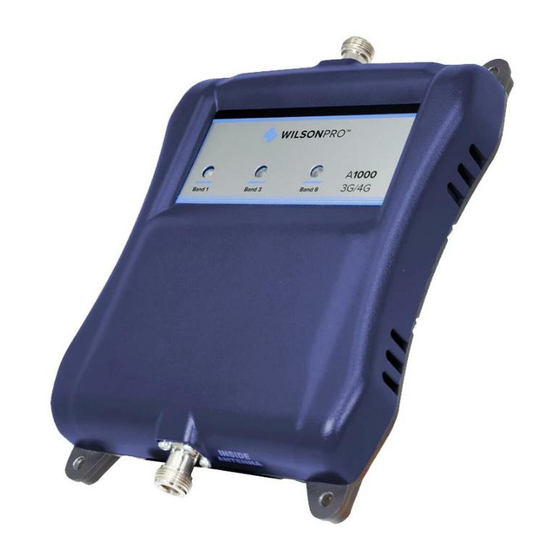

- Page 1 A WILSON ELECTRONICS, LLC COMPANY WilsonPro A1000 Cellular Signal Booster User Manual boltontechnical.co.za 011 749 3085 NEED HELP?
- Page 2 ______ Index Package Contents Preparation STEP 1: Find The dBm Reading On Your Phone STEP 2: Measure Signal Strength For Inside Antenna STEP 3: Measure Signal Strength For Outside Antenna STEP 4: Temporarily Mount The Outside Antenna STEP 5: Connect The System STEP 6: Compare Results STEP 7:...
- Page 3 Wall Mount Bracket Bracket This device may be operated ONLY in a fi ed location for in-building use. The signal booster unit is designed for use in an indoor, temperature controlled environment (37 degrees Celsius) WilsonPro A1000 CELL PHONE SIGNAL BOOSTER...
- Page 4 Recommended: Power Strip with surge protection NOTE: These instructions will walk you through a “soft” install process to find th optimal locations for the inside and outside antennas, then through the process of the permanent installation. CELL PHONE SIGNAL BOOSTER WilsonPro A1000...
-
Page 5: Step 2: Find The Dbm Reading On Your Phone
• Speedtest by Ookla is another free app Android users: do a signal strength test and network speed test. • Network Cell Info Lite, available for free on the Google Play store, provides nearly real-time monitoring of cellular and WiFi signals WilsonPro A1000 CELL PHONE SIGNAL BOOSTER... - Page 6 EXCELLENT GOOD FAIR POOR DEAD ZONE 3G/1x -70dBm -71 to -85dBm -86 to -100dBm -101 to -109dBm -110dBm (typically voice) 4G/LTE -90dBm -91 to -105dBm -106 to -110dBm -111 to -119dBm -120dBm (typically data) CELL PHONE SIGNAL BOOSTER WilsonPro A1000...
- Page 7 Note: The Outside Antenna must be at least 6 meters vertical or 15 meters horizontal from the Inside Antenna for best performance. Make sure the Inside Antenna and outside Antennas are facing away from each other. WilsonPro A1000 CELL PHONE SIGNAL BOOSTER...
-
Page 8: Step 5: Temporarily Mount The Outside Antenna
Note: The Outside Antenna must be at least 6 meters vertical or 15 meters horizontal from the Inside Antenna for best performance. Make sure the Inside Antenna and outside Antennas are facing away from each other. CELL PHONE SIGNAL BOOSTER WilsonPro A1000... -
Page 9: Step 6: Connect The System
Inside Antenna. Inside Antenna Power up the Booster by connecting it to a power source. To protect Booster from power surges, connect Band 2 Band 4 Band 12/13/17 Band 5 to a power strip. WilsonPro A1000 CELL PHONE SIGNAL BOOSTER... -
Page 10: Step 7: Compare Results
2 times the power and signal amplificatio 4 times the power and signal amplificatio 10dB 10 times the power and signal amplificatio 12dB 16 times the power and signal amplificatio 20dB 100 times the power and signal amplificatio CELL PHONE SIGNAL BOOSTER WilsonPro A1000... -
Page 11: Step 8: Permanently Mount The Outside Antenna
Mount, or use an existing pipe in an optimal signal location. Watch out for power lines. Outside Antenna (pole mount) Drip Holes need to face down Inside Antenna WilsonPro A1000 Mounting on existing roof exhaust pipe would be a good time-saver option. Drip Holes need to face down WilsonPro A1000... - Page 12 Option : Mounting on side of roof (Good Option) Outside Antenna (flush mount Inside Antenna WilsonPro A1000 Drip Holes If needed, cable clips can be need to face down purchased at most hardware stores CELL PHONE SIGNAL BOOSTER WilsonPro A1000...
-
Page 13: Step 9: Permanently Mount The Inside Antenna
______ Step 9: Permanently Mount The Inside Antenna Position bracket on wall and use a pencil to mark the holes. Drill holes using 3/16 inch bit. Use anchors, washers and screws to attach Wall Bracket. Slip Inside Antenna onto the Wall Mount Bracket to secure. slide into mount anchor &... -
Page 14: Step 10: Route & Secure The Cable
If needed, cable clips can be purchased at most hardware stores. most eaves you can tuck the cable between the soffit and the xterior wall cable running to Outside Antenna If needed, cable clips can be purchased at most hardware stores CELL PHONE SIGNAL BOOSTER WilsonPro A1000... - Page 15 ______ Test System: Lights Connect 4G-X Band 8 Band 1 Band 3 Each light corresponds to a frequency band. IMPORTANT: To get an accurate reading of the lights, unplug and re-plug the power supply from the Booster. No Lights Booster does not have power. Un-plug and securely re-plug in power supply. Fix Any Red Light Problems (red indicates oscillation) •...
- Page 16 Rotate the Outside Antenna in small increments (roof/pole mount only). Un-plug and re-plug power supply. • Move the Outside Antenna to a different location. Un-plug and re-plug powe supply. • Change the method of mounting the Outside Antenna. Un-plug and re-plug power supply. CELL PHONE SIGNAL BOOSTER WilsonPro A1000...
-
Page 17: Specifications
______ Specifications Signal Booster Specifications WilsonPro A1000-3G/4G Model Number 520002 Connectors N-Female Antenna Impedance 50 Ohms Frequency Band 1 (2100) Band 3 (1800) Band 8 (900) Power output for single cell phone (dBm) Uplink Downlink Passband Gain (nominal) Noise Figure (typical downlink/uplink) -
Page 18: Safety Guidelines
This is a CONSUMER device. The A1000 is an ICASA Approved and Registered Device. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. -
Page 19: Antenna Kit Options
______ Antenna Kit Options The following accessories are to be used with the WilsonPro A!000 Booster. INSIDE ANTENNA EXPANSION KITS BT512952 – 1 Extra PANEL antenna expansion kit: 1 x Wall mount panel antenna 1 x 2-way splitter 1 x 15m and 1x 0.5m cable lengths ended with connectors BT512969–... -
Page 20: Warranty
______ Warranty 1 YEAR WARRANTY weBoost Signal Boosters are warranted for one (1) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by weBoost.
