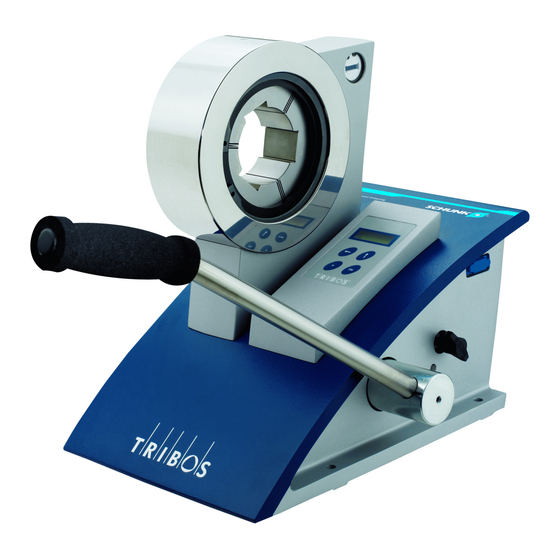

SCHUNK TRIBOS SVP-2D Assembly And Operating Manual
Retrofit kit for fixed scanner / handheld scanner
Hide thumbs
Also See for TRIBOS SVP-2D:
- Assembly and operating manual (40 pages) ,
- Assembly and operating manual (24 pages) ,
- Operating manual (30 pages)
Related Manuals for SCHUNK TRIBOS SVP-2D
Summary of Contents for SCHUNK TRIBOS SVP-2D

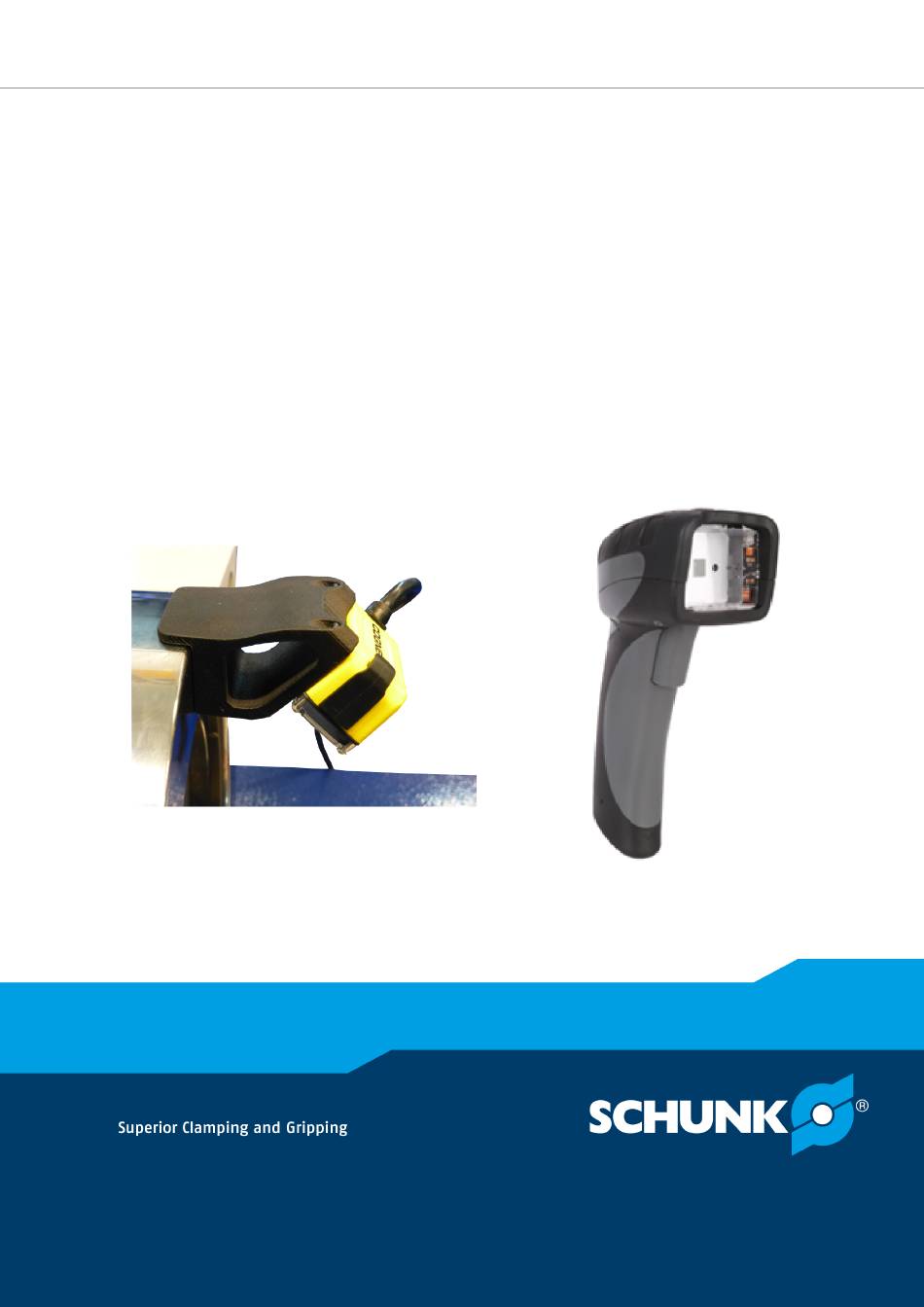

- Page 1 Translation of the original manual Assembly and Operating Manual SVP-2D / SVP-2D/H / SVP-4 / SVP-3 Retrofit kit for fixed scanner/handheld scanner...
- Page 2 Imprint Copyright: This manual is protected by copyright. The author is SCHUNK GmbH & Co. KG. All rights reserved. Any reproduction, processing, distribution (making available to third parties), translation or other usage - even excerpts - of the manual is especially prohibited and requires our written approval.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Variants ........................ 4 Usage ........................ 4 Retrofit kit for fixed scanner .................. 5 Scope of delivery .................... 5 Technical data....................... 6 Assembly ...................... 7 Operation ...................... 12 Retrofit kit for handheld scanner ................ 15 Scope of delivery .................... 15 Technical data..................... -
Page 4: Variants
Variants 1 Variants This operating manual applies to the following variations: • Retrofit kit for fixed scanner for TRIBOS SVP-2D / SVP-2D/H Fixed scanner (with software version 1.3) Retrofit kit for fixed ID number: 25005597, 0201754 scanner 5] • Retrofit kit for fixed scanner for TRIBOS SVP-4 and SVP-2D / SVP-2D/H (SVP-2D / SVP-2D/H from software version 1.4) -
Page 5: Retrofit Kit For Fixed Scanner
Retrofit kit for fixed scanner 2 Retrofit kit for fixed scanner 2.1 Scope of delivery The scope of delivery includes Dataman 50S Connection cablel Dataman bracket Set screws M5 Distance bolts Assembly and Cable bracket operating manual Sealing plugs Housing back panel Retaining ring Housing base Cable protection... -
Page 6: Technical Data
Retrofit kit for fixed scanner 2.2 Technical data Dataman 50S Dimensions (L x W x H) [mm] 23,5 x 26,57 x 45,4 Housing IP protection class IP65 Lens Adjustable to 3 positions Lighting Built-in bright field with LED aligner (green target window) Object variants Adjustable to 3 positions (45/80/110 mm) -
Page 7: Assembly
Retrofit kit for fixed scanner 2.3 Assembly Fastening the fixed scanner to the pressure hull of the Fasten Dataman 50S to the bracket using the 2 provided M3 Ø screws. Holes for indexing pins (from software version 1.4) There are a magnet and two indexing pins at the bracket for Ø... - Page 8 Retrofit kit for fixed scanner Fixing the intermediate sleeve in the pressure hull approx. 15° approx. 15° Intermediate sleeve Safety ring clamp two M5 set screws Max. Tightening torque: 1-2 Nm NOTE In its delivered state, the intermediate sleeve can rotate freely in- side the pressure hull.
- Page 9 Retrofit kit for fixed scanner The retrofit kit contains 3 brackets with an adhesive layer and 1 Fastening the cable magnetic bracket for fastening the cable. Magnetic bracket Remove the protective film of the adhesive layer and fasten the Ø 3 brackets to the bracket of the pressure body.
- Page 10 Retrofit kit for fixed scanner Connect the 15-pin Sub D connnectors of the Dataman 50S and Ø the connection cable. Reinstall the back panel an fit the sealing plugs into the back Ø panel (only for software version 1.3). Observe the position of the grooves in the back panel.
- Page 11 The DC-DC converter may only be used for TRIBOS SVP3 / • SVP-2D / SVP-2D/H with software version 1.3. If a TRIBOS SVP-2D / SVP-2D/H with software version 1.4 and • SVP-4 is used, connect the connection cable directly to the RS-232 interface.
-
Page 12: Operation
Retrofit kit for fixed scanner 2.4 Operation Note about Data- TRIBOS Logo and Matrix code type designation (clamping-Ø) DataMatrix-Code To perform a clamping procedure, the fixed scanner must be able to read the DataMatrix code on the reducing ring. The DataMatrix code is printed on the small and large ring of the reducing insert. - Page 13 Retrofit kit for fixed scanner Scanner mode NOTE • Always draing the system pressure bevor switching (lock / unlock) and before switch off of the device. • If the SVP is swtched off and on again in the blocking state, the blocking state is retained.
- Page 14 Retrofit kit for fixed scanner normal quick selection operation (Mini/RM- operation) P+ Option P+ Option ≤ 100 bar: ≤ 100 bar: Step 1 bar Step 1 bar Range +5 bar Range +5 bar > 100 bar: > 100 bar: Step 5 bar Step 1 bar Range + 20 bar Range + 5 bar...
-
Page 15: Retrofit Kit For Handheld Scanner
Retrofit kit for handheld scanner 3 Retrofit kit for handheld scanner 3.1 Scope of delivery The scope of delivery includes Connection cable CR6000 Handheld scanner Assembly and operating manual 3.2 Technical data Handheld scanner Dimensions (L x W x H) [mm] 151 x 93 x 35 CR6000 Housing IP protection class... - Page 16 Retrofit kit for handheld scanner Interface RS232 SVP-2D / SVP-2D/H Pin1: +24 V DC Software version 1.3 Pin2: TXD Pin3: RXD Pin5: GND SVP-2D / SVP-2D/H Pin1: +5 V DC Software version 1.4 Pin2: TXD Pin3: RXD Pin5: GND SVP-4 Pin1: +5 V DC Pin2: TXD Pin3: RXD...
-
Page 17: Assembly
Retrofit kit for handheld scanner 3.3 Assembly Electrical connection The RS-232 interface is located on the right side of the housing. ■ NOTE The Pin1 assignment of the RS-232 interface differs depending on the model and software version Technical data 6]. - Page 18 The DC-DC converter may only be used for TRIBOS SVP3 / • SVP-2D / SVP-2D/H with software version 1.3. If a TRIBOS SVP-2D / SVP-2D/H with software version 1.4 and • SVP-4 is used, connect the connection cable directly to the RS-232 interface.
-
Page 19: Operation
Retrofit kit for handheld scanner 3.4 Operation Handheld scanner Data Matrix Code Toolholder TRIBOS NOTE From software version SV1.4 the handheld scanner CR6000 can be operated directly at the SVP-3 / SVP-2D / SVP-2D/H without DC- DC adapter. Switching to scanner operation is done via the DataMatrix-Code: Lock code Unlock code The DataMatrix-Codes are shown in the TRIBOS pressure table on... - Page 20 Retrofit kit for handheld scanner normal quick selection operation (Mini/RM- operation) P+ Option P+ Option ≤ 100 bar: ≤ 100 bar: Step 1 bar Step 1 bar Range +5 bar Range +5 bar > 100 bar: > 100 bar: Step 5 bar Step 1 bar Range + 20 bar Range + 5 bar...
- Page 21 Retrofit kit for handheld scanner TRIBOS pressure table Generally the following applies: Observe the TRIBOS pressure table 02.00 | SVP-2D / SVP-2D/H / SVP-4 / SVP-3 | Assembly and Operating Manual | en | 0289052...
-
Page 22: Translation Of The Original Eu-Declaration Of Conformity
• EN 61000-3-3:2013 • EN 61326-1:2013 • EN 61000-6-2:2005 • EN 61000-6-4:2011 Signed for and on behalf of: SCHUNK GmbH & Co. KG Lauffen/Neckar, February 2020 p.p. Thomas Retzbach Head of Development Clamping Technology 02.00 | SVP-2D / SVP-2D/H / SVP-4 / SVP-3 | Assembly and Operating Manual | en | 0289052... - Page 23 Notes Notes 02.00 | SVP-2D / SVP-2D/H / SVP-4 / SVP-3 | Assembly and Operating Manual | en | 0289052...
- Page 24 02.00 | SVP-2D / SVP-2D/H / SVP-4 / SVP-3 | Assembly and Operating Manual | en | 0289052...
