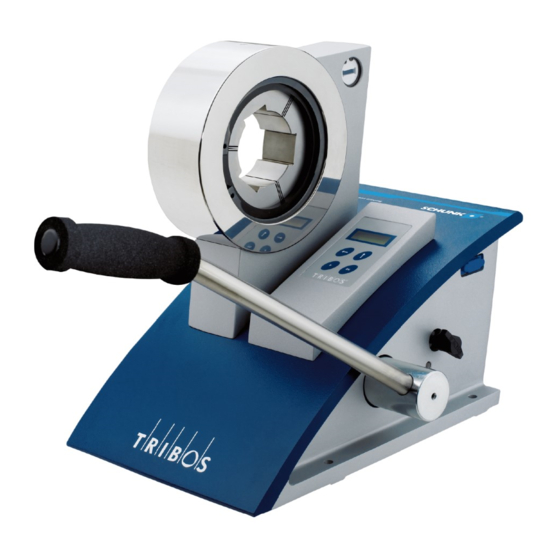

SCHUNK SVP-2D Assembly And Operating Manual
Retrofit kit for fixed scanner/handheld scanner
Hide thumbs
Also See for SVP-2D:
- Assembly and operating manual (40 pages) ,
- Assembly and operating manual (24 pages) ,
- Operating manual (30 pages)
Related Manuals for SCHUNK SVP-2D
Summary of Contents for SCHUNK SVP-2D

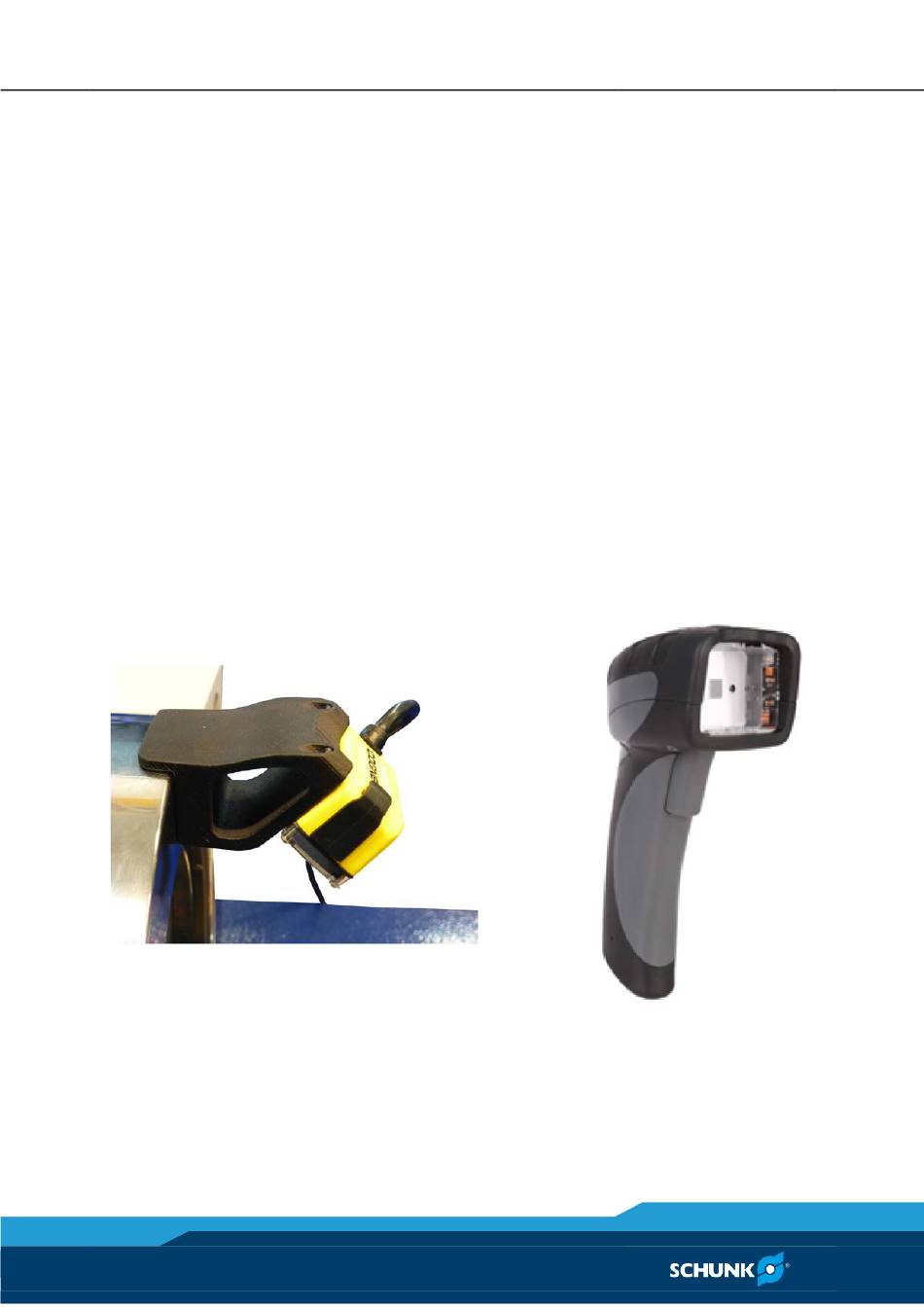

- Page 1 Translation of the original manual Retrofit kit for fixed scanner/handheld scanner SVP-2D / SVP-2D/H / SVP-3 / SVP-4 Assembly and Operating Manual Superior Clamping and Gripping...
- Page 2 Imprint Copyright: This manual remains the copyrighted property of SCHUNK GmbH & Co. KG. It is solely supplied to our customers and operators of our products and forms part of the product. This documentation may not be duplicated or made accessible to third parties, in particu- lar competitive companies, without our prior permission.
-
Page 3: Table Of Contents
Table of contents Table of contents 1 Variants ........................4 1.1 Usage ........................4 2 Retrofit kit for fixed scanner ..................5 2.1 Scope of delivery ...................... 5 2.2 Technical data ......................6 2.3 Assembly ........................7 2.4 Operation ........................ 13 3 Retrofit kit for handheld scanner ................ -
Page 4: Variants
• Retrofit kit for fixed scanner for TRIBOS SVP-2D / SVP-2D/H ( 2, Page 5) (with software version 1.3) ID number: 25005597, 0201754 • Retrofit kit for fixed scanner for TRIBOS SVP-4 and SVP-2D / SVP-2D/H (SVP-2D / SVP-2D/H from software version 1.4) ID number: 25005596, 0201755 •... -
Page 5: Retrofit Kit For Fixed Scanner
Retrofit kit for fixed scanner Retrofit kit for fixed scanner Scope of delivery The scope of delivery includes For software version 1.3 additionally included 01.05| Retrofit kit for fixed scanner/handheld scanner |en... -
Page 6: Technical Data
Retrofit kit for fixed scanner Technical data Dataman 50S Dimensions (mm) 23.5 x 26.57 x 45.4 Housing protection class IP65 Lens Adjustable to 3 positions Lighting Built-in bright field with LED aligner (green target window) Object variants Adjustable to 3 positions (45/80/110 mm) Interface Serial RS-232... -
Page 7: Assembly
Retrofit kit for fixed scanner interfacee RS232 SVP-2D / SVP-2D/H Pin1: +24 V DC Software version 1.3 Pin2: TXD Pin3: RXD Pin5: GND SVP-2D / SVP-2D/H Pin1: +5 V DC Software version 1.4 Pin2: TXD Pin3: RXD Pin5: GND SVP-4... - Page 8 Retrofit kit for fixed scanner 2 There are a magnet and two indexing pins at the bracket for mounting the fixed scanner to the SVP's pressure hull. Alterna- tively, the fixed scanner can be mounted on the left or right side of the pressure hull.
- Page 9 Retrofit kit for fixed scanner 3 Only for software version 1.3: Replace the retaining ring with circlip piers (type Knipex 44 21 J41 , not included in the delivery). Make sure the locking ring snaps into place! Fastening the cable The retrofit kit contains 3 brackets with an adhesive layer and 1 magnetic bracket for fastening the cable.
- Page 10 Retrofit kit for fixed scanner 5 Insert the cable of the Dataman 50S and the connecting cable from above into the two sleeves. 6 Turn the sleeves 90 ° to the left so that the opening of the sleeves is not up. 7 Install the distance bolts on the 15 pin Sub-D connector ot the connection cable.
- Page 11 Retrofit kit for fixed scanner 10 Mount the housing base (only for software version 1.3). Electrical connection The RS-232 interface is located on the right side of the housing. NOTE The Pin1 assignment of the RS-232 interface differs depending on the model and software version (...
- Page 12 Retrofit kit for fixed scanner 1 For the SVP-2D / SVP-2D/H with software version 1.3 the con- nection cable may not be connected directly to the RS-232 in- terface. In this case, a DC-DC converter must additionally be connected to the RS-232 interface.
-
Page 13: Operation
Power up 01.02|SVP-2D / SVP-2D/H / SVP-4 / SVP-3 |en 13 After being con- nected to AC current for 20 seconds, the scanner switches to op- erational mode (green and red LEDs go out, yellow LED lights up). - Page 14 • If the SVP is swtched off and on again in the relaxed state, the relaxed state is retained. • If the system pressure of the SVP-2D, SVP-2D/H is not reduced to zero press key P and OK. • As of software version SV 1.6 the operating mode ca be switched between scanning mode and manual operation.
- Page 15 Retrofit kit for fixed scanner The maximum pressure specified on the tool holder must not be exceeded when using the fixed scanner. Software version 1.3 • Locking manual operation via DataMatrix code • P+- option for fine-tuning pressure once target pressure is reached Software version 1.4 •...
-
Page 16: Retrofit Kit For Handheld Scanner
Retrofit kit for handheld scanner Retrofit kit for handheld scanner Scope of delivery The scope of delivery includes Technical data CR6000 handheld Dimensions [mm] 151 x 93 x 35 scanner ip class hosing IP64 Lightning Diffuse bright field, dark field interface seriel RS-232 Power supply [VDC]... - Page 17 Input voltage [V DC] 9 − 36 Output voltage [V DC] Connection to interface RS-232 (up to software version 1.3) interfacee RS232 SVP-2D / SVP-2D/H Pin1: +24 V DC Software version 1.3 Pin2: TXD Pin3: RXD Pin5: GND SVP-2D / SVP-2D/H Pin1: +5 V DC Software version 1.4...
-
Page 18: Assembly
( 2.2, Page 1 For the SVP-2D / SVP-2D/H with software version 1.3 the con- nection cable may not be connected directly to the RS-232 in- terface. In this case, a DC-DC converter must additionally be connected to the RS-232 interface. - Page 19 • The DC-DC converter may only be used for TRIBOS SVP3 / SVP- 2D / SVP-2D/H with software version 1.3. • If a TRIBOS SVP-2D / SVP-2D/H with software version 1.4 and SVP-4 is used, connect the connection cable directly to the RS- 232 interface.
-
Page 20: Operation
Retrofit kit for handheld scanner Operation NOTE From software version SV1.4 the handheld scanner CR6000 can be operated directly at the SVP-3 / SVP-2D / SVP-2D/H without DC-DC adapter. Switching to scanner operation is done via the DataMatrix-Code: Lock code... - Page 21 Retrofit kit for handheld scanner Software version 1.3 • Locking manual operation via DataMatrix code • P+- option for fine-tuning pressure once target pressure is reached • Locking manual operation via DataMatrix code Software version 1.4 • P+- option for fine-tuning pressure once target pressure is reached •...
- Page 22 Retrofit kit for handheld scanner TRIBOS pressure table Generally the following applies: Observe the TRIBOS pressure table 01.05| Retrofit kit for fixed scanner/handheld scanner |en...
-
Page 23: Translation Of The Original Eu-Declaration Of Conformity
• EN 61000-3-3:2013 • EN 61326-1:2013 • EN 61000-6-2:2005 • EN 61000-6-4:2011 Signed for and on behalf of: SCHUNK GmbH & Co. KG Lauffen/Neckar, December 2016 p.p. Thomas Retzbach Head of Development Clamping Technology 01.05| Retrofit kit for fixed scanner/handheld scanner |en... - Page 24 Translation of the original EU-Declaration of conformity 01.05|SVP-2D / SVP-2D/H / SVP-3 / SVP-4 |en...
