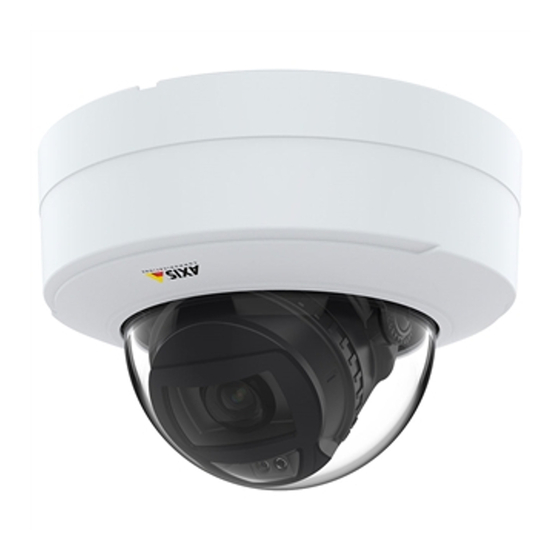

AXIS P32 and M32 Network Camera Series
AXIS P3245-VE
AXIS P3245-LVE
AXIS M3205-LVE
AXIS M3206-LVE
Repainting Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P32 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Axis P32 Series

  • Page 1 AXIS P32 and M32 Network Camera Series AXIS P3245-VE AXIS P3245-LVE AXIS M3205-LVE AXIS M3206-LVE Repainting Instructions...
  • Page 2 Risks with repainting There are several risks when disassembling or assembling an Axis product. There is always a certain yield loss during assembly. Training of operators and the use of correct tools mediates some of the problems but they can never be fully avoided. Some of the risks include: ESD Damage - Always handle the product in an ESD safe environment.
  • Page 3 AXIS P32 and M32 Network Camera Series Repaint the product Repaint the product Preparations • If applicable, disassemble the device according to the instructions in this document. • Clean all parts to be repainted thoroughly to remove grease, dust, or oil.
  • Page 4 AXIS P32 and M32 Network Camera Series Repaint the product Disassembly Screws (4x, TR20) Dome Dome cover Conduit cover Cable cover Anti-reflection ring (only for P32-LVE) Snap fits holding the dome (3x) Weathershield Screws (2x, TR20) 1. Remove the weathershield, if it’s already attached to the dome cover.
  • Page 5 AXIS P32 and M32 Network Camera Series Repaint the product Repainting 1. Make sure all necessary preparations of the weathershield and dome cover have been made, see Preparations on page 3 . 2. Apply a thin and even layer of spray paint according to the instructions of the paint manufacturer.
  • Page 6 Repainting Instructions Ver. M3.3 AXIS P32 and M32 Network Camera Series Date: November 2019 © Axis Communications AB, 2019 Part No. T10137445...

This manual is also suitable for:

M32 seriesP3245-veP3245-lveM3205-lveM3206-lve
