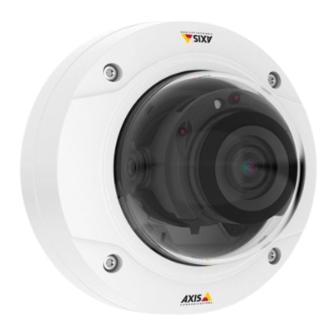

- Page 1 AXIS P32 Network Camera Series AXIS P3235–LV Network Camera AXIS P3235–LVE Network Camera User Manual...
-
Page 2: Table Of Contents
AXIS P32 Network Camera Series Table of Contents About this manual ......... . -
Page 3: About This Manual
AXIS P32 Network Camera Series About this manual About this manual This user manual describes multiple products. Some of the instructions may not be relevant for your product. -
Page 4: Solution Overview
AXIS P32 Network Camera Series Solution overview Solution overview AXIS P3235–LV AXIS P3235–LVE Surveillance center Audio out Audio in This is an example of how the products can be installed and used. The products can be connected to a speaker via audio out and a... -
Page 5: Product Overview
AXIS P32 Network Camera Series Product overview Product overview Network connector (PoE) SD memory card slot Status LED indicator Control button Audio... -
Page 6: How To Access The Product
HTTPS connection and then change the password. The device password is the primary protection for the data and services. Axis devices do not impose a password policy as they may be used in various types of installations. To protect your data we recommend that you: •... - Page 7 AXIS P32 Network Camera Series How to access the product 3. Click Create login. The password has now been configured.
-
Page 8: Setup
AXIS P32 Network Camera Series Setup Setup Product webpage overview Live view control bar Live view Product name Controls Video control bar Settings toggle... - Page 9 AXIS P32 Network Camera Series Setup Settings tabs About the product's built-in help You can access the built-in help from the product’s webpage. The help provides more detailed information on the product’s features and their settings.
-
Page 10: Image Quality
Image quality About capture modes Capture mode defines the maximum frame rate available in the Axis product. Depending on which capture mode you select, you may not be able to use WDR. A capture mode consists of a resolution and the corresponding frame rate available in the product. The capture mode setting affects the camera’s field of view and aspect ratio. - Page 11 AXIS P32 Network Camera Series Setup Left: no focus. Right: remote focus applied. Left: no zoom. Right: remote zoom applied. How to benefit from IR light in low-light conditions using night mode Your camera uses visible light to deliver color images during the day. As light diminishes, you can set the camera to automatically shift to night mode.
- Page 12 Note WDR may cause artifacts in the image. Find out more about WDR and how to use it at axis.com/web-articles/wdr How to monitor long and narrow areas Use corridor format to better utilize the full field of view in a long and narrow area, for example a staircase, hallway, road, or tunnel.
- Page 13 Setup 1. Depending on your product, turn the camera or the 3-axis lens in the camera 90° or 270°. 2. If your product doesn’t rotate the view automatically, log in to the product’s webpage and go to Settings > Stream >...
-
Page 14: Privacy Masks
This example explains how to display the text “Motion detected” when the camera detects motion: Make sure the AXIS Video Motion Detection application is running: 1. Go to Settings > Apps > AXIS Video Motion Detection. 2. Start the application if it is not already running. -
Page 15: Streaming And Storage
H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. Installing additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard. -
Page 16: Events
How to record video when the camera detects motion This example explains how to set up the camera to start recording to the SD card five seconds before it detects motion and to stop one minute after. Make sure the AXIS Video Motion Detection application is running:... - Page 17 13. Click Ok. How to record video when a PIR detector senses motion This example explains how to connect an Axis PIR detector to the camera, and set up the camera to start recording when the detector senses motion. Required hardware •...
- Page 18 AXIS P32 Network Camera Series Setup 1. Connect the other end of the ground wire to pin 1 (GND/-). 2. Connect the other end of the power wire to pin 2 (DC input/+). 3. Connect the other end of the I/O wire to pin 3 (I/O output).
- Page 19 AXIS P32 Network Camera Series Setup NOTICE TICE TICE Make sure the camera is disconnected from power before making the connections. Reconnect to power after connecting the wires. Physical connection 1. Connect the audio wire from the speaker to the AUDIO OUT pin on the camera. See Product overview on page 5 .
-
Page 20: Applications
The counter is embedded in the camera which means you do not need a dedicated computer to run the application. AXIS People Counter is intended for retail environments, like stores or shopping malls, or other environments where you want to... -
Page 21: Troubleshooting
Reset to factory default should be used with caution. A reset to factory default resets all settings, including the IP address, to the factory default values. Note The camera has been preconfigured with AXIS License Plate Verifier. If you reset to factory default, you need to reinstall the license key. See . To reset the product to the factory default settings: 1. -
Page 22: Technical Issues, Clues And Solutions
Axis product. Check all cabling and reinstall the product. Possible IP address conflict The static IP address in the Axis product is used before the DHCP server sets a dynamic address. with another device on the... -
Page 23: Performance Considerations
AXIS P32 Network Camera Series Troubleshooting The product is accessible locally but not externally Router configuration Check that your router allows incoming data traffic to the Axis product. The router must support ® UPnP Firewall protection Check the Internet firewall with your network administrator. - Page 24 AXIS P32 Network Camera Series Troubleshooting • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.
-
Page 25: Specifications
AXIS P32 Network Camera Series Specifications Specifications To find the latest version of the product’s datasheet, go to the product page at axis.com and locate Support & Documentation. LED indicators Status LED Indication Unlit Connection and normal operation. Green Shows steady green for 10 seconds for normal operation after startup completed. -
Page 26: Connectors
AXIS P32 Network Camera Series Specifications Connectors Network connector RJ45 Ethernet connector with Power over Ethernet (PoE). Audio connector 4-pin white terminal block for audio input and output. Function Notes Ground Ring power 12 V for external source Microphone/Line in Microphone (analog or digital) or line in (mono). - Page 27 AXIS P32 Network Camera Series Specifications Example DC ground DC output 12 V, max 25 mA I/O supervised input I/O digital output...
- Page 28 User Manual Ver. M1.7 AXIS P32 Network Camera Series Date: June 2018 © Axis Communications AB, 2018 Part No. T10126197...
