Chill Premier Models: CCW24B30A

ITEM PART PART DESCRIPTION
NUMBER
1 68000332 41106-003519_UW - Front Panel
Assembly
1.2 68000334 41507-000137 - Air Filter
2 68000339 41205-000164 - Left Supporter
3 68000340 41505-000229 - Electrical Box
Assembly
3.1 68000341 41507-000033 - Control Box panel CCW24B30A
3.2 68000342 31502-000026 - Display PCB
3.3 68000328 10502-100034_UW - Transformer
3.4 68000189 42001-000027 - Capacitor Strip
3.5 68000343 22003-000006_UW - Compressor
Capacitor
3.6 68000344 10303-100018_UW - Fan Motor
Capacitor
3.7 68000326 31502-000006_UW - Main pcb
3.8 68000310 41214-000877_UW - Main pcb
supporter
3.9 68000345 41505-000232 - Electrical Box
3.1 68000322 42001-000058 - Cable Clamp
4 68000346 41504-000056 - Top Cover
5 68000347 41504-000051 - Back Surround
Cover Plate
6 68000348 22001-000167_UW - Fan Motor
7 68000349 41504-000045_UW - Back
Surround Plate
8 68000294 41503-000008_UW - Propeller
Fan
9 68000350 92011-000773 - Condenser
54
PARTS CATALOG
USED ON MODEL
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A
CCW24B30A

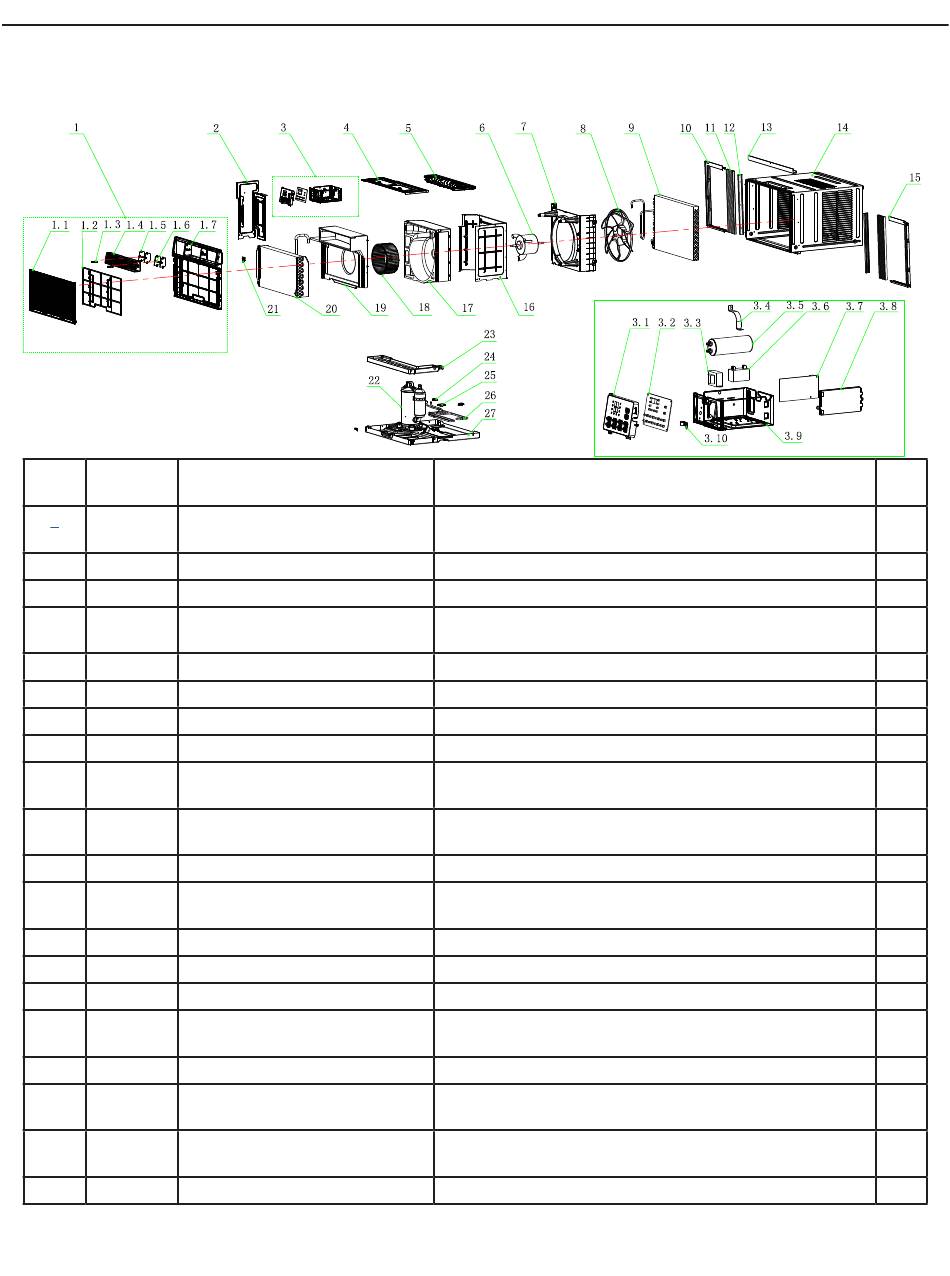

FIgure 903
QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
