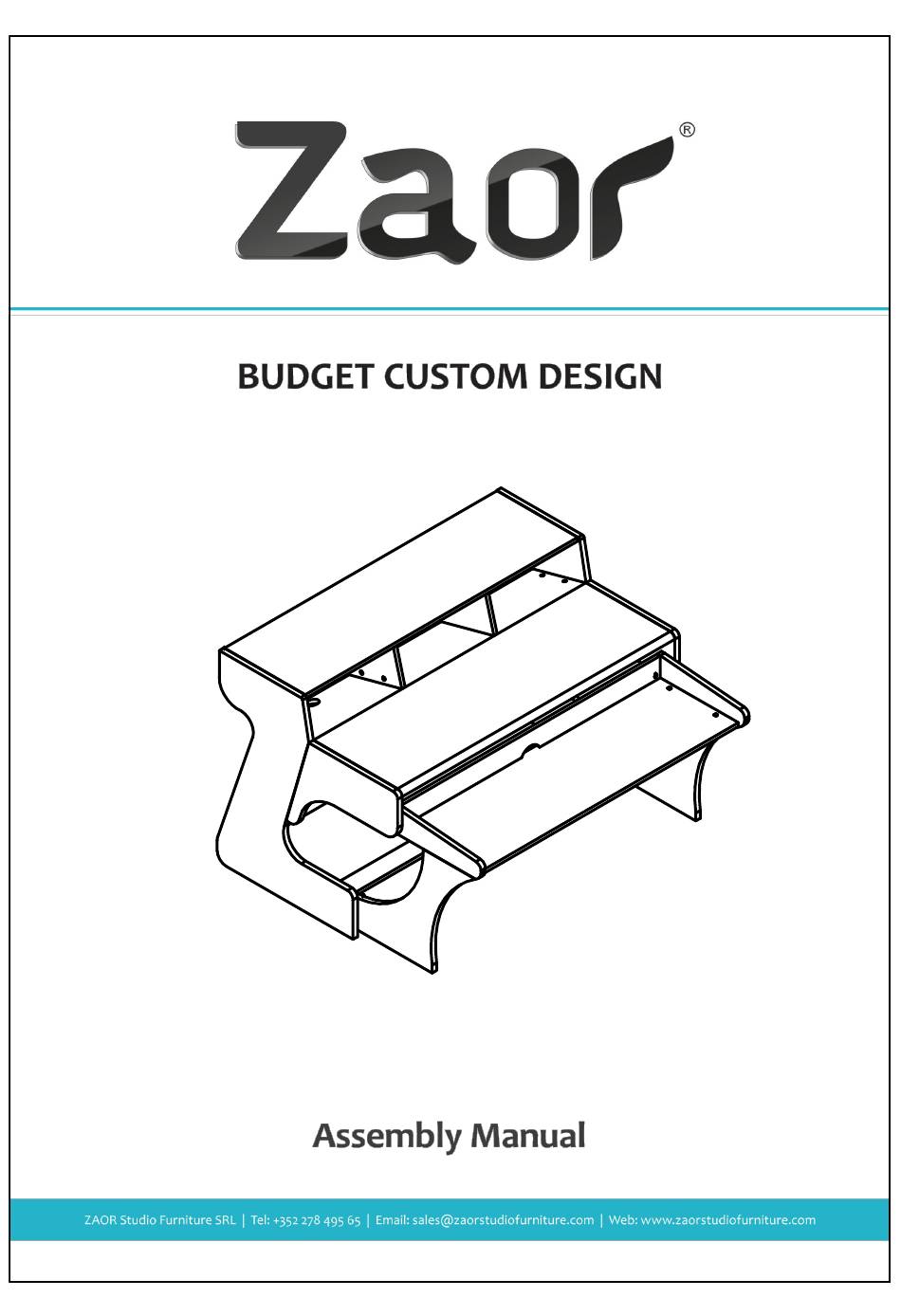

- Page 1 Miza 88 XL...
- Page 3 Part Part Parts Part Parts Floor cross bar Back stabilising cross bar Rack dividers (2 pcs) Keyboard tray and back panel table top Part n Part Part Parts Part Top bridge Back bottom part of racks Cable tray module Left and right sideparts Stabilising bar for keyboard tray...
- Page 4 STEP 1 STEP 2 Lay part flat on the ground add system bolts and lower the dividers onto panel 7 Using the bolts as guide, join the Now insert bolts into the top bridge and lower it down onto the dividers carefully aliging bolts and holes and pieces together and tioghten with excenters (see page 2) tighten with excenters.
- Page 5 STEP 5.1 STEP 5.2 (Back view) repeat step 4 for the top module ncluding (Back view) Do the same for the stabiliser bars 1 and parts 6,7,8 and tighten with excenters. STEP 5.3 STEP 5.4 Finally add the table top, part Use the assembly kits to Now also add on the cable tray element 9 and tighten.
- Page 6 STEP 6 The end is near..Now lower down the right side part after inserting all of the system bolts in the inserts. Ideally in two, carefully align all the bolts and the holes in the parts previuosly attached to the right sidepart. When they all fit, gently press down side and use excenters to finish off the assembly of your desk.
