Summary of Contents for Zaor Vision WS

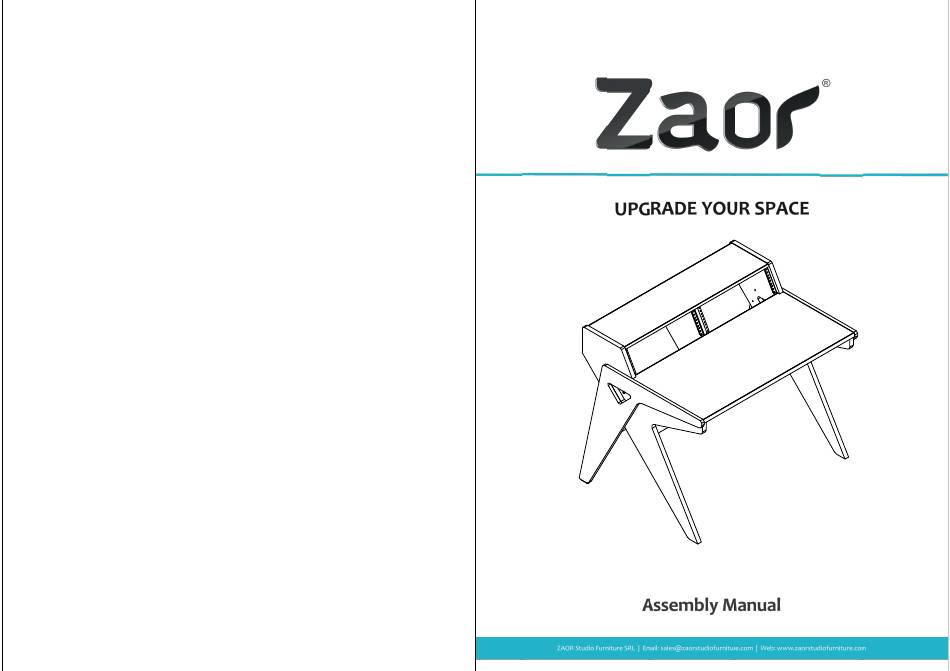

- Page 1 Vision WS...
- Page 2 Unpack the parts carefully (do not use a cutter on the foam wrapping, as you might damage Thanks for choosing a piece of furniture from Zaor. Before you can enjoy the surface) and set up so that you can see the part numbers clearly. In the big box you should the use of it you need to build it.
- Page 3 STEP 1 Push wooden dowels type W in the appropriate holes...
- Page 4 STEP 2 Use screws Type A (x6)
- Page 5 STEP 3 STEP 4 Use screws Type A (x6) Join panels E and F. Attach, using the system bolts that you mount on the threaded inserts in panel F. Adjust so they are pointing such that holes can be seen when inserted into panel E (no need to tighten them).
- Page 6 STEP 5 STEP 6...
- Page 7 STEP 7 STEP 8...
- Page 8 STEP 9 PACKING LIST: Type Type Type Assembly Kits Rack rail Wooden dowels m6x35 Type Type Type Type Hex wrench Rack bolt screws Rack rail screws Rack units screws STEP 10 TOOLS: Type Rs Type Rb Suggested INSTRUCTION FOR USE AND CLEANING - clean with a soft cloth, slightly humid or specific products for wood or lacquer;...
