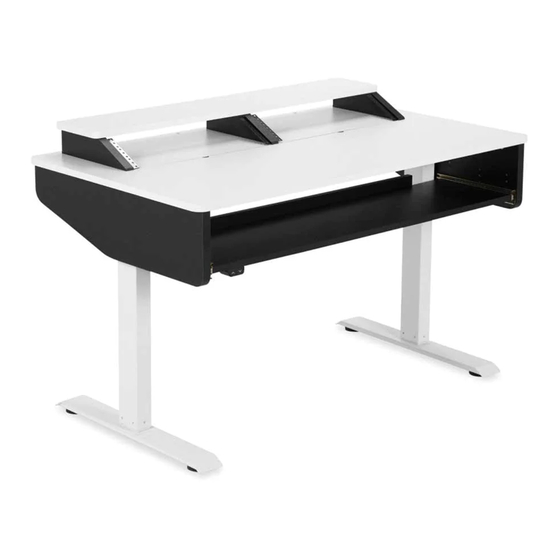

Related Manuals for Zaor ComboDesk Combo 61 Sit Stand
Summary of Contents for Zaor ComboDesk Combo 61 Sit Stand

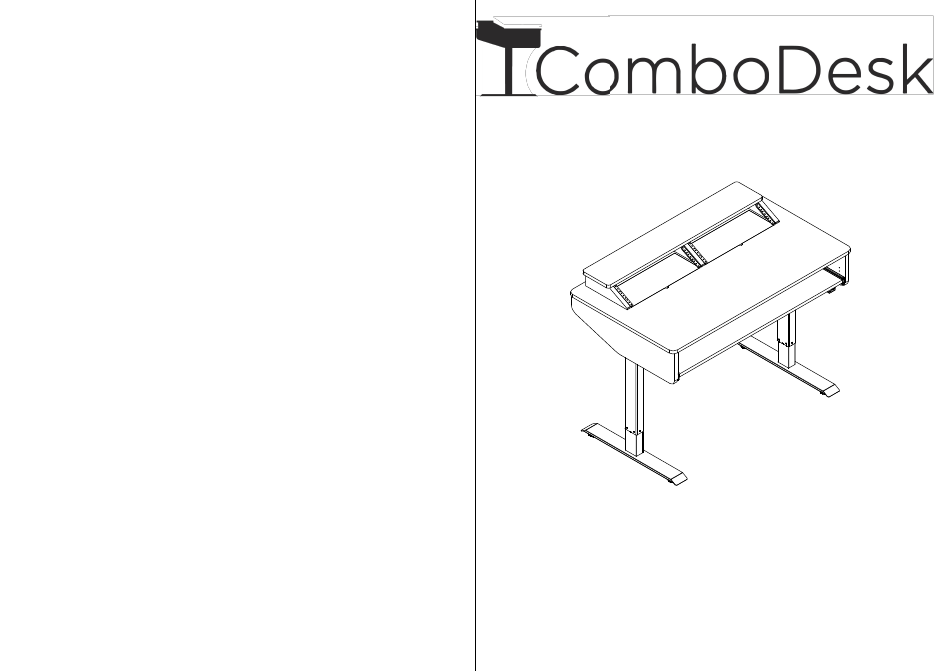

- Page 1 Combo 61 Sit Stand Assembly Manual...
- Page 2 Thanks for choosing a piece of furniture from Zaor. Before you can enjoy the use of it you need to build it. We tried to put all the explanations necessary for a safe build, when in doubt please get in touch or check out our Youtube channel where we are putting more and more assembly videos to help you with this important task.
- Page 3 How to disassemble the slider (L) How to disassemble the slider (R) Right Left Slider 2 (R) Slider 1 (R) Slider 1 (L) Slider 2 (L)
- Page 4 STEP 1 Type W Plastic Insert Slider 1 (R) / (L) Type S2 Type S3 Slider 2 (R+L) 90 mm l min 540 110 mm l max 1040 130 mm 150 mm...
- Page 5 STEP 2 STEP 4 Use screws Type F (Legs Box) ST4.2 STEP 3...
- Page 6 STEP 5 STEP 6 Use screws Type E Fix Rack Rail with screws Type RS STEP 7...
- Page 7 STEP 9 STEP 8 Use screws Type A Use screws Type E Handset Use screws Type D Use screws Type S2 Control Box STEP 10 Adapter Adaptor holder Step 7 Legs Manual Connect all cables to the adaptor...
-
Page 8: Packing List
If you don't need the rack units don't fix the rack rails and use the PACKING LIST: pieces number 11 to close the holes Type Type Type Assembly Kits m6x30 m6x100 Wooden dowels Type Type Type Type Euro Screws Plastic insert Rack rail screws Rack units screws Type...
