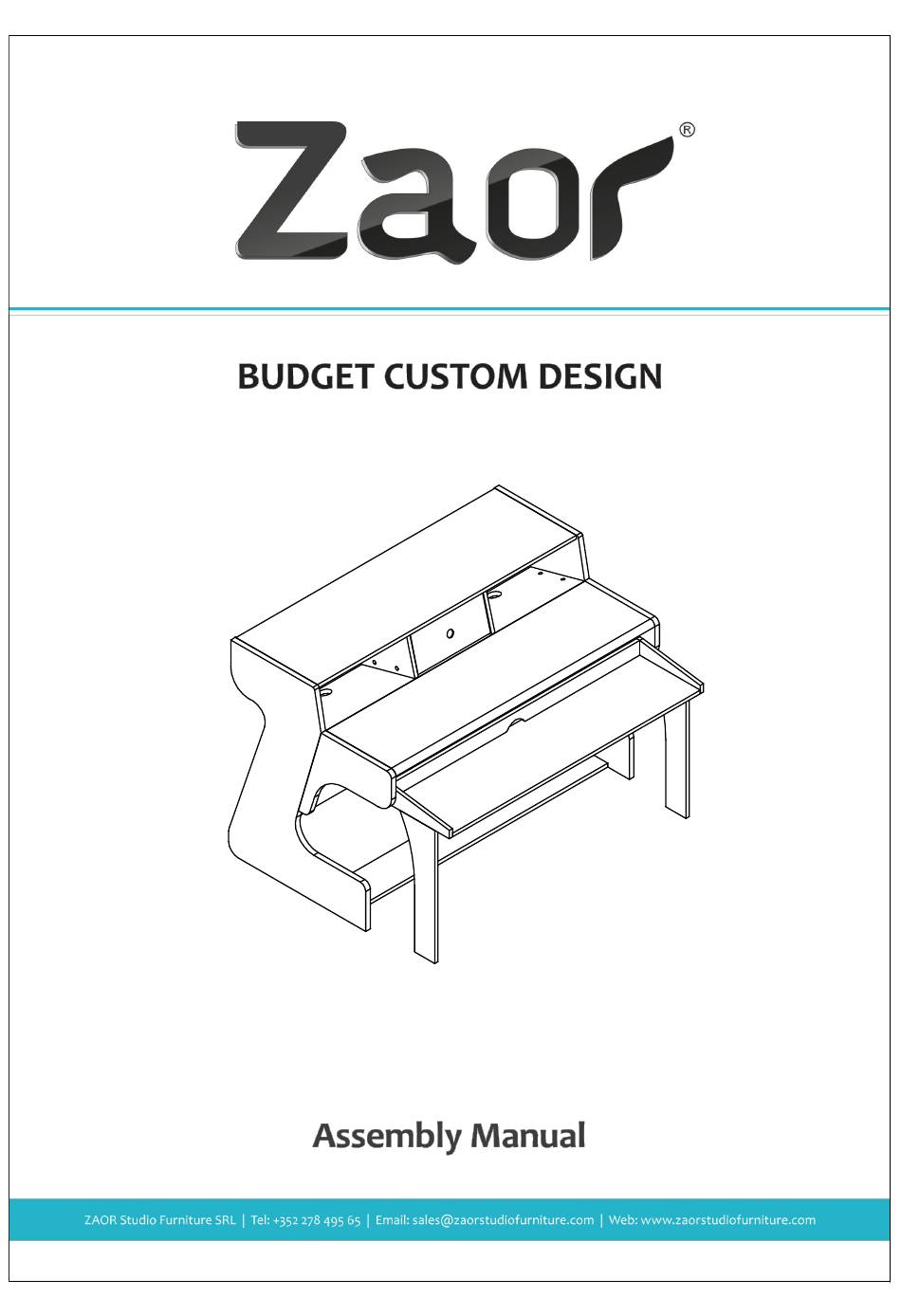

- Page 1 Miza 88...
- Page 3 Part Part n° 2 Part Part Part keyboard Floor cross bar Back stabilising crossbar drawer module Desk top Rack bottom Part Part Part Part Part top bridge Dividers (2pcs) Cable tray Left side part Right side part...
- Page 4 STEP 1 Lay part n° 5 flat on th ground, introduce system bolts and STEP 2 attach parts n° 6. Tighten with extenders (see page 2). Be careful to After introducing bolts, lower down top part n° 7 onto dividers have the pre-mounted drawer rails on the inside of the dividers! n°6, and tighten with excenters to assemble first module.
- Page 5 STEP 5 STEP 6 Repeat the same as Join 3b with 3 using assembly kits 8 and 2. After assembling the keyboard module, make sure it is kept in its STEP 7 vertical position, avoiding any oscillation until step 8 is Lower down the keyboard module assembled in step 6and attach completed.
- Page 6 STEP 9 STEP 8 Afterwards put bolts in part n 10 and carefully align all holes with drawer from the top down. During this phase avoid jamming the drawer and bolts, lower down and tighten with excenters. never use force . You are done - Enjoy! When fully extracting the drawer, use the fold down legs to stabilise.
