Communication Ports

The RUGGEDCOM RSL910 can be equipped with various types of communication
ports to enhance its abilities and performance.
1
2
1
2
3

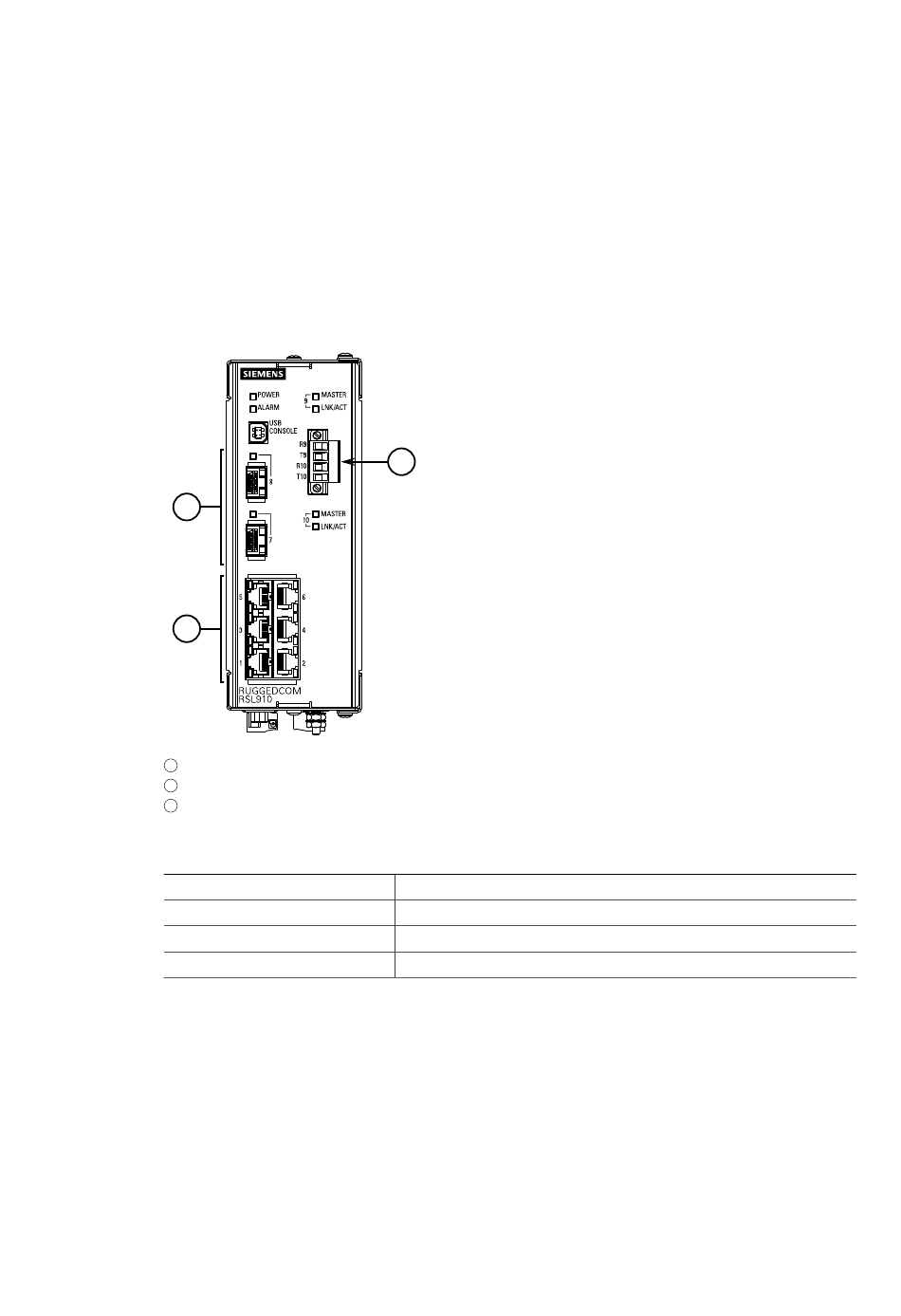

Figure 4.1
4.1

Copper Ethernet Ports

The RUGGEDCOM RSL910 supports multiple 10/100Base-TX Ethernet ports that allow
connection to standard Category 5 (CAT-5) shielded or unshielded twisted-pair cables
with RJ45 male connectors.
RUGGEDCOM RSL910
Installation Manual, 02/2020, C79000-G8976-1305-09
Ports 7 and 8
Ports 1 to 6
Port 9 and 10
Port Assignment
Port
1 to 6
7 and 8
9 and 10
3
Copper Ethernet Ports (10/100Base-TX)
SFP Transceivers (1000Base-TX/BX/FX/SX/LX)
Universal EoVDSL Ports
