Accelerometer Development Board
LFSTBEB7361 Quick Start Guide
Unpack the board.
STEP
1
Verify package contents
according to the kit Web
site:
www.freescale.com/
sensortoolbox
Assemble the hardware by connecting
a development board to the interface
board. This board is intended for use
with an Accelerometer Interface Board,
purchased separately. More information
can be found on the Web site.
At
www.freescale.com/
STEP
2
sensortoolbox
the latest software version by
clicking the link.
All Sensor Toolbox kits use the same
software and driver, so the install only
needs to be done once. Follow the
on-screen instructions to install the
communication driver for the tool. Check
back occasionally for software updates.
STEP
3
power switch. Run the Sensor
Toolbox link on your desktop.
Explore other compatible kits at
www.freescale.com/sensortoolbox
download
SENSOR TOOLBOX
Plug in the USB and turn
the board on using the
Advertisement
Related Manuals for NXP Semiconductors LFSTBEB7361
Summary of Contents for NXP Semiconductors LFSTBEB7361
- Page 1 SENSOR TOOLBOX Accelerometer Development Board LFSTBEB7361 Quick Start Guide Unpack the board. Plug in the USB and turn STEP STEP Verify package contents the board on using the according to the kit Web power switch. Run the Sensor site: www.freescale.com/ Toolbox link on your desktop.

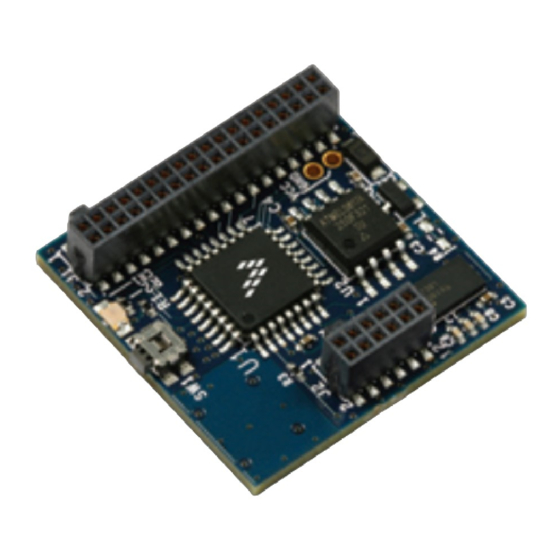

- Page 2 SENSOR TOOLBOX Accelerometer Development Board Get to know the LFSTBEB7361 board Freescale MMA7361L 3 x 5 x 1 mm LGA Power LED Reset Switch Freescale MC9S08QE8CWL Learn more at www.freescale.com/sensortoolbox. Freescale and the Freescale logo are trademarks or registered trademarks of Freescale Semiconductor, Inc. in the U.S. and other countries.
