Logik L15ORW10 Instruction Manual page 2

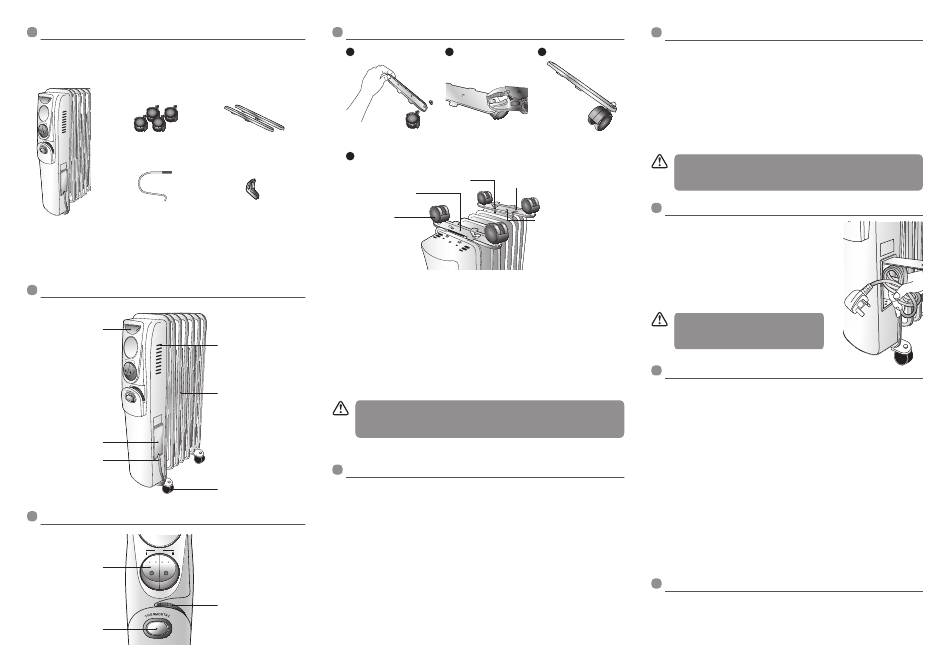

UNPACKING
Remove all packaging from the unit. Retain the packaging. If you dispose of it,
please do so according to any local regulations.
The following items are included:
Wheels x 4
"U" shaped screws x 2
The Main Unit
If items are missing or damaged, please contact Partmaster (UK only).
Tel: 0844 800 3456 for assistance.
PRODUCT OVERVIEW
Carry Handle
Mains Cable Holder
Mains Cable
CONTROL PANEL
ON
Power Switch (I/II)
(with indicator)
OFF
Display Window
GB-1
ASSEMBLY
1
Supporting Plates x 2
4
In between the 1
& 2 nd radiator fins
Butterfly nuts x 2
Wheels
Do not plug your radiator into a mains socket, while you are assembling the product.
1. Install the 4 wheels onto the 2 supporting plates by using a spanner.
2. Turn the unit upside down.
3. Wrap the "U" shaped screw in between the 1st and 2nd radiator fins.
Vent
4. Hook the wheels and supporting plate into the screws.
5. Insert the butterfly nut and screw it tightly on.
6. Repeat step 3-5 in between the 6th and 7th radiator fins.
7. Check the wheels have not become loose before each use.
Radiator Fins
It is hazardous if you turn on the radiator when it is upside down.
Before use, remember to double check that the radiator is standing
upright on a firm and level surface.
OPERATION
1. Position the radiator upright on the floor away from curtains, furniture or
Front Wheel
wallcoverings before plugging into the mains socket.
2. Turn the Power Switches to the "I" or "II" position.
The radiator has 2 built-in heating elements. You can select turning on one or
both heating elements simultaneously.
3. Turn the Thermostat Control to the desired position. It is recommended to
select the highest setting to get the heater to pre-heat. It will take 5-10 minutes
for the heater to fully heat up.
4. When the room reaches the desired temperature, turn the Thermostat Control
slowly anti-clockwise until the indicator goes off with a "click" sound.
The heater will temporarily go off.
Thermostat Control
5. If the room temperature falls below the desired temperature, the heater and
indicator will turn on again until the room temperature reaches the desired
temperature.
2 3
Supporting plate
Butterfly nut
"U" shaped screw
st
In between the 6
& 7 th radiator fins
GB-2
SAFETY PROTECTIVE DEVICES
1. Overheat Protection System
The power to the radiator will automatically cut off if the temperature
of the radiator exceeds a certain limit. In the event of overheating, the radiator
will stop operating. Switch the radiator off and allow it to completely cool.
The radiator will then operate again as normal.
2. Tip-over Protective Switch
When you use the radiator in an upright position on a firm and level surface,
the tip-over protect switch will be on. In the event the radiator is knocked
over, the radiator will stop functioning automatically.
Do not override the Tip-over Protective Switch as this may cause
a hazard. Using the unit on a deep pile carpet may activate the
tip-over protective switch.
CLEANING & STORAGE
th
1. Always remove the mains plug from the mains
socket and allow the radiator to cool down
before cleaning the radiator.
2. Wipe the radiator with a soft damp (not wet)
cloth.
3. Coil up the mains cable and place it in the
mains cable holder. Store the radiator in
a clean dry place.
Do not immerse the radiator in water.
Do not use any cleaning chemicals
such as detergents and abrasives.
HINTS & TIPS
My radiator does not work when I turn it on
1. Check that your radiator is plugged in and the power is turned on at the
mains socket.
2. Set the temperature to the highest setting.
3. Check if the thermostat setting is too low.
4. Try replacing the BSI or ASTS approved 13 Amp BS1362 fuse in the plug.
5. If the radiator still doesn't work, do not try to repair the radiator yourself.
If your radiator's power is automatically cut off follow the steps below:
1. Unplug your radiator and allow it to cool down.
2. Inspect your radiator.
3. Plug-in the radiator and switch it on again. If it cuts off again, move the
radiator to a better ventilated location.
4. If there is any sign of physical damage (e.g. melting, or burning of the
case), do not attempt to use your radiator. Please leave all maintenance
work to qualified personnel.
SPECIFICATIONS
Power supply : 230V~ 50Hz
Power Consumption : 1500W
No. of Fins : 7
Specifications and features may change without prior notice.
GB-3
