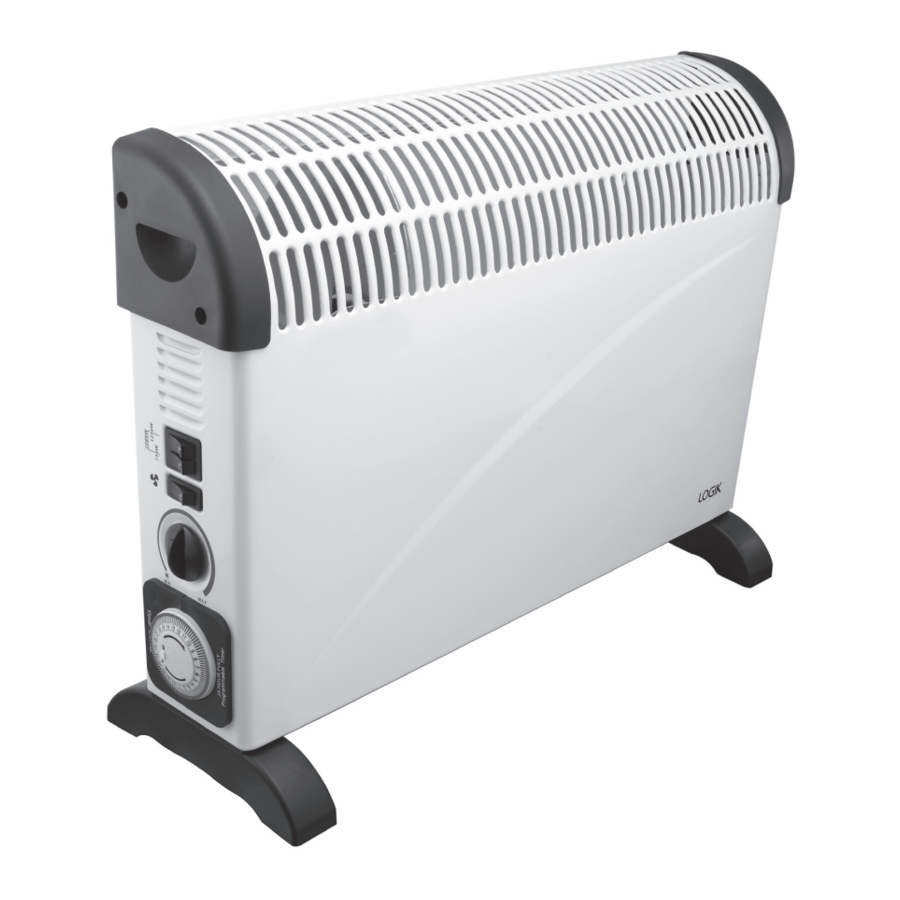

Logik L20CHW10 - Convector Heater Manual

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.
The following items are included:

• If items are missing or damaged, please contact Partmaster (UK only).
• Tel: 0344 800 3456 for assistance.

Product Overview

Control Panel

Assembly

Before using the heater, the feet (supplied) must be fitted to the unit. Attach the feet to the base of the heater using the 4 self-tapping screws provided, taking care to ensure that they are located correctly in the bottom ends of the heaters side mouldings.

Operation

Position the heater upright on the floor away from curtains, furniture or wall coverings before plugging your heater into the mains socket.

• Press the Power Switches to the "750W" or "1250W" position.
  The heater has 2 built-in heating elements. You can select one or both heating elements simultaneously.
• Turn the Thermostat Control to the desired position. It is recommended to select the "MAX" position to get the heater to pre-heat. It will take 5-10 minutes for the heater to fully heat up.
• When the room reaches the desired temperature, turn the Thermostat Control slowly anticlockwise until the indicator goes off with a "click" sound. The heater will temporarily go off.
• If the room temperature falls below the desired temperature, the heater and indicator will turn on again until the room temperature reaches the desired temperature.

It is normal for the heater to emit some smell and fumes when it is turned on for the first time or when turned on after not being used for a long period of time. This smell will disappear when the heater has been turned on for a short while.

Fan Operation

The Fan can be switched on independently of the heating elements. Switch on the Fan Switch. The heater will blow cool air out from the air outlet.
The heater or the fan will not operate by turning the Power Control when the thermostat setting is too low.

Timer Operation

This heater is fitted with a 24-hour timer, which has 96 segments around its circumference. Each segment is equivalent to 15 minutes of time. You may preset the time and duration of the 24hour period(s) as per your preference in any 24-hour period.

1. Turn the Timer Control and set it to the current time. e.g. The figure below shows the current time is 10:30 a.m.

2. Select your preferred segments, and pull them outward for heater ON time and inward for heater OFF time.
3. Push the Slide Switch from Timer OFF " " position to Timer ON " " position to start. The timer will start and the Timer Control will turn automatically. Select your preferred power and thermostat setting.

Once the timer's pointer reaches the heater ON time of the selected segments, it will switch the heater on. The unit will turn off at the end of the selected segments.

Cleaning

Your heater should be cleaned regularly to prevent dirt and dust from building up which will affect its performance. Ensure the air inlet and the air outlet are not blocked. This can be done with a vacuum cleaner, using the brush attachment.
Ensure you unplug your heater from the mains socket and wait for the heater to cool down completely before cleaning.

Safety Protective Devices

The power to the heater will automatically cut off if the temperature of the heater exceeds a certain limit. In the event of overheating, the heater will stop operating. Switch the heater off and allow it to completely cool. The heater will then resume operating as normal.

Hints & Tips

My heater does not work when I turn it on

• Check that your heater is plugged in and the power is turned on at the mains socket.
• Check that your heater is in an upright position.
• Check if the thermostat setting is too low.
• Check if you have set a timer.
• Try replacing the BSI or ASTS approved 13 Amp BS1362 fuse in the plug.
• If the heater still doesn't work, do not try to repair the heater yourself.

If your heater's power is automatically cut off follow the steps below:

1. Unplug your heater and allow it to cool down.
2. Inspect your heater. Clean the air inlet and the air outlet with a vacuum cleaner if necessary. If there is any sign of physical damage (e.g. melting, or burning of the case), do not attempt to use your heater. Please leave all maintenance work to qualified personnel.
3. Plug-in the heater and switch it on again. If it cuts off again, move the heater to a better ventilated location.

Specifications

Features and specifications are subject to change without prior notice.

For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 5611234.
